Sunswell Machinery Co., Ltd.
Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.
| Place of Origin: | China |
|---|---|
| Brand Name: | Sunswell |
| Certification: | CE, ISO, SGS, UL |
| Model Number: | YDGF40-8 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Seaworthy Wooden Case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 sets per year |
| Packaging Type:: | Cans | Driven Type:: | Electric |
|---|---|---|---|
| Voltage:: | 220V/380V | Weight:: | 300kg |
| Certification:: | CE,ISO,SGS | Keywords:: | Aluminum Can Filling Machine |
| High Light: | aluminum can machine,can filling machines |
||

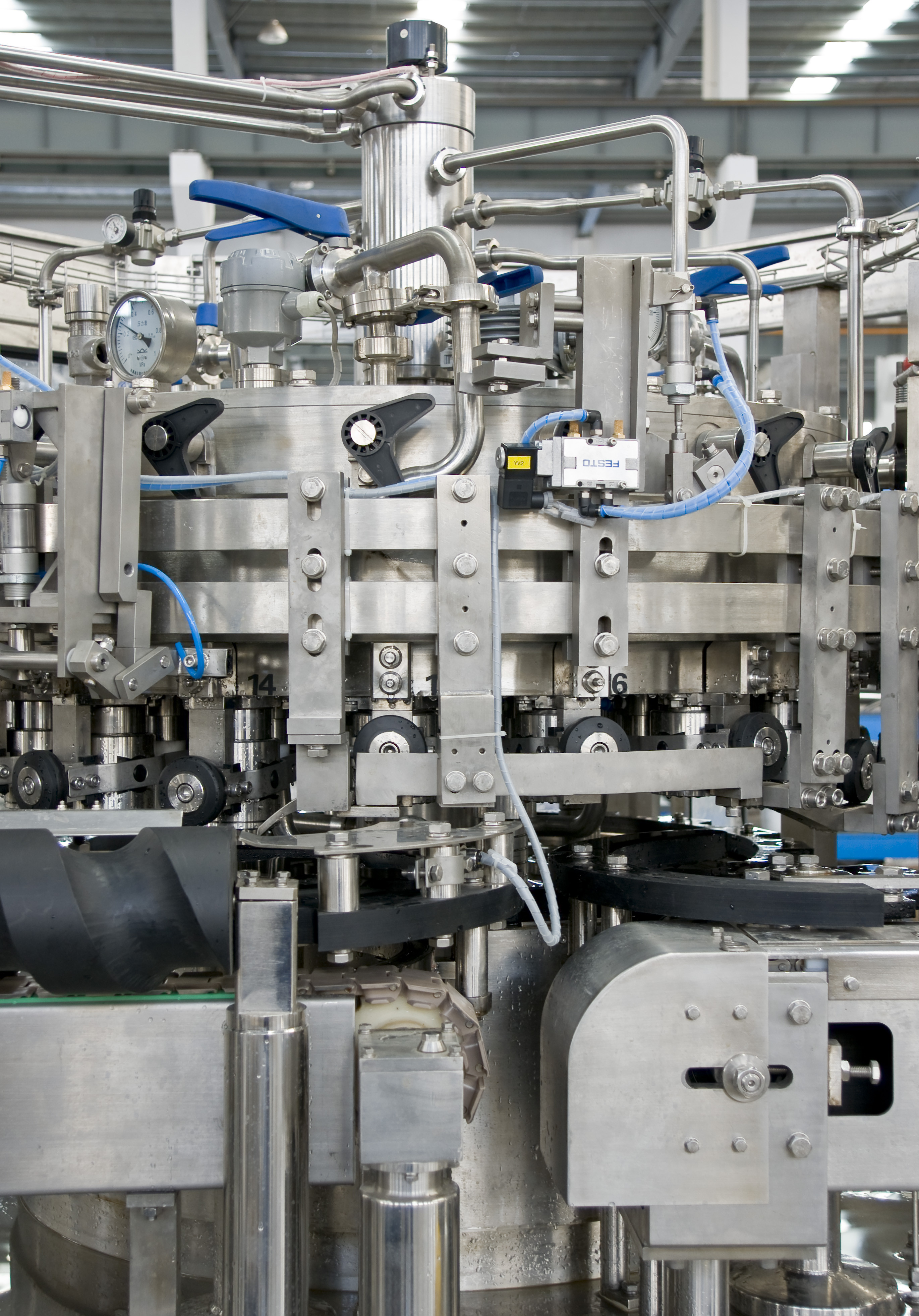

can filling line and seaming carbonated beverage beer, CSD 40 heads Aluminum Can Filling Machine
It is suitable for filling and seaming carbonated beverage such as beer, CSD, etc. It is equipped the advanced device, electrical equipment, and pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, seaming reliably, frequency conversion timing, less material loss. It is the preferred equipment for the medium beer and beverage plant.
Main components of the can filling line are rinsing, filling-seaming monoblock, tunnel sterilizing machine and conveying system. The key machine is filling and seaming monoblock which synchronizes with filling machine. The liquid level is stable and the oxygen content is decreased. Through a few simple adjustments, it could handle different cans. The special structure sealing roller could be adjusted according to can’s size.
As the can is easy to get deformed, soft treatment is needed in the transferring process. The conveying system regulates the transferring speed according to the each machine’s working condition to assure no can falling or crashing occurs.
Applications:
Soda water, juice, tea, energy drinks, beer, carbonated drinks, beer, etc. in aluminum can, pop can and PET can
Specifications:
|
Model |
YDGF40-8 |
|
Filling heads |
40 |
|
Seaming heads |
8 |
|
Capability |
24,000BPH(330ml) |
|
Can height |
90-170mm |
|
Can diameter |
φ50-80mm |
|
Motor power |
10KW |
|
Outline |
6500×2700×2450mm |
|
Weight |
7000kg |
Competitive Advantage:
Features
Wholly sealed widow structure which is beautiful, concise, easy and highly operated;
Cycling tank design with precision polishing inside;
High precision and large flow rate filling valves to meet productive requirement;

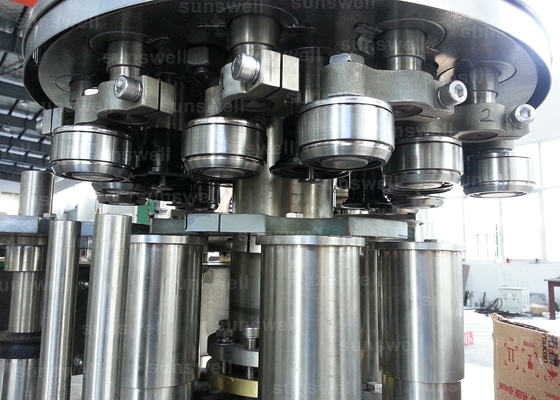

Specially designed roller structure which is easy to be adjusted, locked and ensure sealing function;
Friendly and convenient operating panel with high expansibility.
Working Procedure
Cans will be pushed into can holding platform one by one by feeding screw and star-wheel. Centering cup of filling valve will fall to can; the distance between filling valves and cans is sealed by springiness plastic ring. The movement of centering cup is generated by plastic idler wheel along curvilinear motion. After filled, valve will be closed, air is discharged, and centering cup will rise from the can. Filled can will be sent to conveyor chain, then to seamer. Seamer will take lid, turn over the edge of can and turn the edge to finish the sealing action by the control of cam. After that can will be transferred to conveying system.
Equipment structure
Main Specification
