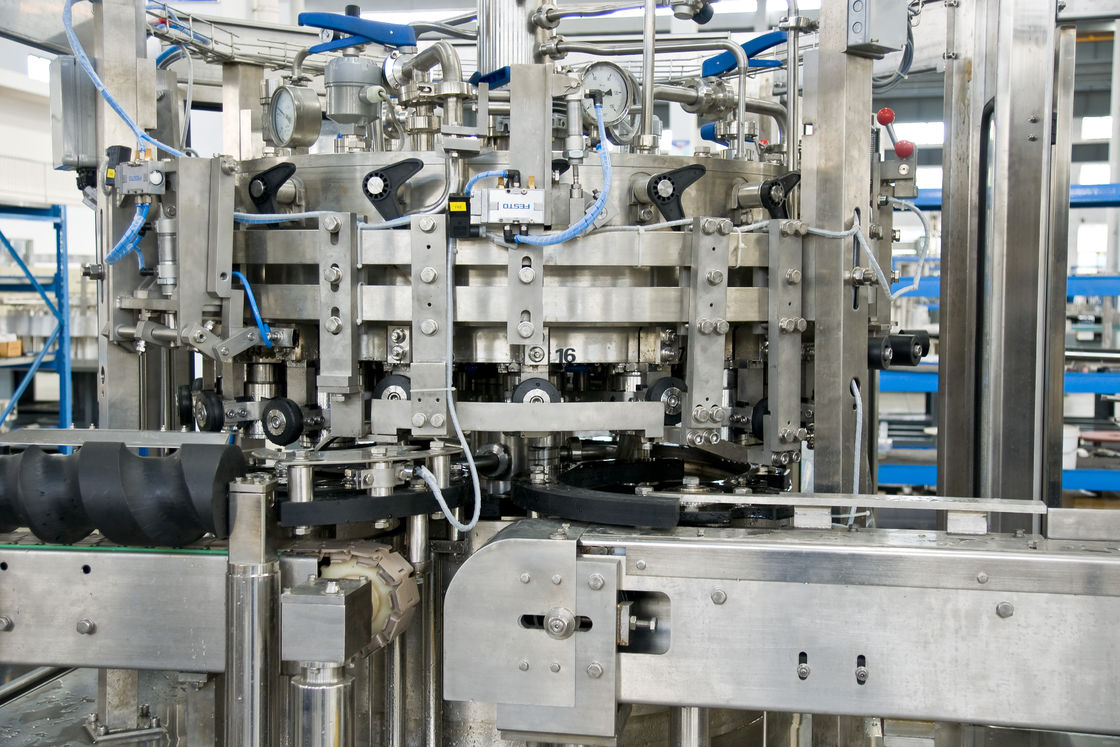

Soda Water, Juice Aluminum Can automatic rotary Filling machine and can seaming machine

Soda Water, Juice Aluminum Can automatic rotary Filling machine and can seaming machine

    • Soda Water, Juice Aluminum Can automatic rotary Filling machine and can seaming machine
    • Soda Water, Juice Aluminum Can automatic rotary Filling machine and can seaming machine
    • Soda Water, Juice Aluminum Can automatic rotary Filling machine and can seaming machine
  • Soda Water, Juice Aluminum Can automatic rotary Filling machine and can seaming machine

    Product Details:

    Place of Origin: China
    Brand Name: Sunswell
    Certification: CE, ISO, SGS, UL
    Model Number: YDGF12-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 100 sets per year
    Contact Now
    Detailed Product Description
    Driven Type:: Electric Voltage:: 220v
    Power:: 5.5KW Weight:: 1000kg
    Packaging Type:: Bottles Material:: Ss304
    Color:: Sliver

    Soda Water, Juice Aluminum Can automatic rotary Filling machine and can seaming machine



    Specifications:

    Model

    YDGF12-1

    Filling heads

    12

    Seaming heads

    1

    Capability

    2,000BPH (330ml)

    Can height

    90-170mm

    Can diameter

    φ50-80mm

    Motor power

    1.75KW

    Outline

    2000×900×1700mm

    Weight

    1300kg



    Description:

    The line is composed of separate automatic rotary Filling machine and can seaming machine.

    This production line is suitable for the production of all kinds of carbonated drinks contained in aluminum 2-piece pop-top can, such as cola, aerated Water, soda water, etc, It is an ideal machine for small-and medium-sized beverage factories.



    Applications:

    Soda water, juice, tea, energy drinks, beer, carbonated drinks, beer, etc. in aluminum can, pop can and PET can



    Competitive Advantage:

    Features

    Wholly sealed widow structure which is beautiful, concise, easy and highly operated;
    Cycling tank design with precision polishing inside;
    High precision and large flow rate filling valves to meet productive requirement;
    Specially designed roller structure which is easy to be adjusted, locked and ensure sealing function;
    Friendly and convenient operating panel with high expansibility.



    Working Procedure
    Cans will be pushed into can holding platform one by one by feeding screw and star-wheel. Centering cup of filling valve will fall to can; the distance between filling valves and cans is sealed by springiness plastic ring. The movement of centering cup is generated by plastic idler wheel along curvilinear motion. After filled, valve will be closed, air is discharged, and centering cup will rise from the can. Filled can will be sent to conveyor chain, then to seamer. Seamer will take lid, turn over the edge of can and turn the edge to finish the sealing action by the control of cam. After that can will be transferred to conveying system.



    Equipment structure

    • Rack
    • Rotary filler
    • Rotary seamer
    • Aluminum infeed and outfeed system
    • Control


    Main Specification

    • PLC program controller: Mitsubishi
    • Inverter: Mitsubishi
    • Photoelectrical controller: Omron
    • Proximity switch: Omron
    • Other electrical components: Schneider
    • Pneumatic component: Airtac
    • Main motor: Siemens
    • Bearing: Harbin



    Soda Water, Juice Aluminum Can automatic rotary Filling machine and can seaming machine
