Home ProductsAutomatic Blow Molding Machine

2 cavity Semi automatic Hot Filling Bottle Blow Molding Machine for PET bottle 50 - 2000ml

2 cavity Semi automatic Hot Filling Bottle Blow Molding Machine for PET bottle 50 - 2000ml

    • 2 cavity Semi automatic Hot Filling Bottle Blow Molding Machine for PET bottle 50 - 2000ml
    • 2 cavity Semi automatic Hot Filling Bottle Blow Molding Machine for PET bottle 50 - 2000ml
    • 2 cavity Semi automatic Hot Filling Bottle Blow Molding Machine for PET bottle 50 - 2000ml
    • 2 cavity Semi automatic Hot Filling Bottle Blow Molding Machine for PET bottle 50 - 2000ml
    • 2 cavity Semi automatic Hot Filling Bottle Blow Molding Machine for PET bottle 50 - 2000ml
    • 2 cavity Semi automatic Hot Filling Bottle Blow Molding Machine for PET bottle 50 - 2000ml
  • 2 cavity Semi automatic Hot Filling Bottle Blow Molding Machine for PET bottle 50 - 2000ml

    Product Details:

    Place of Origin: China
    Brand Name: Sunswell
    Certification: CE, ISO, SGS, UL
    Model Number: SSW-H-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 100 sets per year
    Contact Now
    Detailed Product Description

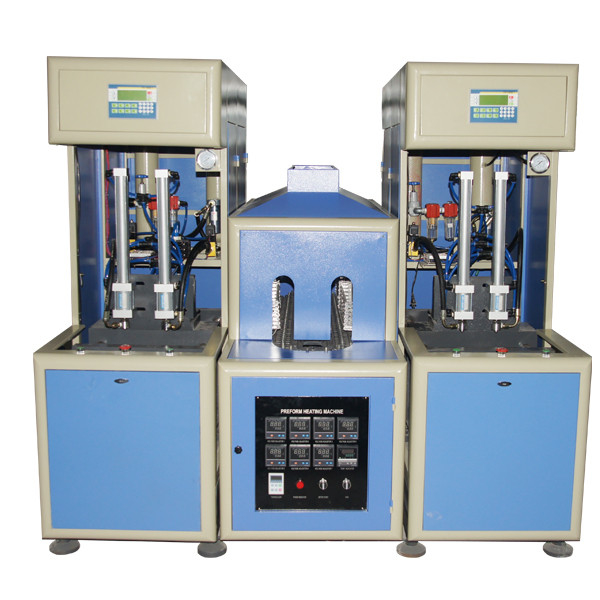

    2 cavity Semi automatic Hot Filling Bottle Blow Molding Machine for PET bottle 50 - 2000ml



    Specifications:

    Max. volume of molded product

    2000ml

    Max. product capacity

    300-500CS/H

    Max. Heating power

    20kw

    Pressure of air supply

    2.5mpa

    Max.mould dimension

    20*35*38cm

    Max.shifting mould dimension

    17cm

    Center distance between two bottles

    min9cm    max20cm

    Max.stretched length

    35cm

    Weight

    1200kg

    Size Main machinine

    160*60*161cm

    Oven

    187*63*145cm



    Description:

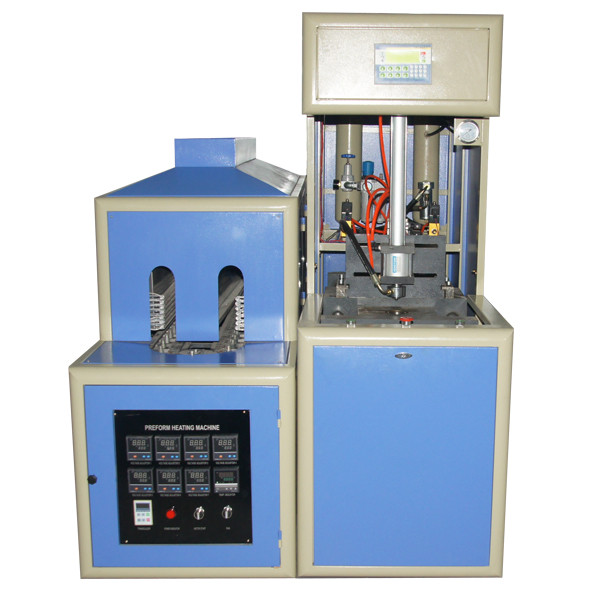

    SSW-H-I heat resistant bottle blow molding machine is suitable for producing PET plastic containers and bottles from 50-2000ml. It is widely used to produce the carbonated bottle, mineral water pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally. The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles. The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine. The machine can be operated in the step-by-step mode and the semi-auto mode. The machine is small with low investment, easy and safe to operate maintenance.



    Applications:

    To make PET hot filling bottles for juice, tea, functional beverage, vitamin drinks and other liquid bottling.



    Features

    ● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.

    ● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
    ● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
    ● The machine can be operated in the step-by-step mode and the semi-auto mode.
    ● The machine is small with low investment, easy and safe to operate.
