8 KW Automatic Hot Melt Glue Wine Bottle, pet bottle Labeling Machine, Label machine

8 KW Automatic Hot Melt Glue Wine Bottle, pet bottle Labeling Machine, Label machine

    • 8 KW Automatic  Hot Melt Glue Wine Bottle, pet bottle Labeling Machine, Label machine
    • 8 KW Automatic  Hot Melt Glue Wine Bottle, pet bottle Labeling Machine, Label machine
  • 8 KW Automatic  Hot Melt Glue Wine Bottle, pet bottle Labeling Machine, Label machine

    Product Details:

    Place of Origin: China
    Brand Name: Sunswell
    Certification: CE, ISO, SGS, UL
    Model Number: SSW-4000A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Seaworthy Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 100 sets per year
    Contact Now
    Detailed Product Description
    Voltage: 220V/380V/Customized Automatic Grade: Automatic
    Condition: New Driven Type: Electric
    Type: Labeling Machine Packaging Type: Bottles,cans
    Application: Beverage Certification: CE/ISO9001

    8 KW Automatic  Hot Melt Glue Wine Bottle, pet bottle Labeling Machine, Label machine

    Description:

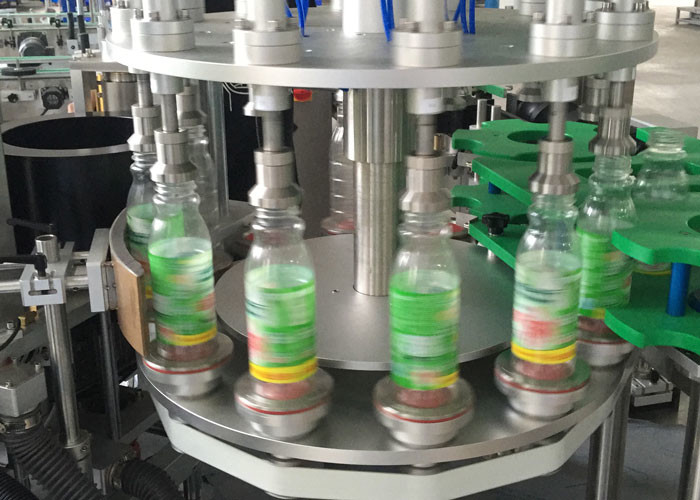

    SSW-4000A automatic hot melt glue labeling machine is specially designed for all kinds of round bottles. Labeling rod takes glue first and label box passes labels to the rod. After rotating, it vacuums labels onto vacuum belt and sticks labels onto bottles.

    Applications:

    • Food and Beverage (Sauces, Spread, Prepared meal, Snacks, Soft drinks, Fruit juices, Water, Alcoholic drinks, etc.)
    • Dairy (Milk-based drink, Yogurt drink, Yogurt Cup, Coffee creamer, Ice cream, etc.)
    • Nutrition product/Supplement (Baby food, Healthy foods, etc.)
    • Home care (Laundry, Fabric care, Detergent, Cleaning products, etc.)
    • Personal Care (Hair care, Soap and Bath products, Oral care, Skin care, Cosmetics, etc.)

    Features:

    • AC 3-Phase inverter and PLC controlled system.
    • Body is built with stainless steel, aluminum alloy and square steel tubes.
    • Structure of square welded tubes and steel beams ensure stable and smooth operations at high speed performance.
    • Centralized lubricating system for simple and effortless on maintenance, lubrication and clean.
    • With photo-sensors to detect label output and automatically self-regulated production speed for integrating production line with other machines.
    • Round plate type suction label, pasting label.
    • Include such mechanisms as label-providing, belt-conveying, label-cutting, wheels-attaching, vacuum-adsorbing, hot sol-conveyance
    • Emergency Stop Safety Device which disables the machine when senses an abnormality.
    • Automated tension control.
    • Automatic label proofread and Cutting System.
    • Automatic warning system and alarm will be activated when it is out of label.

    Specification:

    • PLC: Japan Mitsubishi FX2N-64MT
    • Servo motor: Taiwan Datle
    • Servo drive: Taiwan Datle
    • Encoder:Japan Sanyo
    • Frequency converter: Japan Panasonic
    • Sensor: Japan KEYNECE
    • Fan: Shanghai
    • Touch screen: Taiwan WEINVIEW
    • Cylinder: SMC
    • Melt rubber machine: Nordson

    8 KW Automatic  Hot Melt Glue Wine Bottle, pet bottle Labeling Machine, Label machine


    Specifications:

    Item

    Parameters

    Model

    SSW-4000A

    Conveyor belt

    2. meters included

    Bottle height

    According to sample

    Paper pipe interior span

    According to sample

    Main engine speed

    12000BPH

    Label height

    40-200mm

    Bottle diameter

    40-100mm

    Label wide

    25-400mm

    Label thickness

    0.04-0.05mm

    Use power supply

    AC 3ψ380V

    Consumed power

    8 KW

    Gross Weight

    1900Kg

    Dimension

    4500L*1600W*2000H (mm)
