Automatic Empty Beer Cans Depalletizer Aluminum Depalletizing Line Carbon Steel

Automatic Empty Beer Cans Depalletizer Aluminum Depalletizing Line Carbon Steel
Automatic Empty Beer Cans Depalletizer Aluminum Depalletizing Line Carbon Steel
Automatic Empty Beer Cans Depalletizer Aluminum Depalletizing Line Carbon Steel Automatic Empty Beer Cans Depalletizer Aluminum Depalletizing Line Carbon Steel Automatic Empty Beer Cans Depalletizer Aluminum Depalletizing Line Carbon Steel Automatic Empty Beer Cans Depalletizer Aluminum Depalletizing Line Carbon Steel Automatic Empty Beer Cans Depalletizer Aluminum Depalletizing Line Carbon Steel Automatic Empty Beer Cans Depalletizer Aluminum Depalletizing Line Carbon Steel Automatic Empty Beer Cans Depalletizer Aluminum Depalletizing Line Carbon Steel Automatic Empty Beer Cans Depalletizer Aluminum Depalletizing Line Carbon Steel Automatic Empty Beer Cans Depalletizer Aluminum Depalletizing Line Carbon Steel Automatic Empty Beer Cans Depalletizer Aluminum Depalletizing Line Carbon Steel
Basic Information
Place of Origin: Jiangsu,China
Brand Name: Sunswell
Certification: ISO,CE
Model Number: XD600
Minimum Order Quantity: 1 set
Price: USD 10000 per set
Packaging Details: 1.Seaworthy wooden cases plus wrapping film for Automatic carbonated beverage can filling machine/beer canning machine. 2. If fumigating certificate required, we can also provide the service.
Delivery Time: 75 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Get Best Price Contact Now
Dimension(L*W*H): L5800mm*W1350mm*H3700mm Weight: 3700 KG
Capacity: 36000CPH Feet Adjustable: +/-50mm
Platform: Carbon Steel Empty Pallet Stacker: Ten Pallets
Total Power: 2.05KW
Highlight:

Empty Beer Cans Depalletizer

,

Aluminum Depalletizing Line

,

Carbon steel Beer Cans Depalletizer

Automatic depalletizing line aluminum empty beer cans depalletizer

High lever bulk can depalletizer are mechanical machine that unload (depalletize) packaged empty cans or glass bottles from the pallet. The depalletizer allows the transfer of products and materials from pallets without the use of human personnel, saving thus time, money and effort.

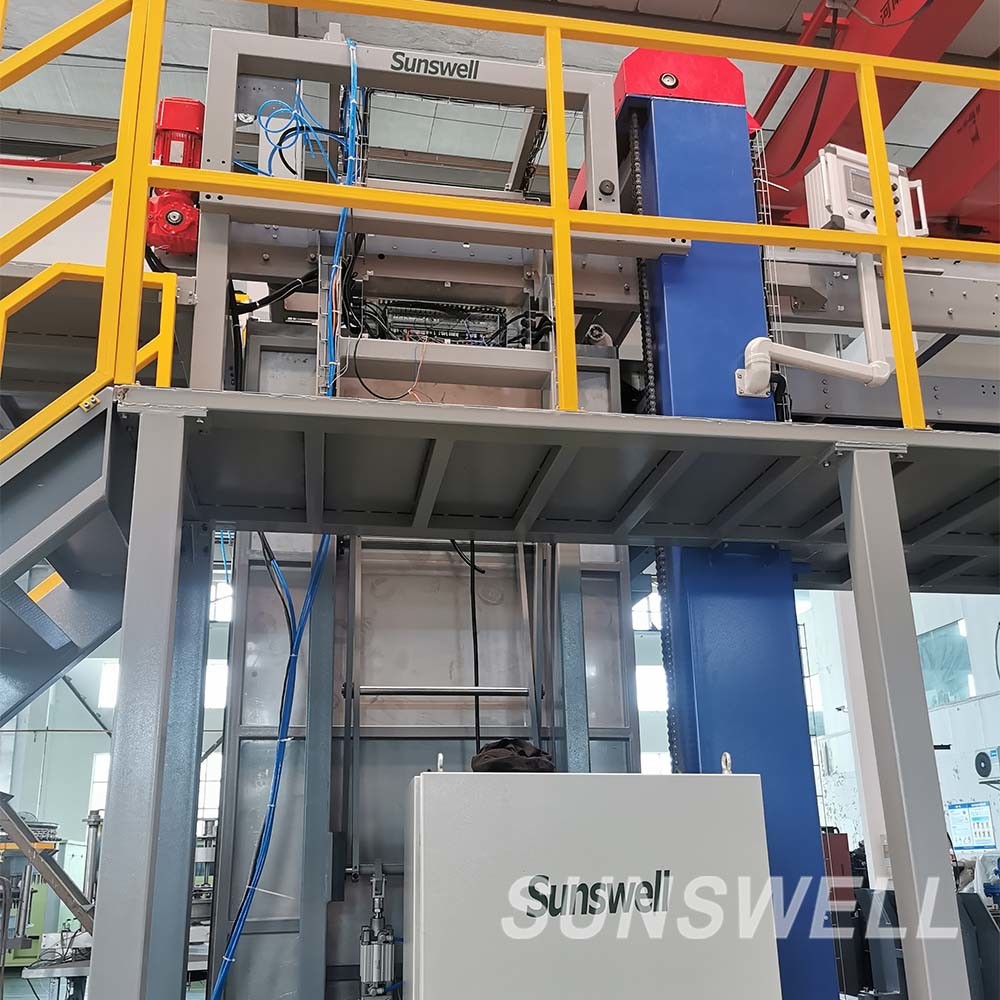

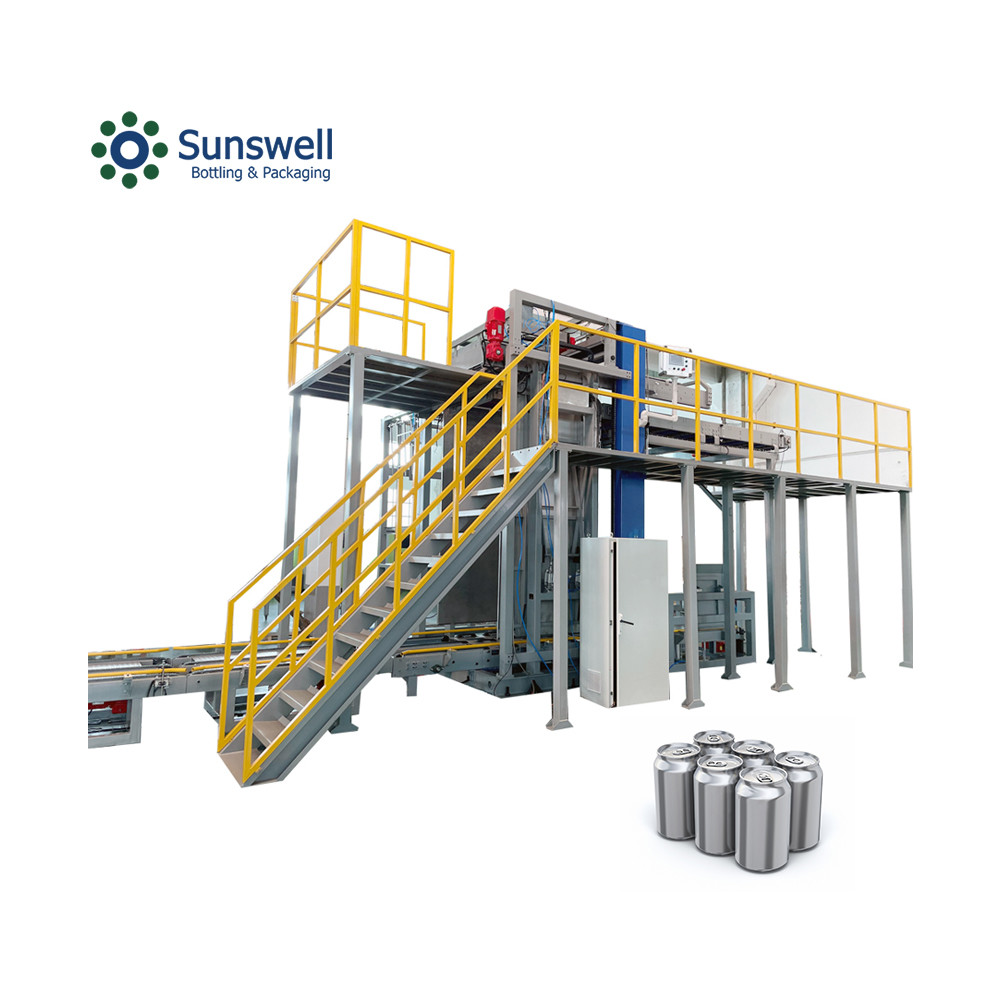

Automatic Empty Beer Cans Depalletizer Aluminum Depalletizing Line Carbon Steel 0

Advantages

High performing Reliable Flexible (in terms of container, format and pallet) Quick and easy format changeover Completely automated Fully customizable High operator safety standards

Appliance scope

For various metal cans, glass bottles, plastic bottles for layered depalletizing.

Depalletizer workflow and principles

Forklift put the whole stack cans/ bottles into unstacking station (hydraulic lift table) Chain lifter will transit the packed pallet to the upper most of the depalletizer. Four sides clamps will hold the uppermost whole layer cans or bottles from four sides, moving in parallel to the outlet multi lane conveyor. Four sides camps open to release whole layer cans or bottles to the multi lane conveyor. Then the four sides cylinder clamps will back to original position. Pneumatic absorb hands will absorb the next layer top side isolate pad, move the pad to pad collector. Chain lifter, hold the board rise to a certain height crib.. Do the same procedure until the last layer, Hydraulic lifts pallet fell to bottom, then transit to empty pallets stacker. Forklift remove the empty pallet. Repeat above actions.

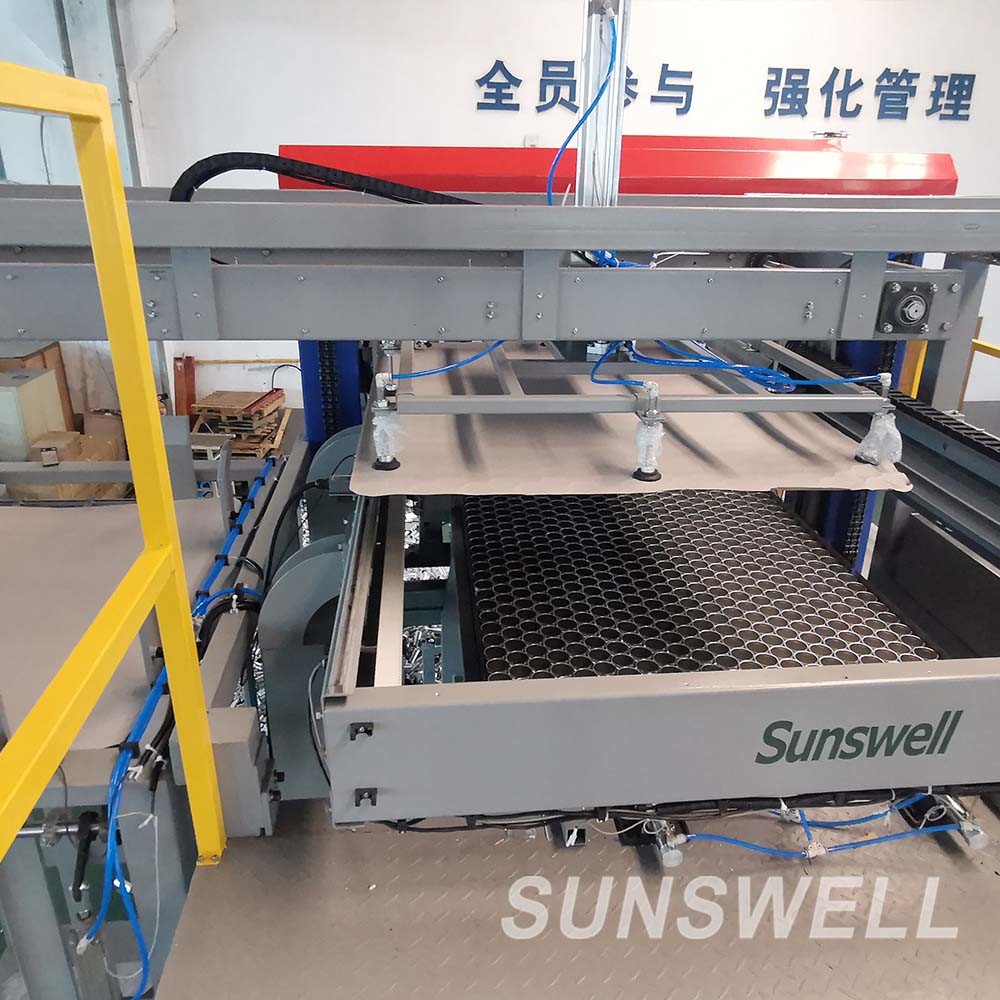

Automatic Empty Beer Cans Depalletizer Aluminum Depalletizing Line Carbon Steel 1      Automatic Empty Beer Cans Depalletizer Aluminum Depalletizing Line Carbon Steel 2Automatic Empty Beer Cans Depalletizer Aluminum Depalletizing Line Carbon Steel 3      Automatic Empty Beer Cans Depalletizer Aluminum Depalletizing Line Carbon Steel 4



Specifications

PLC Siemens/Mitsubishi/Schneider/Delta
Motor SEW/ABB/Siemens/Tongyu/Nord/Weg/Jie
Pneumatic control Airtac/Festo/SMC
Low volts component Schneider/Siemens/Chintai/Delixi



Technical Parameters

Model XD600 Capacity: 36000CPH (330ml)
Feet adjustable +/-50mm
Platform carbon steel
Conveyor height 3100mm
Pallet height 2800mm
Workshop height 4500mm
Empty pallet stacker ten pallets
Pallet size 1420mm*W1120mm*H150mm (customized)
Overall dimension L5800mm*W1350mm*H3700mm
Weight 3700kg

Power

Power supply 380V, 50Hz, 3PH
Total power 2.05kw
Main motor 0.75kw
Can conveyor motor 1 0.75kw
Can conveyor motor 2 0.75kw
