China Beverage Filling Machine manufacturer

Sunswell Machinery Co., Ltd.

Bottling machines for water, juice, carbonated drinks, milk and oil with 12 years of global market experience and more than 50 countries presence.

English
Request A Quote
Products

380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price

380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price
380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price
380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price 380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price 380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price 380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price 380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price 380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price 380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price 380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price 380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price 380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price 380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price 380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price 380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price 380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price 380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price 380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price
Basic Information
Place of Origin: China
Brand Name: Sunswell
Certification: ISO,CE
Model Number: 5L 10L bottle rinser/filler/capper tribloc filling machine
Minimum Order Quantity: 1 Set
Price: USD 18000 per Set
Packaging Details: seaworthy wooden case
Delivery Time: 45 days
Payment Terms: L/C
Supply Ability: 50 Set/Sets per Month
Get Best Price Contact Now
Packaging Type: CANS, Bottles, Barrel Voltage: 380v/3PH/50Hz Customized
Weight: 3500 KG Key Selling Points: Long Service Life
Filling Material: Water Machinery Test Report: Provided
Warranty Of Core Components: 2 Years Barrel Size (mm): Big Bottle Machine
Applicable Industries: Food & Beverage Factory Application: Beverage
Packaging Material: Wood Driven Type: Pneumatic
Dimension(L*W*H): 3550*1200*1800 Warranty: 1 Year
Machinery Capacity: 12000BPH Core Components: Motor, Pressure Vessel, PLC
Material: SS 304
Highlight:

380V High Speed Filling Machine

,

Pure Water High Speed Filling Machine

,

5L Pure Water Filling Machine

Products Description

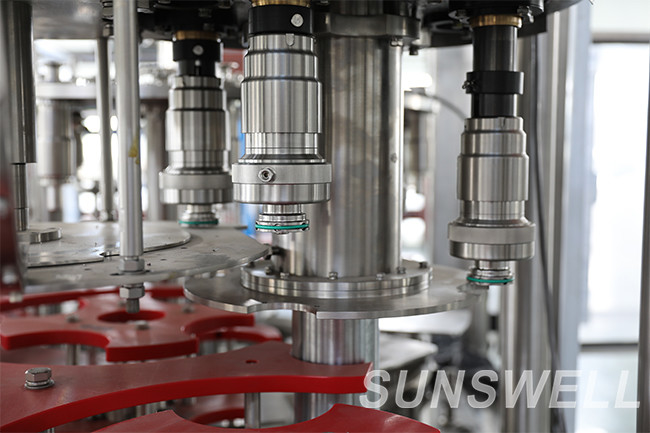

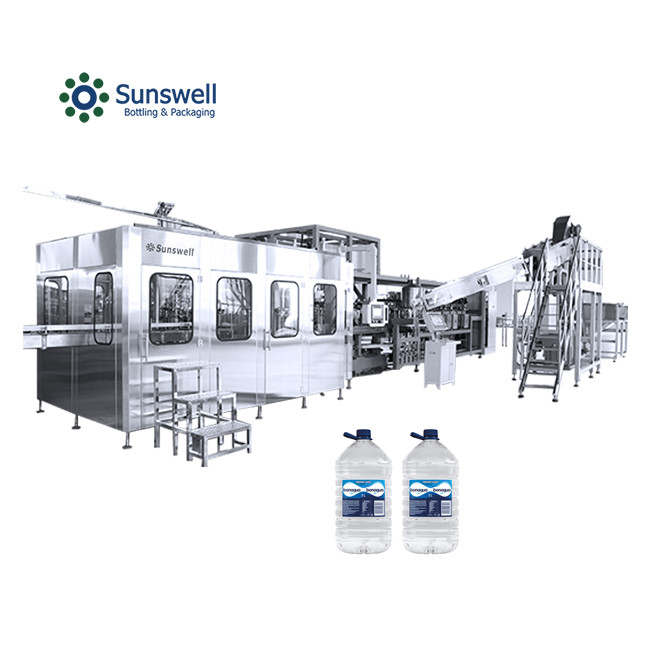

The machine is used for 3 gallon & 5 gallon water filling, which is composed of washer, filling and capper.
1. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
2. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
3. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
4. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
5. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows Automatic 5 gallon bottle washing machine.
380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price 0
380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price 1
380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price 2
Details Images

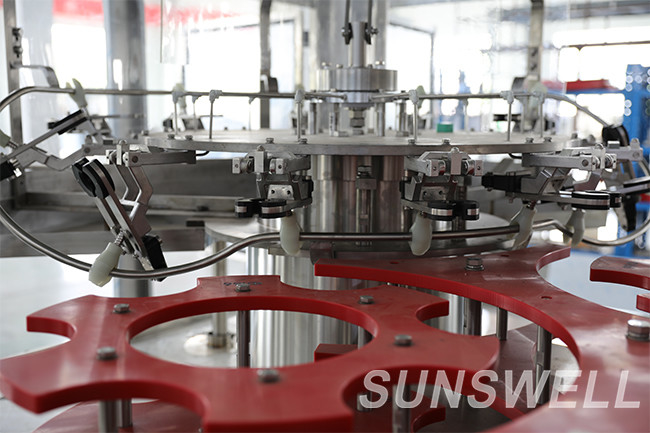

Cap Decapper

This model automatic decapper is special equipment for 5-gallon retrieving barrel. It does not damage caps.
This machine adopts computer control and its capacity can be adjusted. Cap pulling organism from AIRTAC adopt pneumatic adjustment, which solves the problems of tolerance of barrel height and tolerance of barrel's mouth, and
increases cap pulling success greatly. 304 stainless machine frame and machine body.
380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price 3
380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price 4

Outer Brusher

Function: clean the external of 5 gallon bottles with brush and water
1. Rotary style to wash the bottle body.
2. Material of machine frame and body: all 304 Stainless Steel.
3. All 304 stainless steel pipeline , valve and connector, fine polish, no death corner
4. Linear washing style with ø350brush 1pc ø200 brush 3pcs 300*3 brush 20pcs
5. Water pump: with 304 stainless steel pump
6. Washing tank: size 500*300*600*1.2, 304 stainless steel
7. No bottles, no washing

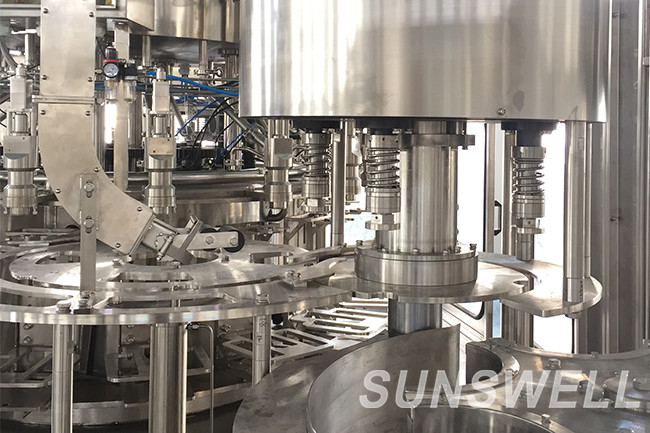

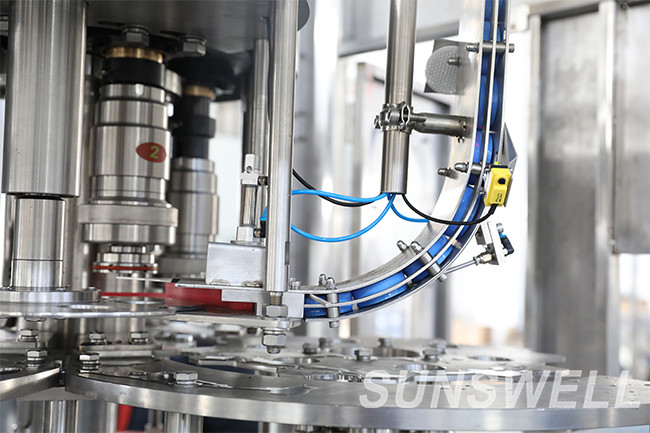

Washing-filling-capping 3-in-1 Monoblock

1. 3-rows 12-washing stops. Everything stop is about 23 seconds.
2. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
3. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
4. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts.
5. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
6. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows.
380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price 5
380V 3PH 50Hz High Speed Filling Machine 5L Pure Water Filling Machine Price 6

Function: convey the empty and the filled bottles

1. The total length is subject to layout
2. Motor drive
3. SUS304 stainless steel frame and chain plate
Model
QGF-100
QGF-300
QGF-450
QGF-600
QGF-900
QGF-1200
QGF-2000
Number of filling heads
1
2
3
4
8
12
16
Filling capacity
18.9
18.9
18.9
18.9
18.9
18.9
18.9
Barrel size (mm)
φ270×490
φ270×490
φ270×490
φ270×490
φ270×490
φ270×490
φ270×490
Production capacity (b/n)
100-120
200-240
300-400
600
900
1200
2000
Gas pressure (Mpa)
0.4-0.6
0.4-0.6
0.6
0.6
0.6
0.6
0.6

Tag:

water filling equipment,

pet bottle filling machine,

pure Water Filling Machine
