Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH

Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH
Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH
Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH
Basic Information
Place of Origin: China
Brand Name: Sunswell
Certification: ISO,CE
Model Number: SSW-300
Minimum Order Quantity: 1 Set
Price: USD 4000 per Set
Packaging Details: wood case & carton packaging
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 50 Set/Sets per Year
Get Best Price Contact Now
Machinery Capacity: 4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 1 Packaging Type: CANS, Bottles
Voltage: 220/380/415 Customization Weight: 50 KG
Key Selling Points: Easy To Operate Filling Accuracy: ±0.1mg
Core Components: Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Gearbox Model: SSW-300,SSW-600
Machine Material: SS304 Applicable Industries: Food & Beverage Factory
Application: Food, Beverage, Chemical, APPAREL, Medical Packaging Material: Plastic, Glass
Driven Type: Electric Place Of Origin: Jiangsu, China
Dimension(L*W*H): 500x250x1000mm Warranty: 2 Years
Warranty Of Core Components: 1 Year Machinery Test Report: Provided
Bottle Type: Bottles, Cans, Capsule, Pouch Capacity: 10000-36000BPH
Highlight:

Aluminum Can Liquid Nitrogen Dosing System

,

36000 BPH Liquid Nitrogen Dosing System

,

200W Liquid Nitrogen Dosing System

Products Description
Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH 0
Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH 1

Liquid Nitrogen Dosing Machine for Can Bottle Juice Milk Energy Drink Beverage Nitrogen Dosing System

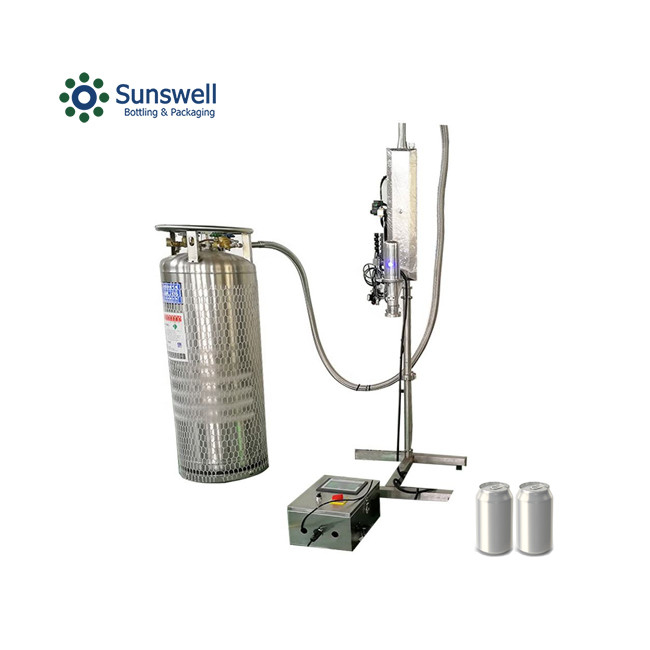

SSW-300 Liquid Nitrogen Dosing Machine is the latest liquid nitrogen dosing machine in China which uses the similar machines abroad for reference. It could control dosing volume accurately, no-container-no-liquid dosing, small size, easy installation and could coordinate with any filling production line. Control system comprises Siemens PLC and touch screen, all pipes adopt vacuum heat-insulated pipes which could ensure minimum consumption of liquid nitrogen and no frosting operation condition.
Specification
Capacity
0-300/ 0-2000 cans per min, Set up dosing speed
Suitable Can Size
At will
Power
200W
Voltage
380V 50HZ 3 phase
Weight
32KG
Dimension
1000mm×600mm×2000mm
Working Process
Liquid nitrogen gasify and volume expansion 700 times, extrude the air out and form vacuum in the can, increase the aluminum can/pet can internal pressure to prolong the canned beverage shelf life and keep good looking for better transportation and store.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Operation Conditions
1.Supple of Liquid Nitrogen: Regulate to 15 (0.1MPa) and connect to liquid nitrogen pipe.
2.Compressed Air or Nitrogen: Supply to the working of dosing valve. The pipe diameter must be 1/4inch and pressure range is from 50psig to 100psig (3.4 to 6.9 bar). Set the pressure to 50 psig (0.35MPa). Please do not set the pressure too high, high pressure means high impact, it will shorten the lifetime of dosing valve element and internal vacuum pipe.
Characteristics
1.No container no dose and interval dose method in low speed to reduce liquid nitrogen consumption; dosing valve is always open in high speed. Automatic detects high speed or low speed.
2.Vacuum & heat insulation protection.
3.Special nozzle care system effectively avoided nozzle frost and ice blockage phenomenon.
4.Liquid-gas separator ensures liquid nitrogen in a ultra cold state, improves liquid phase purity to make the dose more precision and steady.
5.Liquid nitrogen buffer function, effectively control liquid nitrogen bounce splash. Liquid nitrogen dosing amount is steady and ensures can pressure equality.
6.Filter(optional) 10μm to removes particulate pollution.
7.Precise dosing liquid nitrogen speed could reach to 300cpm, continuous dosing speed could reach to 800cpm
8.Capacity adjustability and effectively vacuum liquid nitrogen insulation pipe ensures minimum liquid nitrogen consumption.
9.Advanced dosing valve ensures transport pure and liquid nitrogen.
10.Lowest outlet pressure of dosing valve ensures minimum liquid nitrogen splash.
11.No frost operating condition.
12.Precise adjustability of dosing amount and dosing time.
13.Continuous self-monitoring through alarm indicator.
14.PLC control/Touch screen/user-interface language selectivity.
15.Could connect liquid nitrogen vacuum and heat insulation pipe, also could provide a complete liquid supply system from liquid nitrogen storage tank to filling production line.
16.Small size and easy to install.
17.Diversity machine types ensures to suit different capacity production lines.
18.Apply to all different sizes pet bottles and thin-wall easy open cans production lines.
Company Profile

1.About us

Set up in 2008, Sunswell leads the market in the field of liquid bottling, blow molding, labeling, packaging machinery and process
technology for water, tea, juice, carbonated drinks, energy drinks, liquid, beer, edible oil, dairy and daily care products, etc.

We can customize liquid food production lines according to customers' demand. Every customer is the result of our proven
experience and innovation. We continually focus on providing customers with advanced technology, engineering and facility that are
designed with one motto in mind: ensure you to reach business goals with most optimized planning.

Why choose us?

(1)A to Z turnkey plant provider
(2)Fully automatic or economic solution optional
(3)10+ years of global market experience
(4)Serve customers over 50 countries and regions worldwide

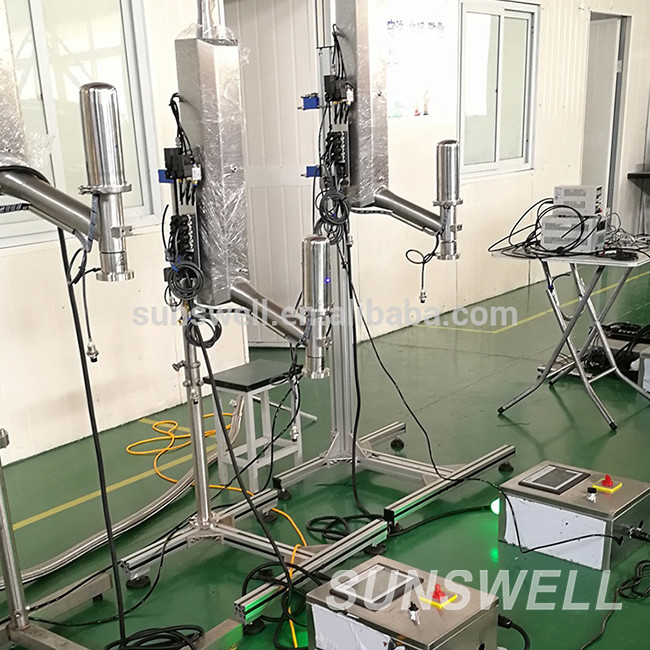

Office & Factory & Workshop
Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH 2
Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH 3
Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH 4
Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH 5
Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH 6
Any more questions, pls feel free to contact me !

2.Exhibitions

Sunswell,as an professional liquid filling and packing machine manufacturer,we often have chance to go out for exhibition to show our beverage filling machines and communicate processing technology with other industrial colleagues.
Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH 7
3.Certifications
Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH 8
4.Service
Aluminum Can Liquid Nitrogen Dosing System For Beverage Can Filling Machine 36000 BPH 9

Spare Parts / Maintenance, Installation & Commissioning / Training

No matter whether you're a newcomer or a sectoral expert – we have the specialists who can provide the comprehensively can-do support you need for planning a new facility in terms of not only actual beverage production, but also filling, packaging,utilities and logistics. In closely responsive consultation with you, from a multiplicity of possible options, we select the technologically and commercially most effective variant, handle the design and planning work, and bring the project to a successful conclusion at your chosen location. Sunswell is not only the consultant here, but also takes responsibility for executing the entire project.

Any more questions, pls feel free to contact me !
