Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle

Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle
Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle
Basic Information
Place of Origin: China
Brand Name: Sunswell
Certification: ISO,CE
Model Number: BDXGF16-16-5
Minimum Order Quantity: 1 Set
Price: 30,000USD/SET
Packaging Details: wood case & carton packaging
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 50 Sets per Year
Get Best Price Contact Now
Machinery Capacity: 4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 16000BPH, 2000BPH Packaging Material: Glass
Filling Material: Alcoholic Carbonated Drink Filling Accuracy: ±1%
Applicable Industries: Manufacturing Plant, Food & Beverage Factory Application: Beverage
Packaging Type: Bottles Automatic Grade: Automatic
Driven Type: Electric Weight: 3500 KG
Warranty: 1 Year Key Selling Points: Easy To Operate
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor, Pressure Vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine
Condition: New Type: Filling Machine
Voltage: 220V 380V Dimension(L*W*H): 2900*2150*2250
High Light:

Stable Performance Carbonated Beverage Filling Machine

,

CSD Soda Carbonated Beverage Filling Machine

,

Glass Bottle Carbonated Beverage Filling Machine

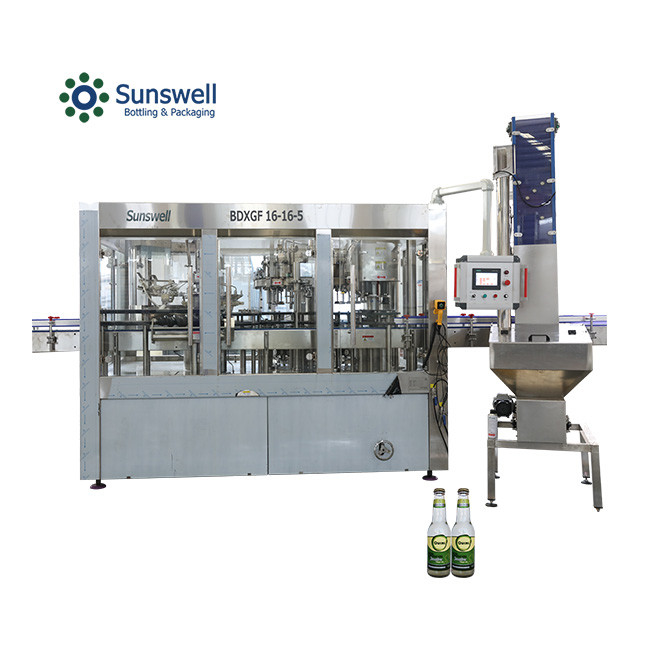

BDXGF16-16-5 Carbonated Alcoholic Beverage(Isobaric)Filling Machine
Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 0

Main features

* The machine has compact structure, complete control system, convenient operation and high degree of automation.
* The parts in contact with the material are all made of imported high-quality stainless steel, no dead corners in the process, and easy to clean.
* High-precision, high-speed quantitative filling valve is adopted, the liquid level is accurate and there is no liquid loss, ensuring excellent filling quality.
* High-efficiency cap sorting system is adopted, with perfect cap feeding technology and protection device.
* There is no need to adjust the height of the equipment to change the shape of the bottle, and it can be realized by replacing the star wheel of the bottle, and the operation is simple and convenient.
* The filling system adopts the bottle feeding technology with a flat bottom, and the transmission is stable.
* The control system has the functions of automatic water level control, lack of cap detection, automatic stop of bottle rinsing and output counting.
* The bottle washing system adopts the high-efficiency cleaning spray nozzle produced by American Spray Company, which can clean every part of the bottle.
* The main electrical components, electric control valves, frequency converters, etc. are all imported to ensure the excellent performance of the whole machine.
* All components of the air system adopt internationally renowned products.
Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 1

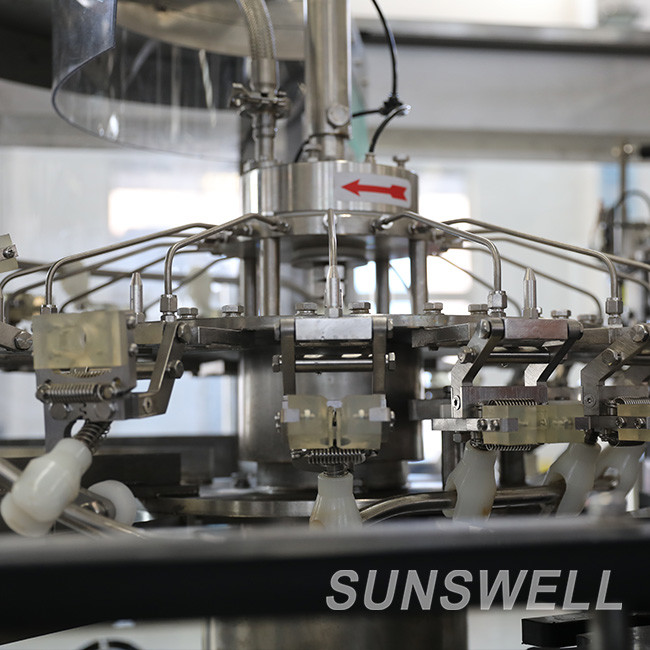

Rinsing part

The bottle enters the bottle rinser through the transmission star wheel, and sterile water is recommended , the bottle clamp clamps the bottle mouth and turns up 180° along the bottle rinse guide rail to make the bottle mouth downward. In a specific area of the rinsing machine (determined by the water distribution plate - the rinsing water is pumped into the water distribution plate by the rinsing water pump, and then distributed to the bottle rinse clamp by the water distribution plate through 16 pipelines), the nozzles of the bottle rinser are sprayed out Purified water to rinse the inside of the bottle. After the bottle is rinsed and
drained, it is held by the bottle clamp and turned down 180° along the guide rail to make the bottle mouth upward. The washed bottles are exported from the bottle rinsing machine through the transition steel wheel (pure water rinsing) and sent to the next process - filling.
Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 2

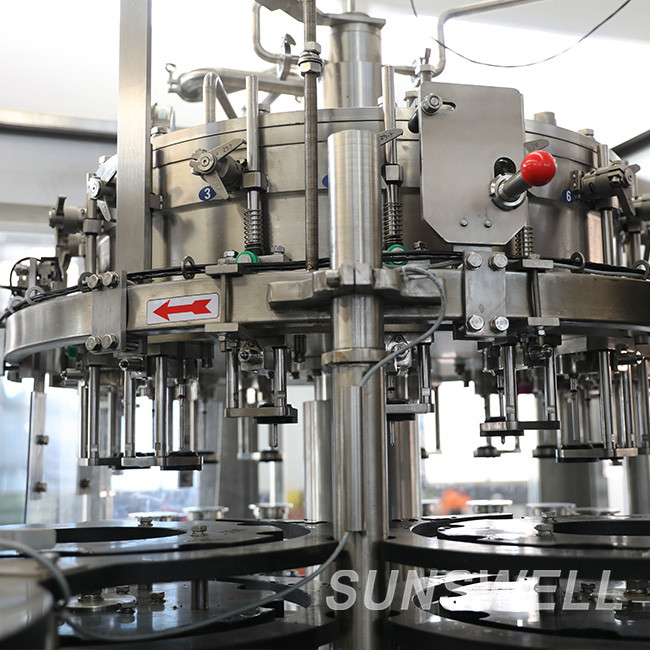

Filling part

This part adopts the method of isobaric filling.The washed bottles are exported from the bottle rinsing machine through the star wheel and sent to the filling machine. The bottle that enters the filling machine is held by the neck support plate, and the filling valve is lowered and raised by the action of the cam through the cylinder lifting mechanism. The filling adopts the
pressure filling method. After the filling is completed, the bottle is stuck on the bottleneck transition wheel and enters the capping machine.
Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 3

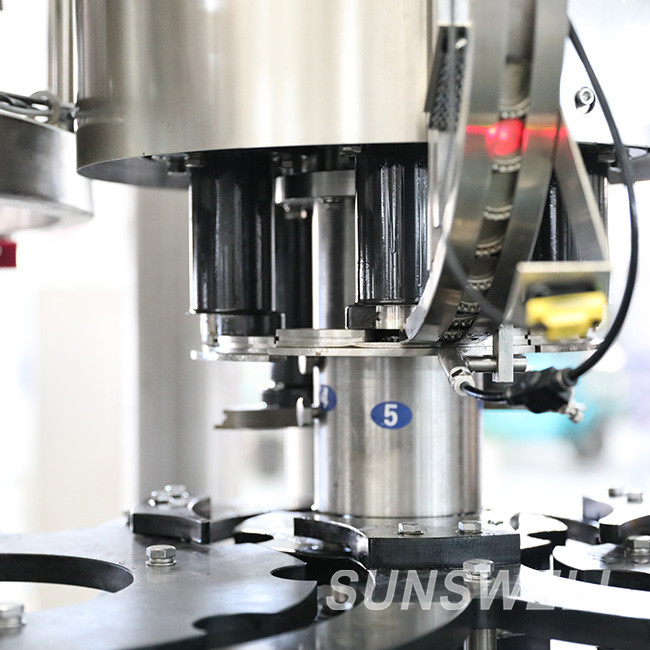

Capping part

After filling, the bottle enters the capping machine through the feeding wheel with cap . The dial on the capping machine clamps the bottle neck, keeps the bottle upright and prevents rotation. The capping head is kept under the action of the cam on the capping machine to realize the actions of cap grasping, capping and capping , and capping, and completes the entire capping process. The finished bottle is conveyed from the capping machine to the bottle conveying chain through the bottle conveying wheel, and then conveyed out of the three-in-one bottle filling machine by the conveying chain.
Technical Parameters:
Number of stations
Aseptic washing bottle 16 , filling 16 , crown cap 5
Rated capacity
3000 bottles/hour
Applicable bottle type
Diameter: Φ50-Φ 80, Height: 190-300
Rinsing water
600 l/hour
Filling water
2.2 tons/hour
Main power
2.2KW
Bottle outlet transport power
0.75KW
Cap elevator power
0.55KW
Rinsing water pump power
0. 37KW
Air pressure
0.7MPa
Gas consumption
0.4m³/min
Dimensions
2200 × 1800 × 2200
Total Weight
3800kg

Configuracion


No.
Name
Supplier
1
Three-in-one main motor
ABB
2
Flushing pump
Hangzhou South
3
The electromagnetic valve
Japanese SMC
4
Air source triple
Japanese SMC
5
Regulator
Japanese SMC
6
Inverter
Danvers
7
Switching power supply
Mean Well Taiwan
8
Contactor
Schneider
9
Intermediate relay
Schneider
10
Transformer
Domestic famous brand
11
Photoelectric switch
Bonner, Germany
12
Proximity switch
Bonner, Germany
13
PLC control system
Siemens
14
Touch screen
Siemens
15
Pneumatic components
Japanese SMC
16
AC contactor
Schneider
17
Micro relay
Schneider
Why Choose Us
00:00

02:00

Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 4
Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 5
Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 6
Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 7
Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 8
Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 9
Set up in 2008, Sunswell leads the market in the field of liquid bottling, blow molding, labeling, packaging machinery and process technology for water, tea, juice, carbonated drinks, energy drinks, liquid, beer, edible oil, dairy and daily care products, etc.
Advantage:
(1)A to Z turnkey plant provider (2)Fully automatic or economic solution optional (3)10+ years of global market experience (4)Serve customers over 50 countries and regions worldwide
Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 10
Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 11
Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 12
Any more questions, please feel free to contact us !
Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 13
Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 14
Maldives
Water Production Line Combiblock
(330/500/1500ml)


Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 15
USA
Carbonated Water Filling Line
20000BPH
Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 16
Syria
Carbonated Drink Filling Line
24000 Cans Per Hour
Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 17
Any more questions, please feel free to contact us !
Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 18
> the wide range of liquid packaging plant machinery > the various range of possible end products > 10+ years of global market experience > 80+ countries of customers worldwide > 20+ mechanical, electrical and food science engineers > 10+ service staff
Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 7
Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 8
Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 9
Stable Performance Rotary Carbonated Beverage Filling Machine CSD Soda Rinsing Filling Capping Machines for Glass Bottle 22
