Basic Information
Place of Origin: China
Brand Name: Sunswell
Certification: CE, ISO, SGS, UL
Minimum Order Quantity: 1 set
Price: USD 20000/set
Packaging Details: Wood case & Carton packaging
Delivery Time: 50 days
Supply Ability: 10 Set/Sets per Month
Get Best Price Contact Now
Applicable Industries: Manufacturing Plant, Food & Beverage Factory Showroom Location:: Egypt, United States, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Thailand, Kenya, Chile, UAE, Sri Lanka, South Africa, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan, Malaysia
Packaging Type: Bottles Voltage: 220V 380v
Weight: 3500 KG Key Selling Points: Long Service Life
Filling Material: Water Core Components: Motor, Pressure Vessel, Pump, PLC, Gear
Production Capacity: 130BPH-1200BPH Barrel Size (mm): Big Bottle Machine
Application: Beverage Packaging Material: Plastic
Driven Type: Electric Dimension(L*W*H): 2400x1650x2500mm
Warranty: 2 Years Machinery Capacity:: 300BPH
Keywords: Drinking Water Filling Line Function: Liquid Filling Sealing
Machinery Test Report: Provided
Highlight:

High Accuracy 5 Gallon Bottling Line

,

20L 5 Gallon Bottle Filling Machine

,

20L 5 Gallon Water Filling Machine

Products Description

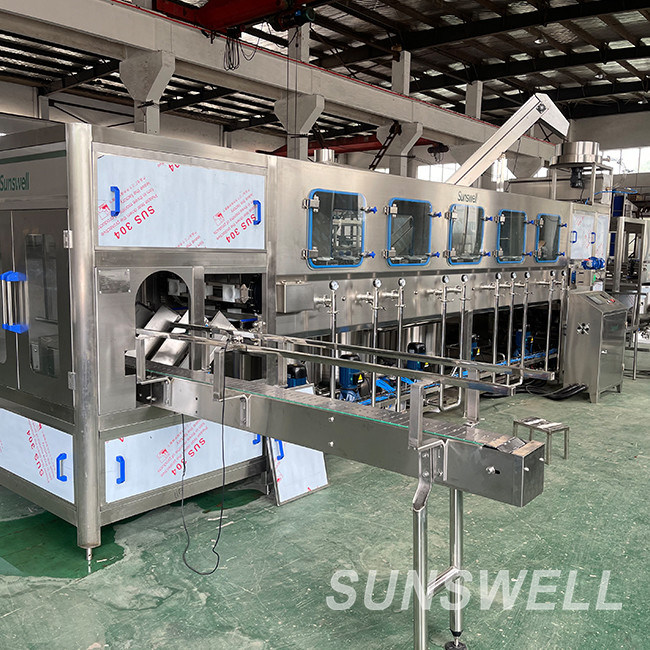

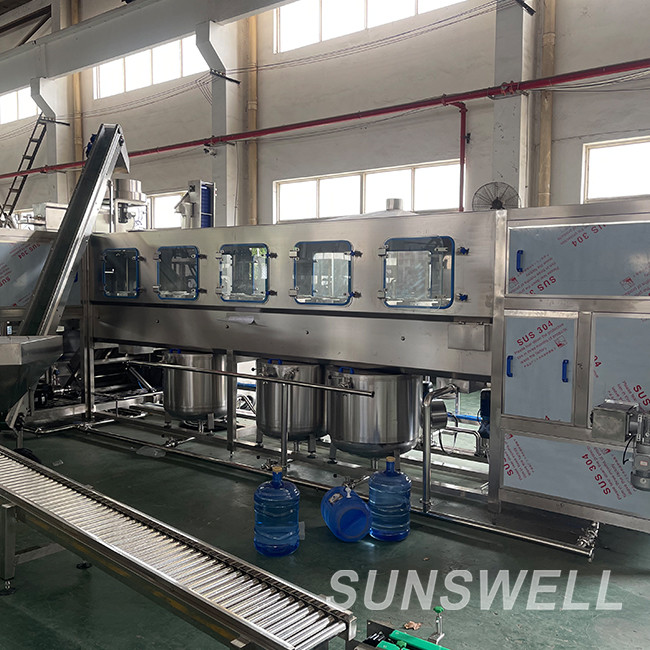

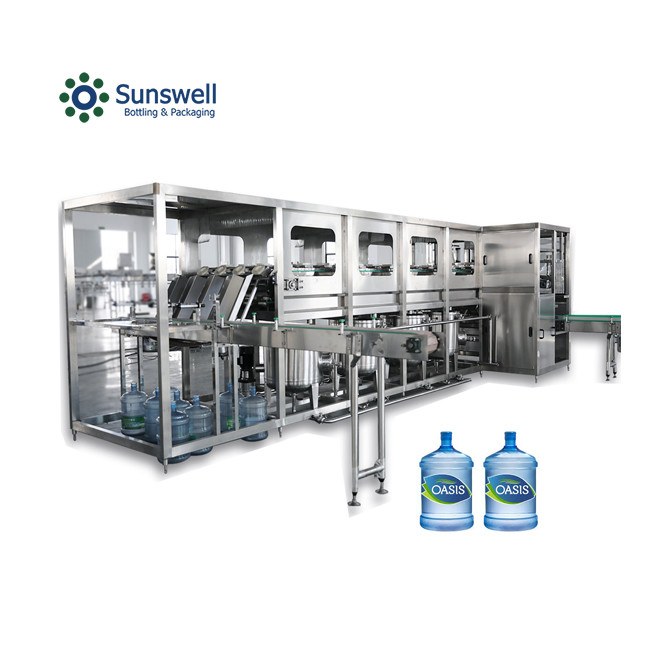

The machine is used for 3 gallon & 5 gallon water filling, which is composed of washer, filling and capper.
1. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
2. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
3. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
4. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
5. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows Automatic 5 gallon bottle washing machine
High Accuracy 5 Gallon Pure Water Production Line Pure Water 20L Washing Filliing Capping 3 In 1 Monoblock 0
High Accuracy 5 Gallon Pure Water Production Line Pure Water 20L Washing Filliing Capping 3 In 1 Monoblock 1
High Accuracy 5 Gallon Pure Water Production Line Pure Water 20L Washing Filliing Capping 3 In 1 Monoblock 2
High Accuracy 5 Gallon Pure Water Production Line Pure Water 20L Washing Filliing Capping 3 In 1 Monoblock 3
Details Images

Cap Decapper

This model automatic decapper is special equipment for 5-gallon retrieving barrel. It does not damage caps.
This machine adopts computer control and its capacity can be adjusted. Cap pulling organism from AIRTAC adopt
pneumatic adjustment, which solves the problems of tolerance of barrel height and tolerance of barrel’s mouth, and
increases cap pulling success greatly. 304 stainless machine frame and machine body.
High Accuracy 5 Gallon Pure Water Production Line Pure Water 20L Washing Filliing Capping 3 In 1 Monoblock 4
High Accuracy 5 Gallon Pure Water Production Line Pure Water 20L Washing Filliing Capping 3 In 1 Monoblock 5

Outer Brusher

Function: clean the external of 5 gallon bottles with brush and water
1. Rotary style to wash the bottle body.
2. Material of machine frame and body: all 304 Stainless Steel.
3. All 304 stainless steel pipeline , valve and connector, fine polish, no death corner
4. Linear washing style with ø350brush 1pc ø200 brush 3pcs 300*3 brush 20pcs
5. Water pump: with 304 stainless steel pump
6. Washing tank: size 500*300*600*1.2, 304 stainless steel
7. No bottles, no washing
High Accuracy 5 Gallon Pure Water Production Line Pure Water 20L Washing Filliing Capping 3 In 1 Monoblock 6

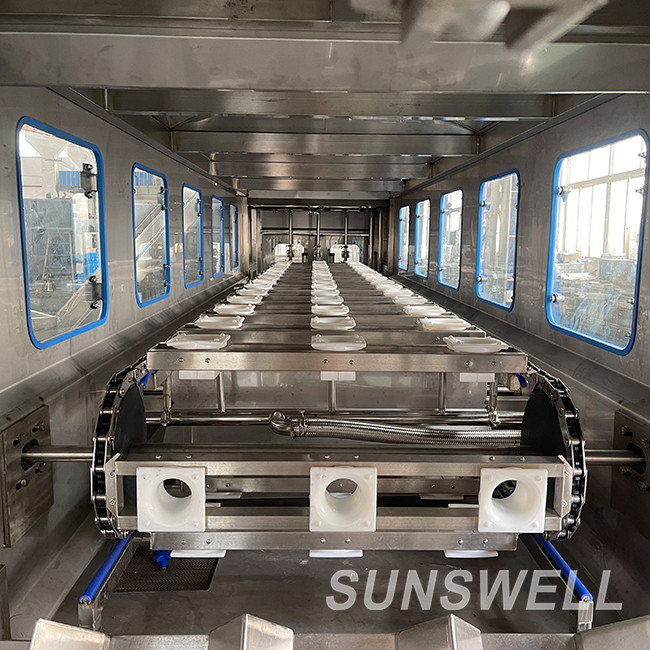

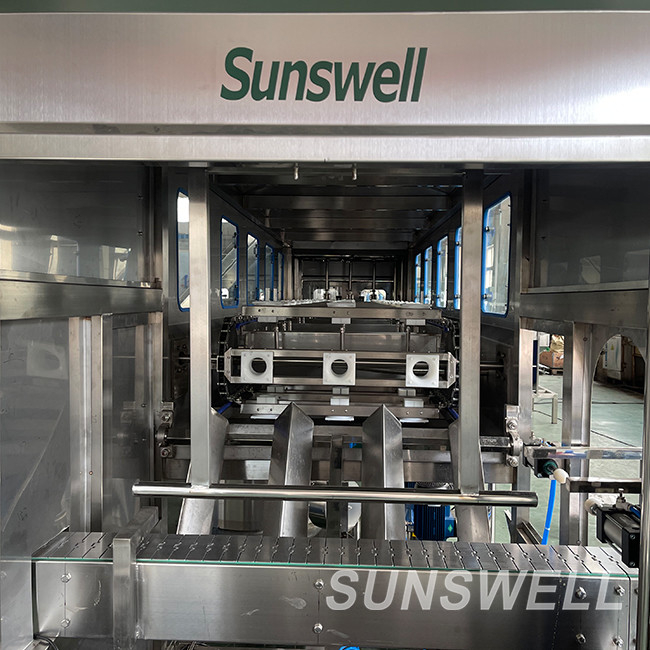

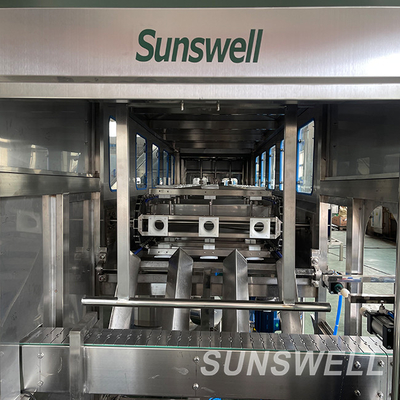

Washing-filling-capping 3-in-1 Monoblock

1. 3-rows 12-washing stops. Everything stop is about 23 seconds
2. 304 stainless steel insert type filling nozzle, two time high precision filling, filling volume adjustable.
3. Water pump: 304 stainless steel pump. three washing pumps and one filling pumps.
4. Mitsubishi PLC controlling system, all full-automatic working, Schneider & Omron brand other electric parts
5. With AIRTAC brand air cylinder, F.R.L. Combination and Electromagnetism valve for air cylinder.
6. Machine frame and body: all 304 Stainless Steel, combine with clear fiber glass windows
High Accuracy 5 Gallon Pure Water Production Line Pure Water 20L Washing Filliing Capping 3 In 1 Monoblock 7
Function: convey the empty and the filled bottles
1. The total length is subject to layout
2. Motor drive
3. SUS304 stainless steel frame and chain plate

Model QGF-100 QGF-300 QGF-450 QGF-600 QGF-900 QGF-1200
Number of filling heads 1 2 3 4 8 12
Filling capacity 18.9 18.9 18.9 18.9 18.9 18.9
Barrel size(mm) φ270×490 φ270×490 φ270×490 φ270×490 φ270×490 φ270×490
Production capacity(b/n) 100-120 200-240 300-400 600 900 1200
Gas pressure 0.4-0.6 0.4-0.6 0.6 0.6 0.6 0.6
