Place of Origin: | Zhangjiagang |
---|---|
Brand Name: | Sunswell |
Certification: | CE, UL |
Model Number: | PHXGF |
Minimum Order Quantity: | 1 set |
Price: | $15,000~$200,000/set |
Packaging Details: | Carton packaging with PE Film wrapping inside |
Delivery Time: | 45 working days |
Supply Ability: | 20Unit/Month |
Bottle Material: | PE, HDPE | Sealing: | Aluminum Foil Sealing |
---|---|---|---|
Machine Material: | SS304 | Bottle Shape: | Customized |
Machine Warranty: | 2 Years | Service: | Engineers Come To Client Factory For Machine Installation And Commissioning |
Highlight: | automatic filling machine,juice filling machines |
Sunswell PE Bottled Dairy Products with Aluminum Foil Sealing
This production line is especially for PE bottles with aluminum foil filling, used in Yogurt, dairy and juice. The whole production line consists of water treatment system, preprocessing system, filling system and packaging system.
Bottle unscrambler
Scramble the ramdom bottles to be loaded in to the air conveyor in a line to be washed.

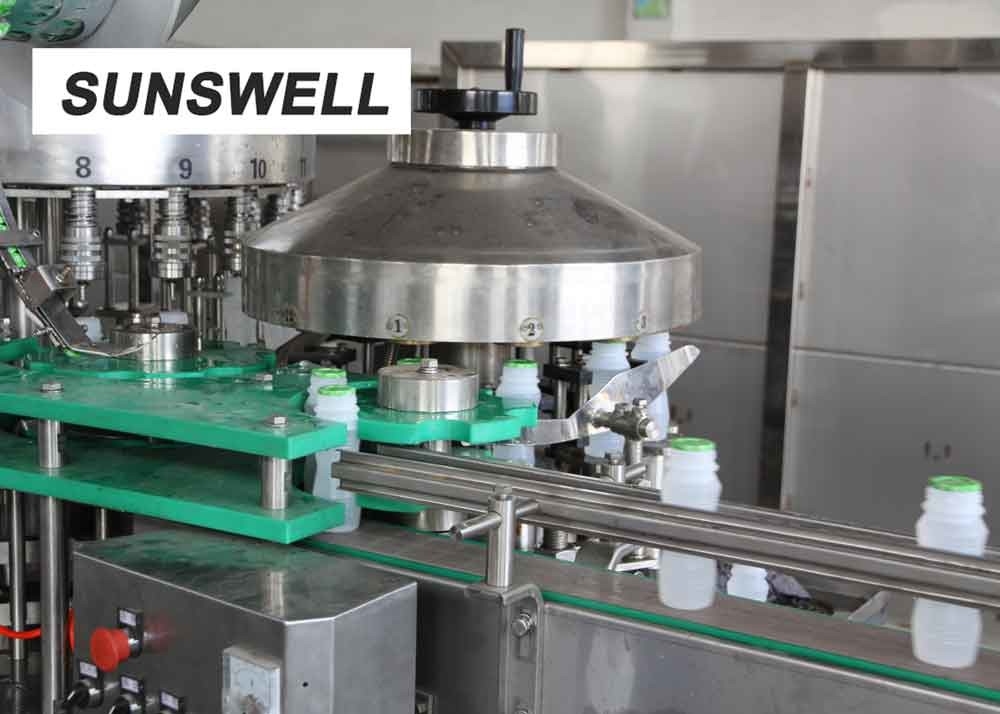

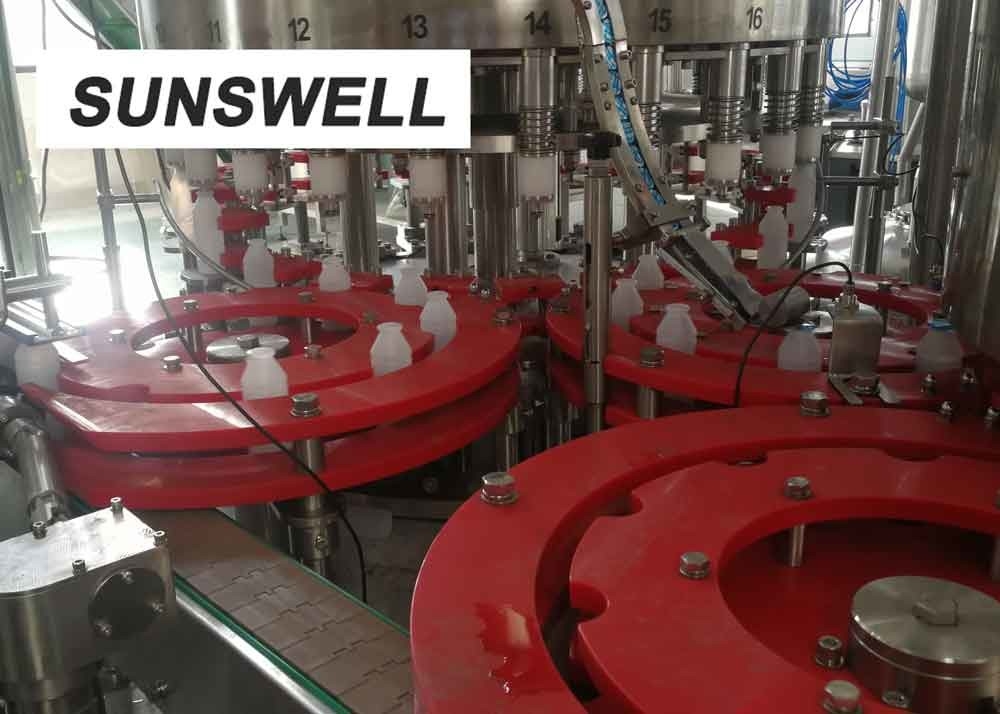

Rinser-filler-seamer
Composed by Dispenser, rinsing clamp, rinsing water recycle, there is a fixed rinsing time, the empty bottle was held by a fixed track, rinsing, drying, then reaches the cleaning purpose.
The design of filling structure is reasonable and without hygiene dead angle,the run of equipment is stable,the control accuracy is within ±2mm.
The filling valve material is SUS304
The filling system has liquid level automatic control.
Filling valve lift is controlled by the valve elevator,after filling valve contact the bottleneck ,it start to fill.
Bottle is conveying by the wheel in the filling part.
Blow dryer
The fast blowing air from the blow of the high-pressure fan is sprayed out of an aperture, to remove the remaining waters from bottles to a high extent. The aperture is side-positioned to blow all sides of bottles with fast flowing air.
Cooling tunnel
PLJ Series cooling tunnel machine is a new design of cooling machine which absorbs advanced technique of the similar domestic and foreign equipment. It adopts the treatment of three-stage circulating cooling water and is used for the cooling of drinks which does not contain gas, such as tea drinks, fruit juice, soy sauce, etc. The cooling time depends on users’ speed regulation. The machine is fabricated of stainless steel (SUS304) and has an aesthetic appearance, whose system is safe and reliable.
Self Adhesive labeling Machine
Whole machine adopt qualified stainless steel and good-quality of aluminum alloy , compact and reasonable fracture, convenient to adjust; The label roll frame of shrinkage film with adjustable device, convenient to adjust according to differ volume label 5″~10″paper tube.
PE film shrink wrapping machine
MB series machine has been designed for no tray, no cardboard case, packing with low cost in the operations, it is widely used in food, beverage, chemical and office industries
Machine Capacity:
3-in-1 Wahing Filling Capping for PE Bottle
No | Model | Capacity |
1. | 10-10-1 | 5000bph |
2. | 16-12-2 | 7000bph |
3. | 24-16-2 | 12000bph |
4. | 32-28-3 | 15 000bph |
5. | 40-36-4 | 24000bph |
4-in-1 Washing washing filling capping for PE Bottle
No | Model | Capacity |
1. | 10-10-10-1 | 5000bph |
2. | 16-16-12-2 | 7000bph |
3. | 24-24-16-2 | 12000bph |
4. | 32-32-28-3 | 15 000bph |
5. | 40-40-36-4 | 24000bph |
Sunswell has more than 10 years experience in beverage filling and packaging machine business. Welcome to consult for any machines!
