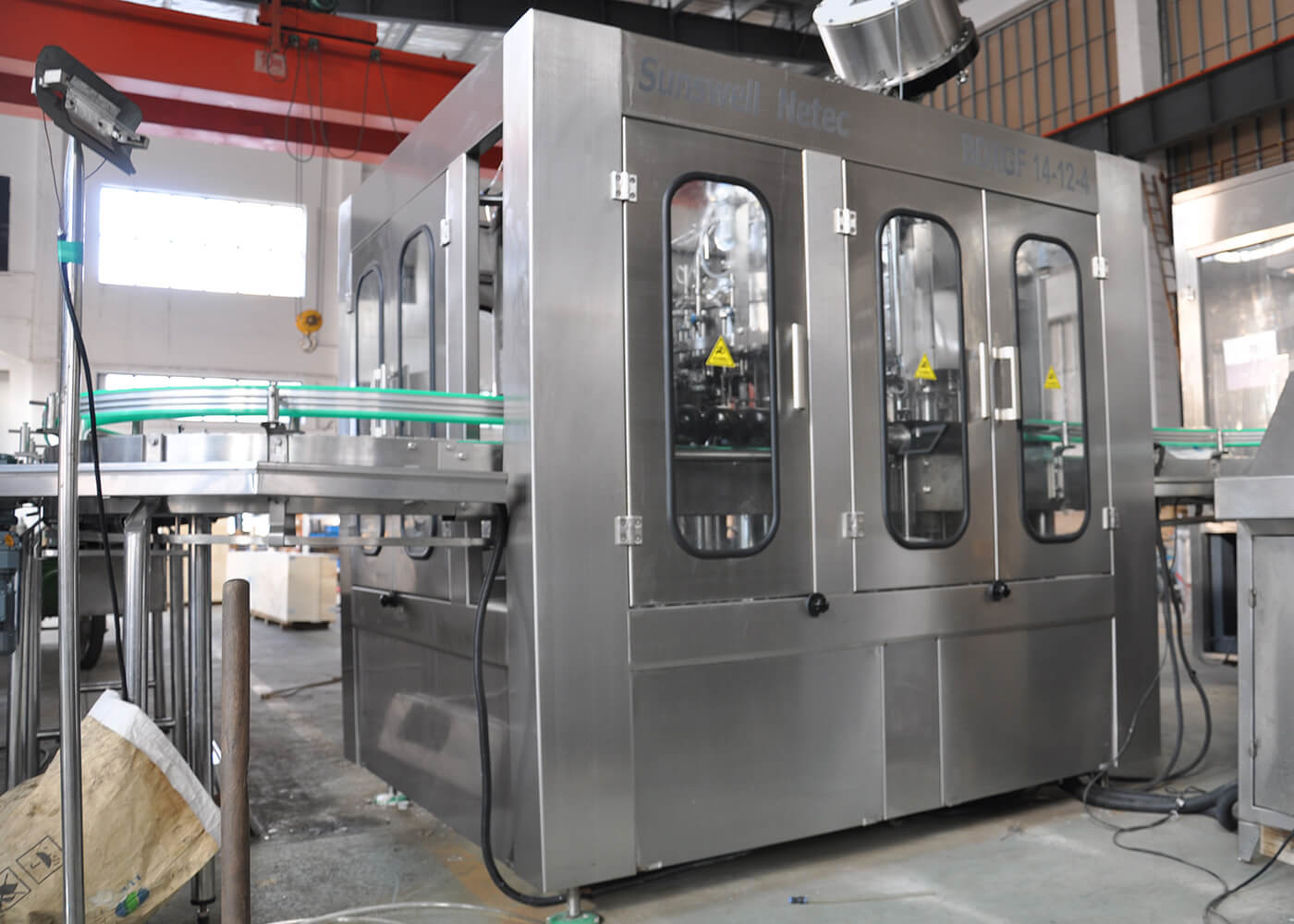

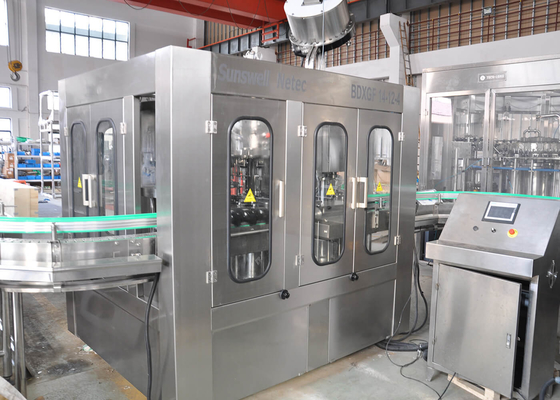

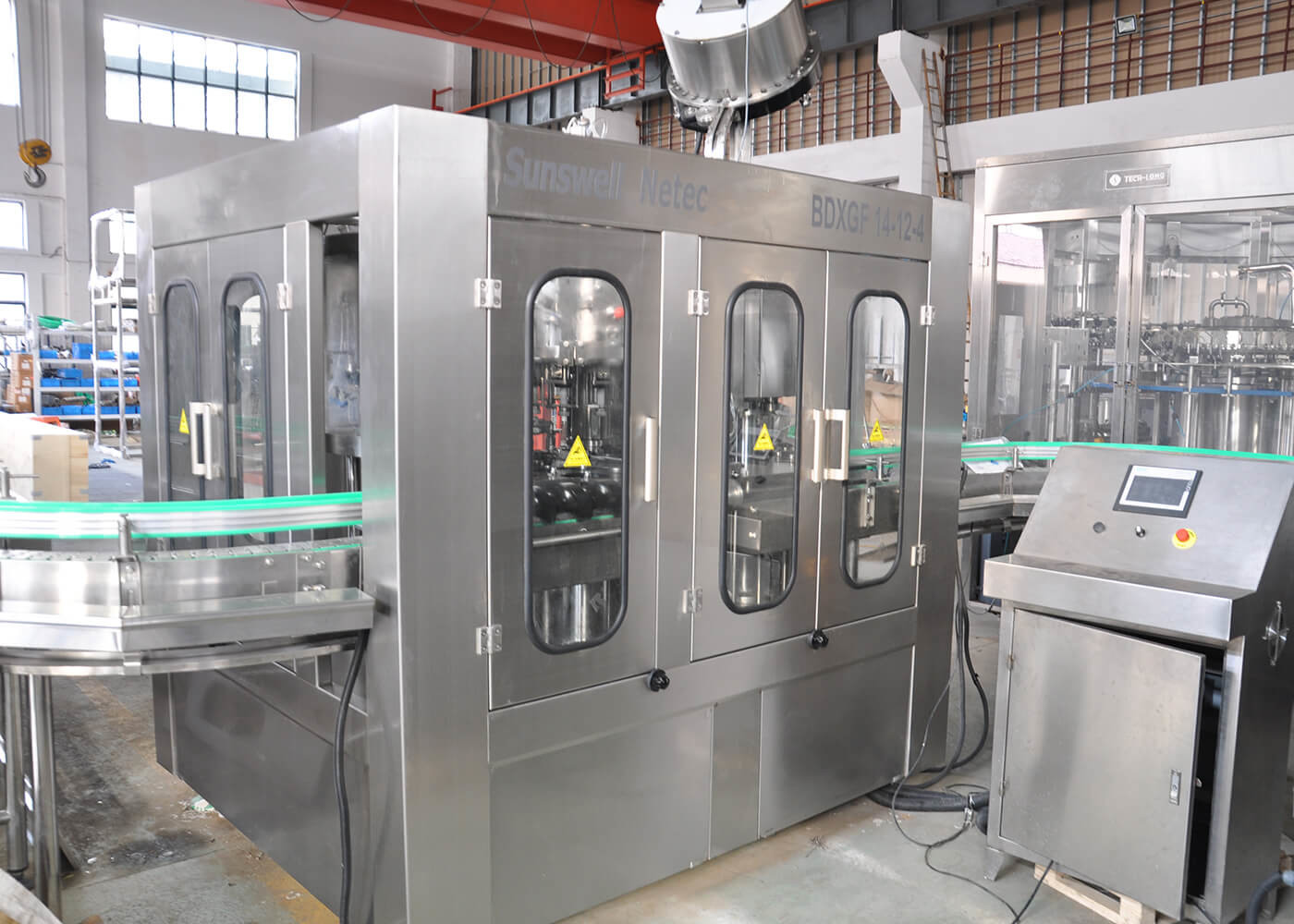

3000BPH - 24000BPH Automatic Carbonated Filling Machine For PET / Glass Bottle

3000BPH - 24000BPH Automatic Carbonated Filling Machine For PET / Glass Bottle

    • 3000BPH - 24000BPH Automatic Carbonated Filling Machine For PET / Glass Bottle
    • 3000BPH - 24000BPH Automatic Carbonated Filling Machine For PET / Glass Bottle
  • 3000BPH - 24000BPH Automatic Carbonated Filling Machine For PET / Glass Bottle

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: DXGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 80 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Product Name: Bottled Drinking Water / Juice / Carbonated Drinks Filling Machine Voltage: 220V/380V
    After-sales Service Provided: Engineers Available To Service Machinery Overseas Material: SUS304/316
    Processing Types: Isobaric Filling Function: Bottle Washing Filling Capping



    3, 000BPH-24, 000BPH Automatic PET/Glass Bottle Carbonated Drink Rinsing Filling Capping Machine



    Product Description:



    Soft drinks filler 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of carbonated soft drinks and soda water, on the basis of introducing, digesting and absorbing advanced technology from Germany and Italy.



    Main Features:



    The machine is a full-automatic multiple-function washing, filling and capping unit. It is used in washing. filling and sealing all kinds of non-air drinks such as carbonated beverage ,fruit juice, oil & vinegar,wine,fruit wine, mineral water and pure water. The line has features of unique design,new style, complete functions,multi-purpose, convenient in operation, beautiful construction, high automaticity. It is the best filling equipment in China.



    Carbonated drinks filling line model :



    Model Filling Heads Capacity @ 500ml Bottle Size Power Dimension(mm) Weight(KG)
    DCGF14-12-5 12 2000BPH 200-2000ml 1.8KW 2200×1800×2000 2500
    DCGF18-18-6 18 3000BPH 200-2000ml 2.6KW 2500×1800×2300 3000
    DCGF24-24-8 24 6000BPH 200-2000ml 3.8KW 2800×2100×2300 5000
    DCGF32-32-10 32 8000BPH 200-2000ml 4.2KW 3500×2200×2300 6000
    DCGF40-40-10 40 10000BPH 200-2000ml 7KW 4760×2080×2300 7000
    DCGF50-50-12 50 13000BPH 200-2000ml 9KW 5150×3820×2700 10000
    DCGF60-6015 60 17000BPH 200-2000ml 13KW 5300×3950×2700 8500
    DCGF72-72-18 72 19000BPH 200-2000ml 16KW 6250×4773×2700

    8500



    3000BPH - 24000BPH Automatic Carbonated Filling Machine For PET / Glass Bottle
