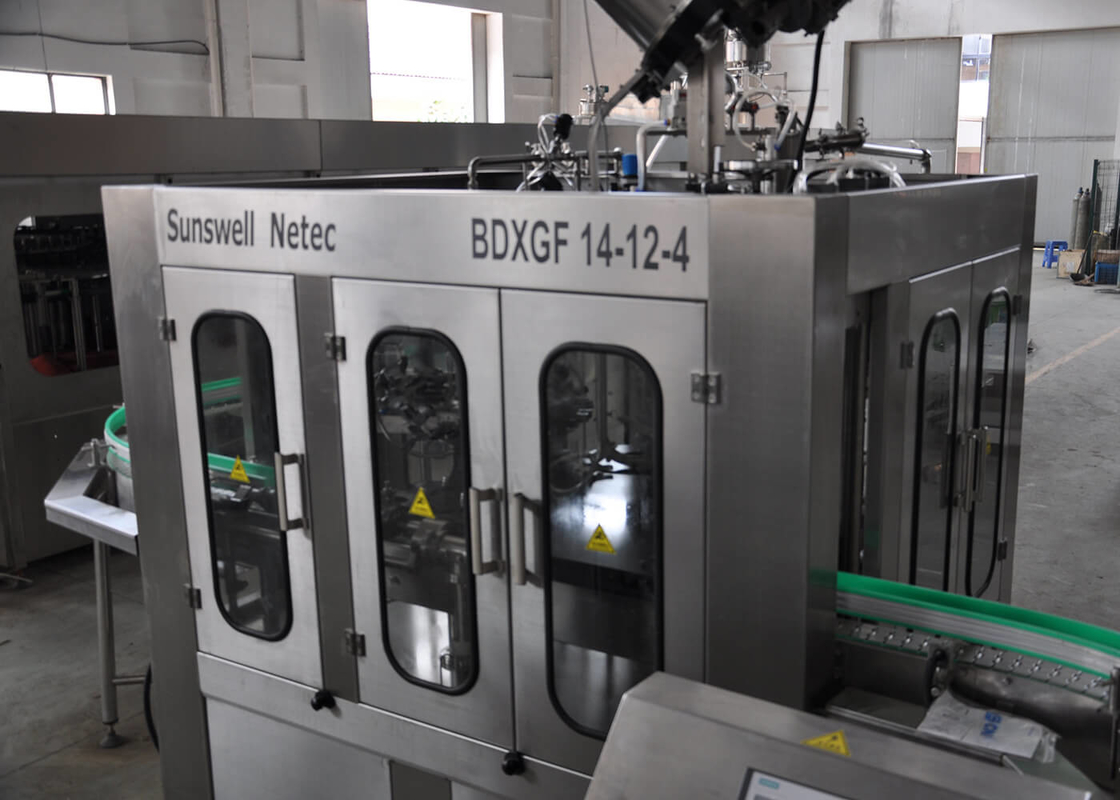

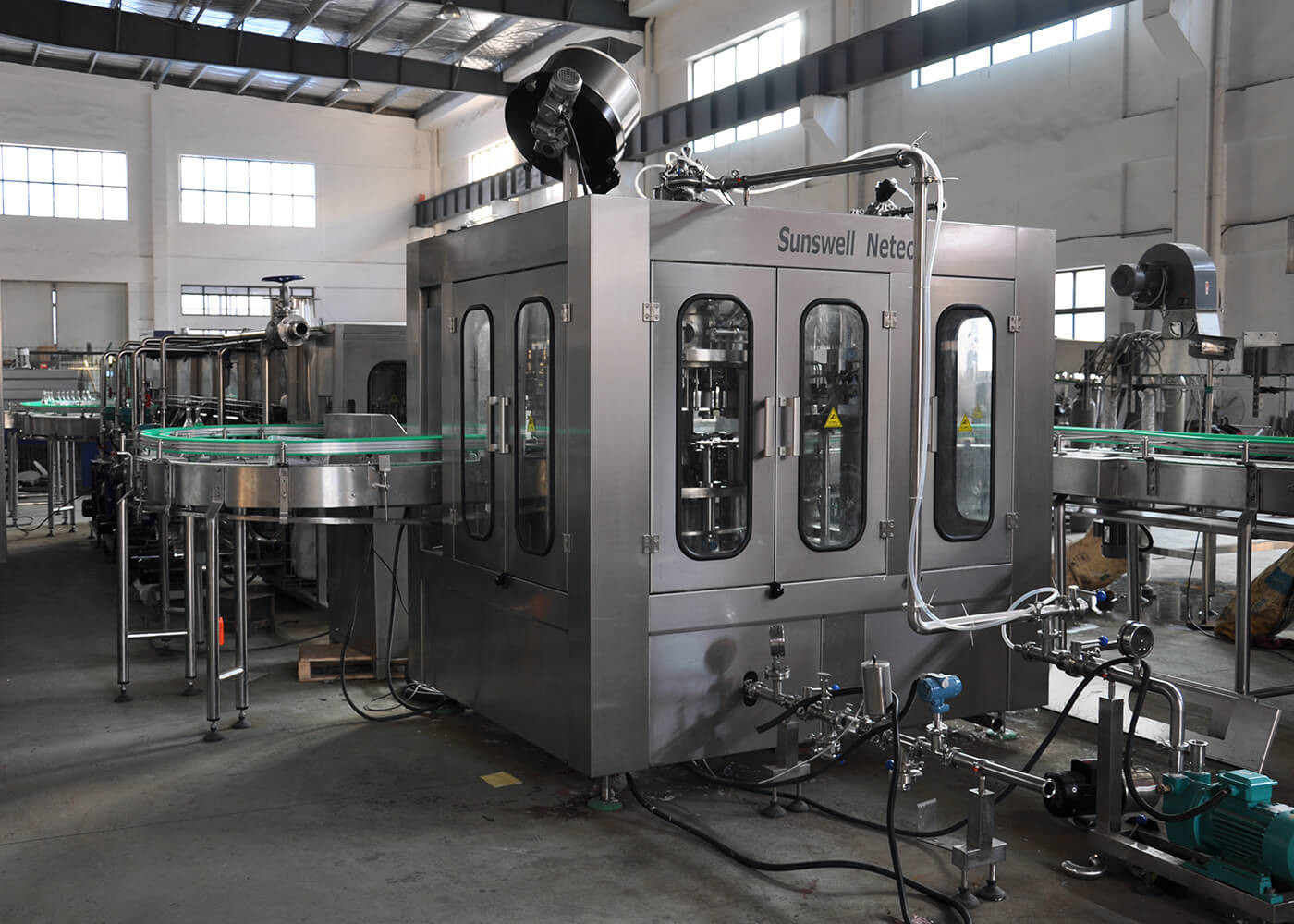

3 In 1 Soft Drink Beverage Carbonated Filling Machine / Production Line

3 In 1 Soft Drink Beverage Carbonated Filling Machine / Production Line

    • 3 In 1 Soft Drink Beverage Carbonated Filling Machine / Production Line
    • 3 In 1 Soft Drink Beverage Carbonated Filling Machine / Production Line
  • 3 In 1 Soft Drink Beverage Carbonated Filling Machine / Production Line

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: DXGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 80 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Product Name: Bottled Drinking Water / Juice / Carbonated Drinks Filling Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Material: SUS304/316 Processing Types: Isobaric Filling
    Function: Bottle Washing Filling Capping Name: Automatic Soft Drink Or Carbonated Drink Filling Machine

    Full Automatic 3-in-1 Soft Drink Beverage CSD Carbonated Drink Filling Bottling Machine Production Line



    General description:



    DXGF series is special for carbonated soft drinks, soda water, oxygen / hydrogen rich water, energy drinks filling, combined with rinsing, filling and capping. It is innovated and designed in the requirement of carbonated beverage technics, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for beverage producers.



    Features:

    • Compact structured, good-looking, easy to operate and highly automated.
    • Air conveyor is directly linked with infeed starwheels, making it easier to change bottles without screws and conveyor chains.
    • Bottles are conveyed with neck blocked. Bottles can be changed through some replacement of guiding sheets, starwheels of nylon instead of height adjustment of machine.
    • Rinser-clamp of special design is strong and endurable, without contact with worms at bottle-mouth, to prevent bi-pollution.
    • Highly effective spraying nozzles equipped on the rinser-clamp can rinse every side of inner bottle and save water.
    • Parts with contact with material are all made of stainless steel of food-grade, no dead angles and easy to clean up.
    • Feed-in volume is controlled to ensure accurate filling.
    • Valve on-off system is driven by cam, which starts on bottle signals.
    • High-speed and highly accurate filling valves ensure no loss of liquid at high speed.
    • Bottles are kept with necks blocking when going up and down by elevator-cam, which apply to thin bottles with equal force instead of spring problem.
    • Equipped with CIP clean-in-place.
    • Bottle support-sheet in infeed starwheels goes down via screw. Bottles can be changed without adjustment of height of conveyor chain.
    • Capping heads are magnetic constant-torque equipped to ensure capping quality with no damage.
    • Highly effective cap sorting and feed in system is protective for feed in and cap absence.
    • Equipped with overload system to safeguard machine and operators.

    Carbonated drinks filling line model :



    Model Filling Heads Capacity @ 500ml Bottle Size Power Dimension(mm) Weight(KG)
    DCGF14-12-5 12 2000BPH 200-2000ml 1.8KW 2200×1800×2000 2500
    DCGF18-18-6 18 3000BPH 200-2000ml 2.6KW 2500×1800×2300 3000
    DCGF24-24-8 24 6000BPH 200-2000ml 3.8KW 2800×2100×2300 5000
    DCGF32-32-10 32 8000BPH 200-2000ml 4.2KW 3500×2200×2300 6000
    DCGF40-40-10 40 10000BPH 200-2000ml 7KW 4760×2080×2300 7000
    DCGF50-50-12 50 13000BPH 200-2000ml 9KW 5150×3820×2700 10000
    DCGF60-6015 60 17000BPH 200-2000ml 13KW 5300×3950×2700 8500
    DCGF72-72-18 72 19000BPH 200-2000ml 16KW 6250×4773×2700

    8500
