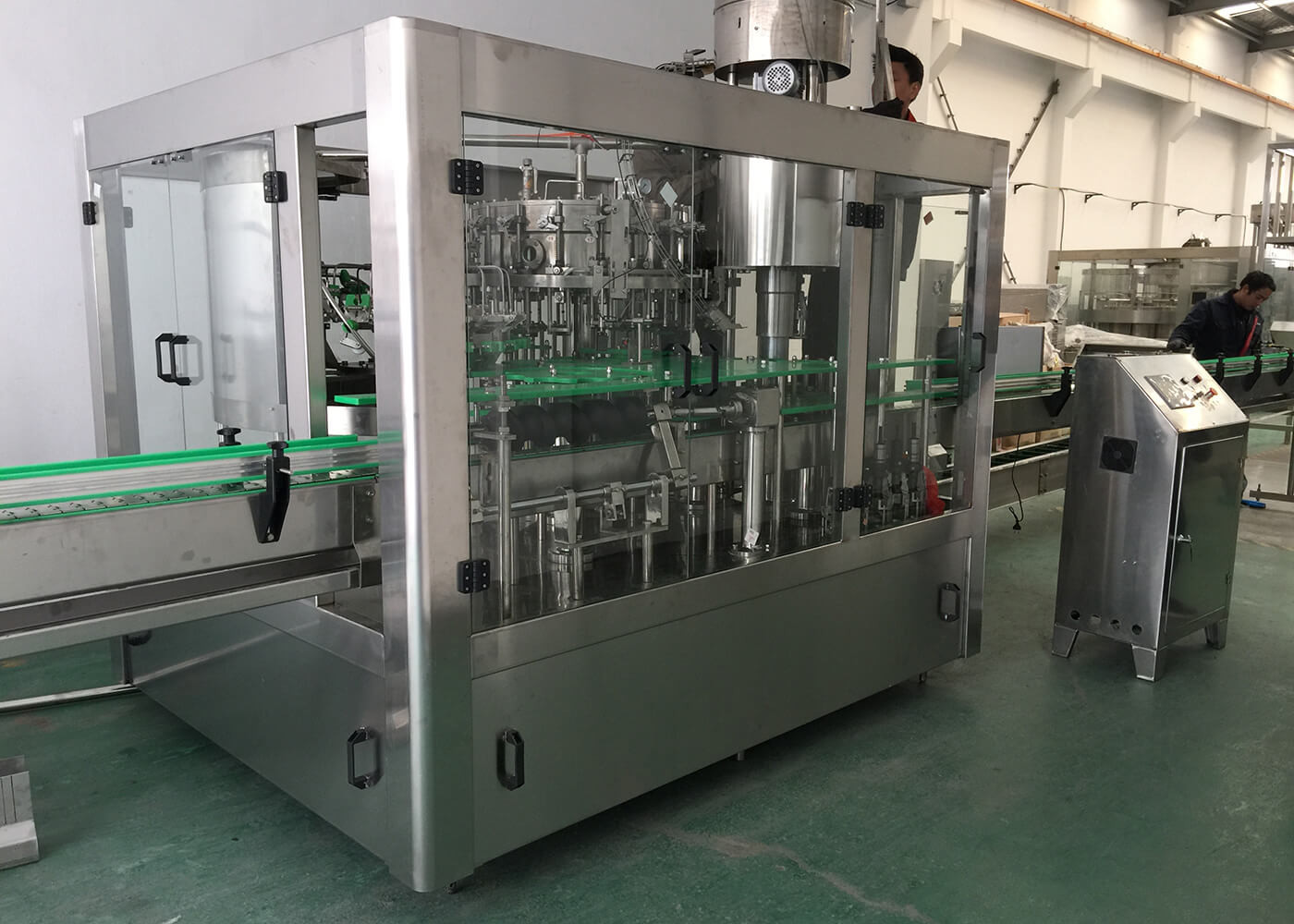

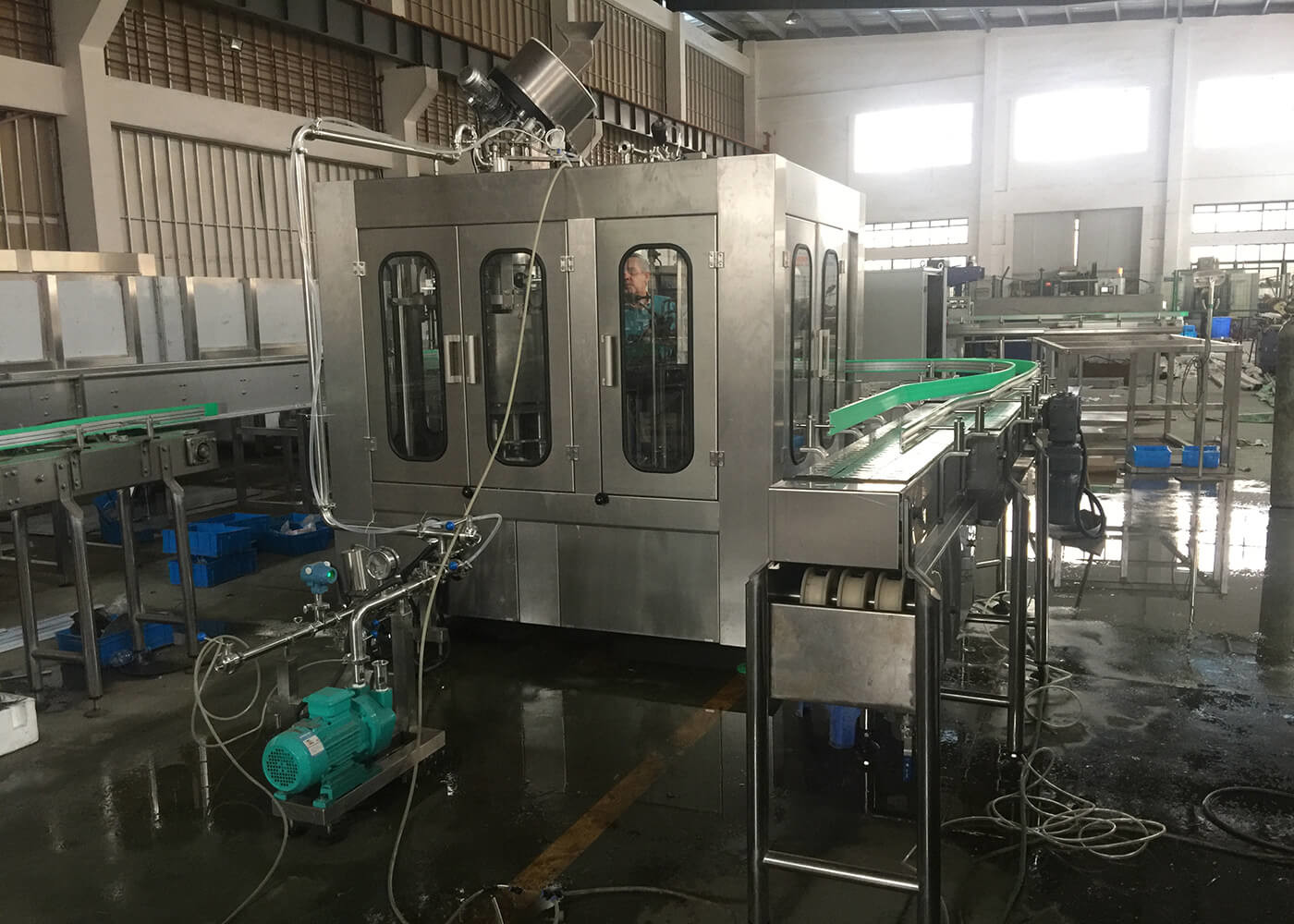

CO2 Carbonated Sparking Water Bottle Filling Equipment , Juice Filling Machine

CO2 Carbonated Sparking Water Bottle Filling Equipment , Juice Filling Machine

    • CO2 Carbonated Sparking Water Bottle Filling Equipment , Juice Filling Machine
    • CO2 Carbonated Sparking Water Bottle Filling Equipment , Juice Filling Machine
  • CO2 Carbonated Sparking Water Bottle Filling Equipment , Juice Filling Machine

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: DXGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 80 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Product Name: Bottled Drinking Water / Juice / Carbonated Drinks Filling Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Material: SUS304/316 Processing Types: Isobaric Filling
    Function: Bottle Washing Filling Capping Name: Automatic Soft Drink Or Carbonated Drink Filling Machine
    Warranty: 1 Year Packaging Type: Bottles



    PET Glass Bottle CO2 Carbonated Sparking Water Juice Beverage Drink Beer Isobaric Filling Bottling Machine



    Working procedure:



    Bottles are fed from air conveyor into the filling machine monoblock via starwheel. Bottle clamp installed on the rotary wheel of the rinser will grip bottle mouth and make a 180º turn along a guide track to face the bottle mouth downward. In designated section of the rinser, rinsing water will jet out from special nozzles to flush bottle inside wall. After rinsing and dripping, bottles gripped by bottle clamp will make another 180º turn along a guide track to resume bottle neck facing up position. Clean bottles are discharged out of the rinser by a starwheel to feed the filler. After entering the filler, bottles are retained by bell cover at the mouth, which are actuated by elevating cam to raise them to engage with filling valves, and bell-cover is also lift up at the same time. Filling valves are opened by bottle presence signals. After finishing filling, valves are closed by valve closing mechanism to further stop venting to complete the filling process. Bottle carrier mechanism is lowered by a cam to disengage filled bottles with filling valves. Then bottles are transferred into the capper by a neck handling starwheel. Anti-rotation blades on capping heads will seize the bottle neck to prevent it from rotation and hold it in an upright position. The screw capping head will make revolving and rotating movement along with the machine to finish the complete capping process of cap picking, placing, twisting and disengaging under the control of a cam. A discharge starwheel discharges finished bottles onto discharge conveyor belt to be conveyed out of the filling monoblock.



    Carbonated drinks filling line model :



    Model Filling Heads Capacity @ 500ml Bottle Size Power Dimension(mm) Weight(KG)
    DCGF14-12-5 12 2000BPH 200-2000ml 1.8KW 2200×1800×2000 2500
    DCGF18-18-6 18 3000BPH 200-2000ml 2.6KW 2500×1800×2300 3000
    DCGF24-24-8 24 6000BPH 200-2000ml 3.8KW 2800×2100×2300 5000
    DCGF32-32-10 32 8000BPH 200-2000ml 4.2KW 3500×2200×2300 6000
    DCGF40-40-10 40 10000BPH 200-2000ml 7KW 4760×2080×2300 7000
    DCGF50-50-12 50 13000BPH 200-2000ml 9KW 5150×3820×2700 10000
    DCGF60-6015 60 17000BPH 200-2000ml 13KW 5300×3950×2700 8500
    DCGF72-72-18 72 19000BPH 200-2000ml 16KW 6250×4773×2700

    8500



    CO2 Carbonated Sparking Water Bottle Filling Equipment , Juice Filling Machine
