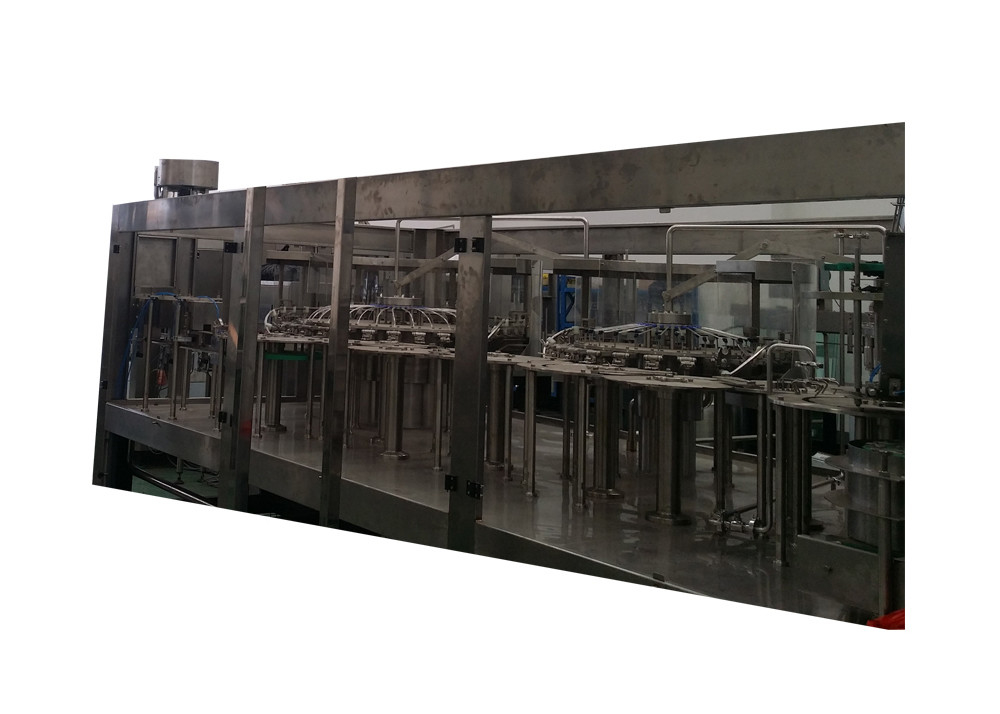

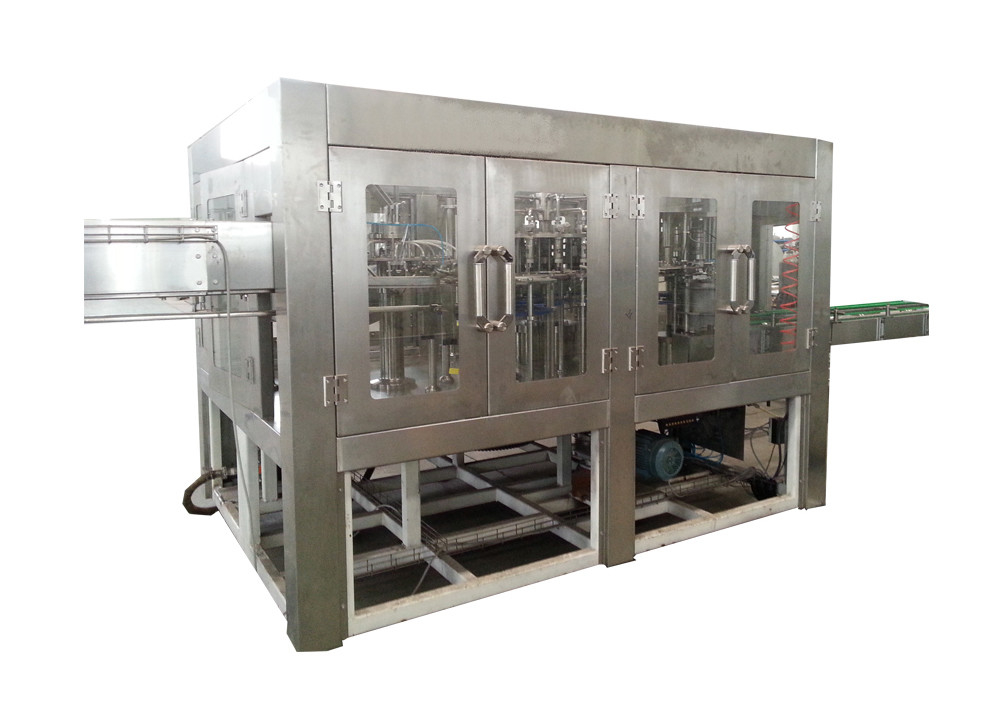

Electric Hot Juice Filling Machine Washing And Capping Of SUS304/ SUS 316L

Electric Hot Juice Filling Machine Washing And Capping Of SUS304/ SUS 316L

    • Electric Hot Juice Filling Machine Washing And Capping Of SUS304/ SUS 316L
    • Electric Hot Juice Filling Machine Washing And Capping Of SUS304/ SUS 316L
  • Electric Hot Juice Filling Machine Washing And Capping Of SUS304/ SUS 316L

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: RXGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 60 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Voltage: Can Be Designed Automatic Grade: Automatic
    Condition: New Driven Type: Electric
    Type: Filling Machine Application: Beverage
    After-sales Service Provided: Engineers Available To Service Machinery Overseas Packaging Material: Plastic
    Packaging Type: Bottles Warranty: 1 Year
    Material: SUS304/SUS 316L Function: Washing Filling Capping
    Name: Automatic Drink Filling Machine / Juice Filling Machine / Equipment Filling Material: Juice/Tea/Milk Etc.
    Filling Range: 200~2000ml Capacity: 5000-30000BPH



    Automatic Hot Filling Juice Tea Beverage Washing Filling Capping Bottling Packaging Machine



    Introduction:


    Hot filling machine is the standard 3-in-1 monoblock. But to the special production condition, another sanitizer rinsing could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics( such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.

    Technical features:


    1, Full filling is to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.
    2, Reasonable structured storage hopper and material supply system keep the material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted.
    3, The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
    4, Sanitary filling head system is of umbrella structure, high filling speed.
    5, Perfect filling temperature control system.
    6, Return tank system has the function of supplying the material automatically.
    7, Perfect CIP system

    The complete line includes:


    Water treatment system;
    Beverage pretreatment system;
    Blow molding system;
    Filling system;
    Downstream packaging system: Labeling machine, packing machine, palletizing system, etc.



    Technical parameters:



    Technical Parameters:
    Number of Filling Valves 12,16,24, 32, 40, 50, 60, 72,
    Filling Speed 5, 000-30, 000BPH (500ml)
    Type of Bottles PET Bottles of various shapes
    Bottle Height 150-320(mm)
    Bottle Diameter φ 50-110(mm)
    Filling Temperature Hot Filling
    Filling Principle Gravity Filling
    Filling Product Apple juice, orange juice, flavored milk, tea drinks, energy drinks, vitamin drinks and etc.



    Electric Hot Juice Filling Machine Washing And Capping Of SUS304/ SUS 316L
