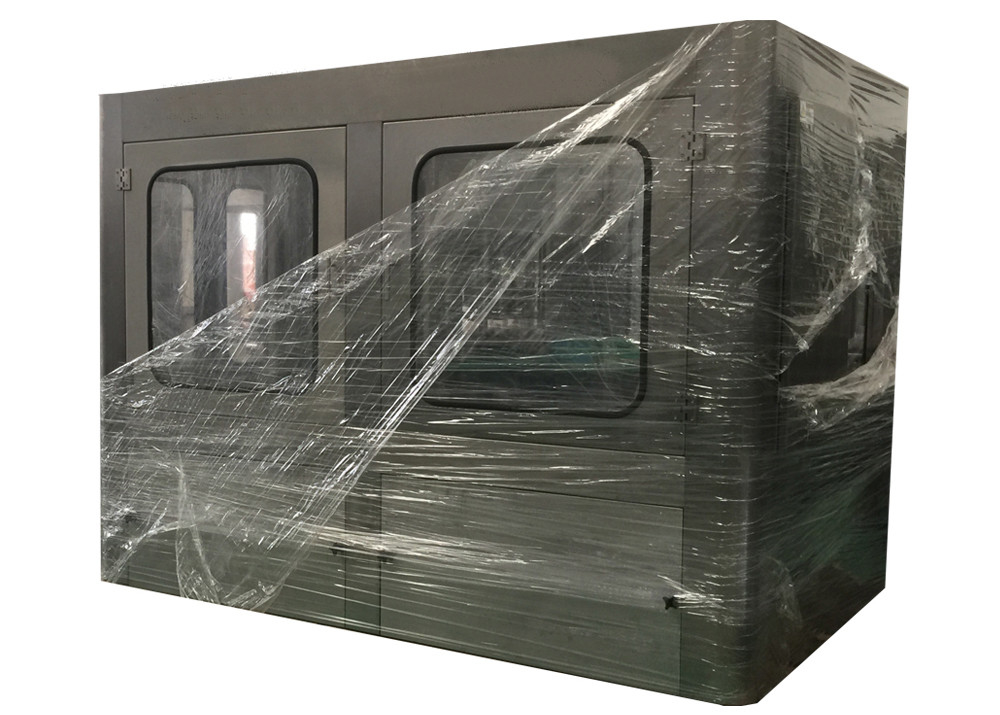

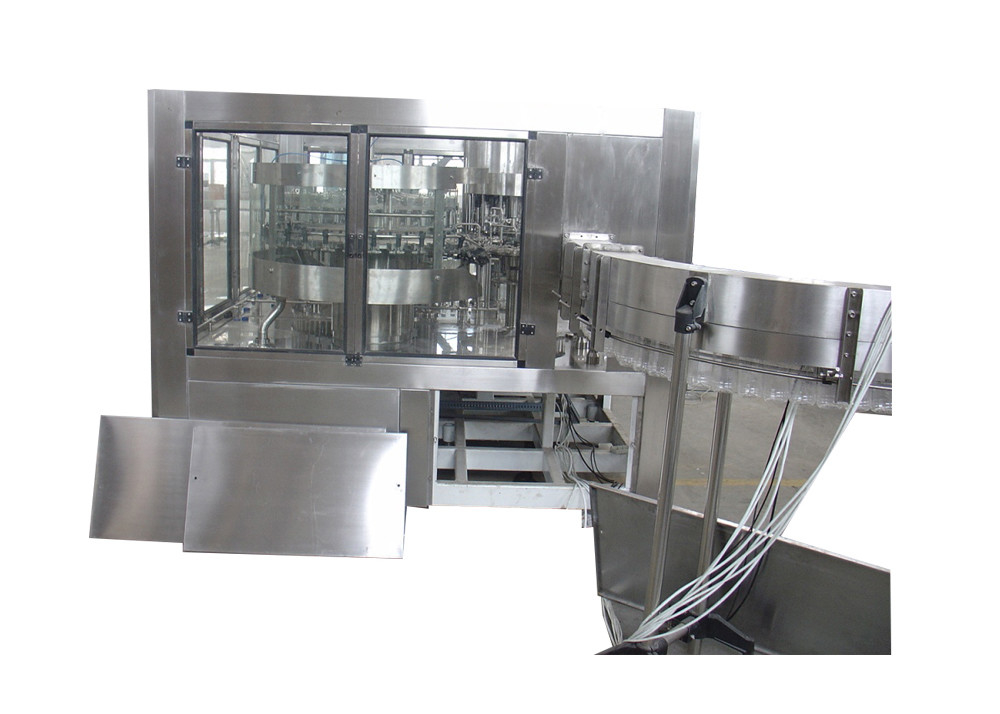

PET Bottling Juice Filling Machine , Rinsing Filling Capping Monoblock Machinery

PET Bottling Juice Filling Machine , Rinsing Filling Capping Monoblock Machinery

    • PET Bottling 	Juice Filling Machine , Rinsing Filling Capping Monoblock Machinery
    • PET Bottling 	Juice Filling Machine , Rinsing Filling Capping Monoblock Machinery
  • PET Bottling 	Juice Filling Machine , Rinsing Filling Capping Monoblock Machinery

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: RXGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 60 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Condition: New Driven Type: Electric
    Type: Filling Machine Application: Beverage
    After-sales Service Provided: Engineers Available To Service Machinery Overseas Packaging Material: Plastic
    Packaging Type: Bottles Warranty: 1 Year
    Material: SUS304/SUS 316L Function: Washing Filling Capping
    Name: Automatic Drink Filling Machine / Juice Filling Machine / Equipment Filling Material: Juice/Tea/Milk Etc.
    Filling Range: 200~2000ml Capacity: 5000-30000BPH

    Fully Automatic PET Bottling Juice /Tea /Flavored Rinsing Filling Capping Monoblock/Juice Filler Machinery


    Description:

    3-in-1 filling machine, combined with rinsing, filling and capping. It is innovated and designed in the requirement of non-carbonated energy drinks, juice, tea, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.

    Main features:

    Rinser

    Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° Along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.

    Rinsing machine adopts Sunswell original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.

    Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15 deg; Angle ensures to wash all side of the bottle, and can save the water.

    Filler

    The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ± 2mm.
    The filling valve material is SUS304
    The filling system has liquid level automatic control.
    Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it start to fill.
    Bottle is conveying by the wheel in the filling part.
    The juice or other hot beverage can be backflow by return tank to control filling temperature.

    Capper

    Screw capping machine is most precision part in the 3-in-1 machine, it has a big influence to the goods stability and defective rate. Our screw capping has following feature.

    Equipment structure:

    Base
    Rotary rinser
    Rotary filler
    Rotary capper
    Bottle infeed and outfeed system
    Control


    Technical parameters:


    Technical Parameters:
    Number of Filling Valves 12,16,24, 32, 40, 50, 60, 72,
    Filling Speed 5, 000-30, 000BPH (500ml)
    Type of Bottles PET Bottles of various shapes
    Bottle Height 150-320(mm)
    Bottle Diameter φ 50-110(mm)
    Filling Temperature Hot Filling
    Filling Principle Gravity Filling
    Filling Product Apple juice, orange juice, flavored milk, tea drinks, energy drinks, vitamin drinks and etc.


    PET Bottling 	Juice Filling Machine , Rinsing Filling Capping Monoblock Machinery
