|Place of Origin:||Jiangsu, China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case|
|Delivery Time:||60 days after receiving down payment|
|Payment Terms:||L/C, T/T|
|Supply Ability:||10 sets/month|
|Type:||Filling Machine||Driven Type:||Electric|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas||Warranty:||1 Year|
|Material:||SUS304/SUS 316L||Function:||Washing Filling Capping|
|Name:||Automatic Drink Filling Machine / Juice Filling Machine / Equipment||Capacity:||5000-30000BPH|

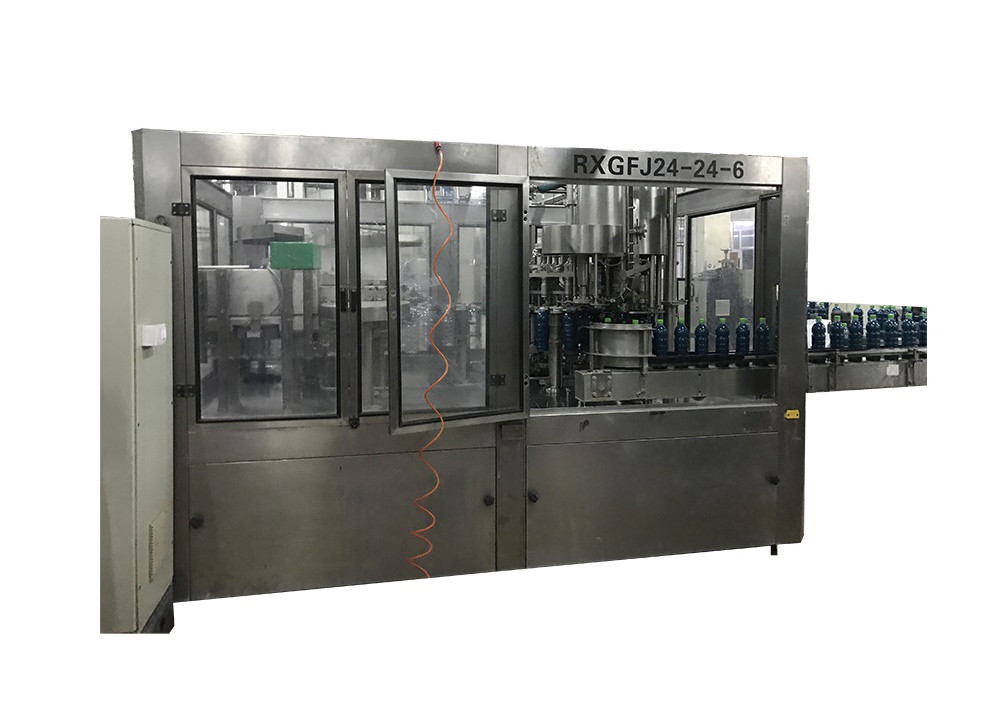

Automatic Liquid Beverage Juice/Tea/Milk Hot Filling Bottling Packaging A-Z Production Line for Sale
The machine is mainly used for washing/filling/capping PET bottle juice, tea drinks and all kinds of energy drink for hot filling. Only need to change a few spare parts, that can suitable for filling pure water and mineral water.
- Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° Along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
- Rinsing machine adopts Sunswell original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.
- Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° Angle ensures to wash all side of the bottle, and can save the water.
- The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ± 2mm.
- The filling valve material is SUS304
- The filling system has liquid level automatic control.
- Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it start to fill.
- Bottle is conveying by the wheel in the filling part.
- The juice or other hot beverage can be backflow by return tank to control filling temperature.
Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. Our screw capping has following feature.
1) Sunswell import of advanced technology of screw capping, improve the stability and reliability of the screw capping machine. The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
2) In the screw capping part. It installed photoelectrical control, when it has no cap, or the cap is bad, the machine will stop automatically
4. Equipment structure

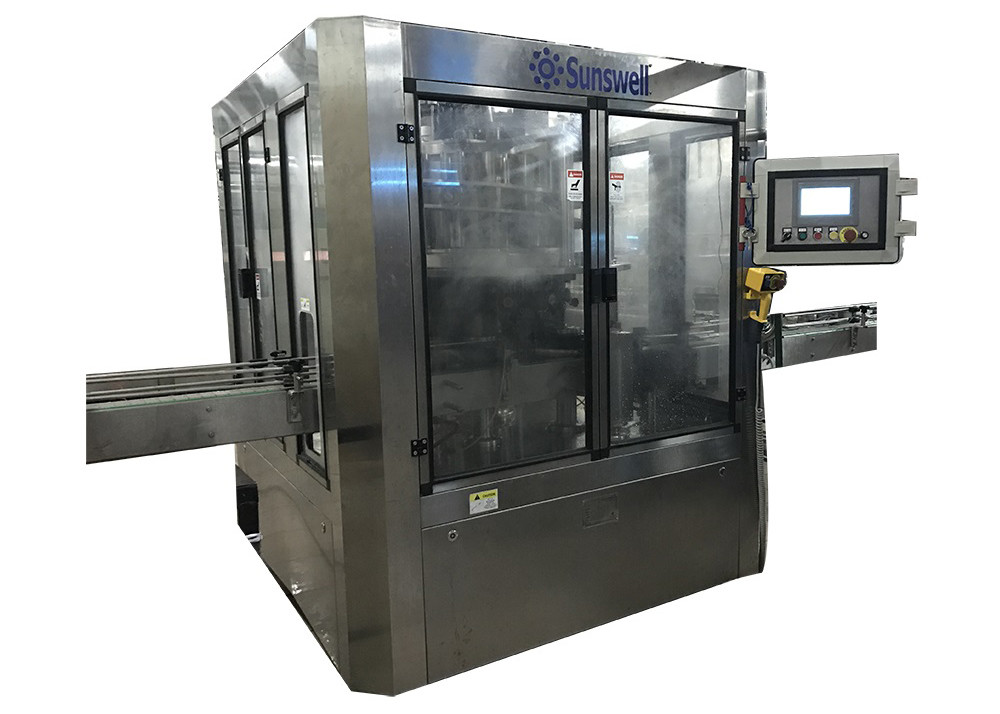

L Rotary rinser
L Rotary filler
L Rotary capper
L Bottle infeed and outfeed system
Professional Bottles Juice Making Equipment/Fresh Juice Filling Machine
5. Main configuration
L Touch screen: THINGET
L PLC program controller: Mitsubishi
L Inverter: Mitsubishi
L Photoelectrical controller: Autonics
L Proximity switch: Autonics
L Other electrical components: Schneider
L Pneumatic component: Airtac
L Water pump: Nanfang
L Main motor: Siemens
L Bearing: Harbin
|Number of Filling Valves||12,16,24, 32, 40, 50, 60, 72,|
|Filling Speed||5, 000-30, 000BPH (500ml)|
|Type of Bottles||PET Bottles of various shapes|
|Bottle Diameter||φ 50-110(mm)|
|Filling Temperature||Hot Filling|
|Filling Principle||Gravity Filling|
|Filling Product||Apple juice, orange juice, flavored milk, tea drinks, energy drinks, vitamin drinks and etc.|
