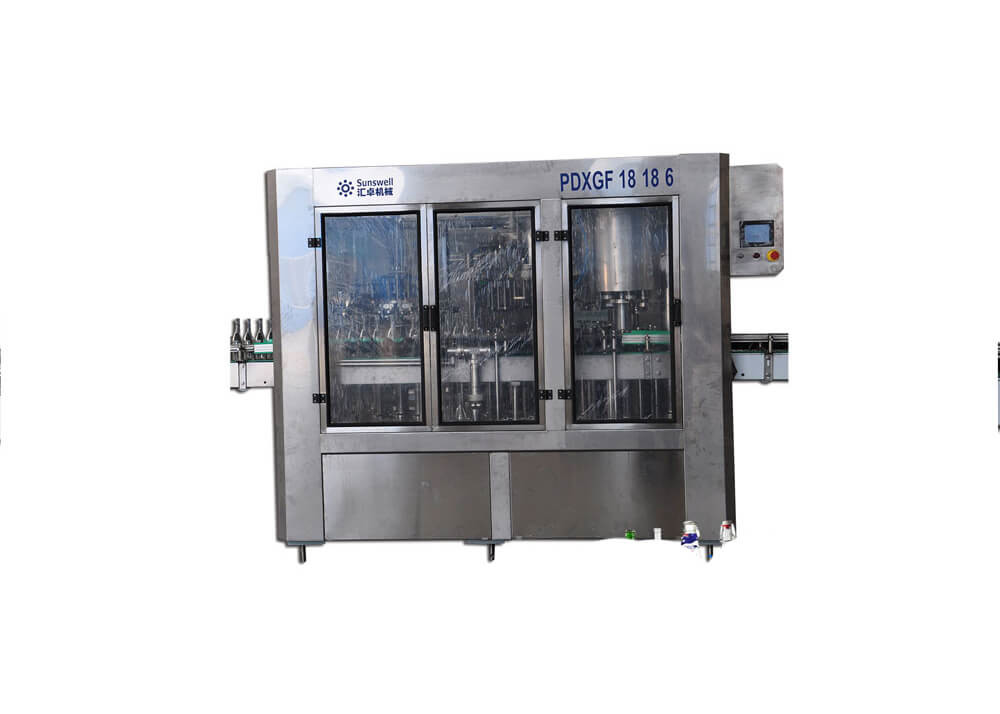

Full Automatic Glass Bottle Beer Washing Filling Capping Machine With Crown Cap Bottling Plant

Full Automatic Glass Bottle Beer Washing Filling Capping Machine With Crown Cap Bottling Plant

    • Full Automatic Glass Bottle Beer Washing Filling Capping Machine With Crown Cap Bottling Plant
    • Full Automatic Glass Bottle Beer Washing Filling Capping Machine With Crown Cap Bottling Plant
    • Full Automatic Glass Bottle Beer Washing Filling Capping Machine With Crown Cap Bottling Plant
  • Full Automatic Glass Bottle Beer Washing Filling Capping Machine With Crown Cap Bottling Plant

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: BDXGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 60 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Voltage: 220V/380V Condition: New
    Type: Filling Machine Packaging Type: Bottles
    Application: Beverage After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Packaging Material: Wood Automatic Grade: Automatic
    Driven Type: Electric Warranty: 1 Year
    Material: Stainless Steel 304/316 Name: 3 In 1 Beer Filling Machine
    Function: Bottle Beer Washing Filling Capping Filling Material: Beer

    Full Automatic Glass Bottle Carbonated Drinks Beer Washing Filling Capping Machine with Crown Cap Bottling Plant



    General description:


    Sunswell beer washing filling capping 3-in-1 unit has the latest technology in accordance with the technological requirements for packaging beer in glass bottles by adopting advanced technologies both at home and abroad. Meanwhile, we are able to provide complete high-efficiency beer filling production line for the beer breweries.

    Our beer filling machine is the introduction of German technology, through digestion and absorption, combined with the characteristics of China's beer industry, beer filling and capping designed washing equipment, this machine adopts gear transmission. Stable conveying, filling is stable and reliable, convenient adjustment, the machine is set with automatic control for bottle and no bottle cap and no cap, stable performance.Advanced technology.The whole size can be accommodated in standard containers for convenient transportation.
    We use double vacuum pumping technology to minimize the content of Oxygen to keep the taste of beer fresh and shelf life time long.

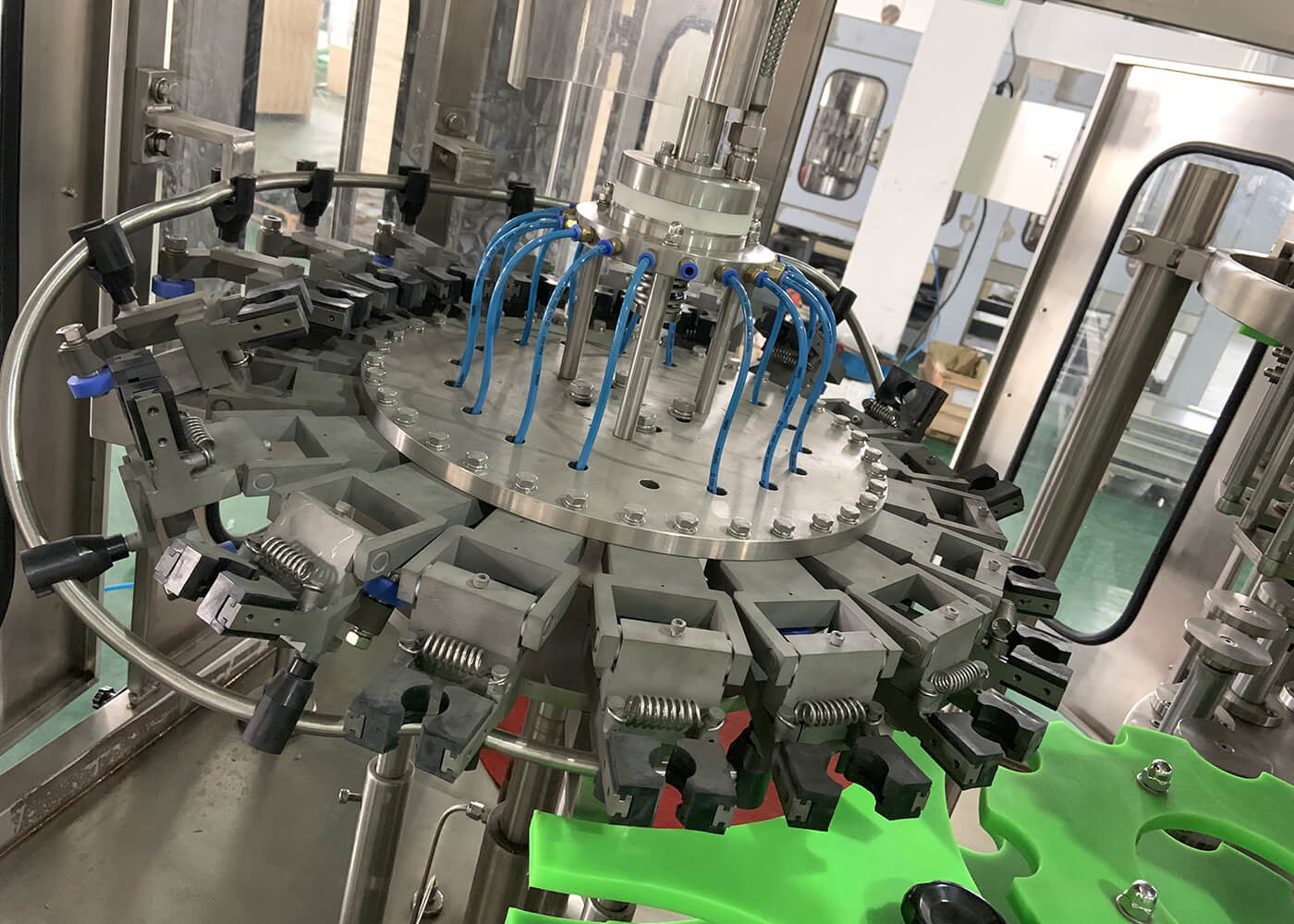

    Rinser:


    The new bottle is transported through the separation screw and starwheel by the clamp and turn over device; bottle neck is held up words, after aseptic water rinsing, the bottle neck goes up and transported to another process.



    Filling machine part:


    A. Filling valve adopts double vacuum to avoid oxygen left in bottles and prolong beer shelf life, with isobaric mechanical valve, High speed and big flow, the high accuracy filling valve, filling speed fast, the liquid level is stable.
    B. Main drive adopt gear drive independent, high efficiency, small noise, long life, maintenance-free, transducer can control the main motor speed, the machine adopt Variable-frequency variable speed, whole operations area, motor base is stainless steel contain carbon steel.
    C. Guide bottle system, simple structure, according to bottle style ,can change
    D. The whole machine can be controlled automatically by PLC.
    E. Filling product liquid level height adopts liquid level probe control, liquid level steady, filling reliable.
    F. The machine important parts and electrical elements is import production.
    G. Filling product can be controlled automatically and have CIP washing connector.

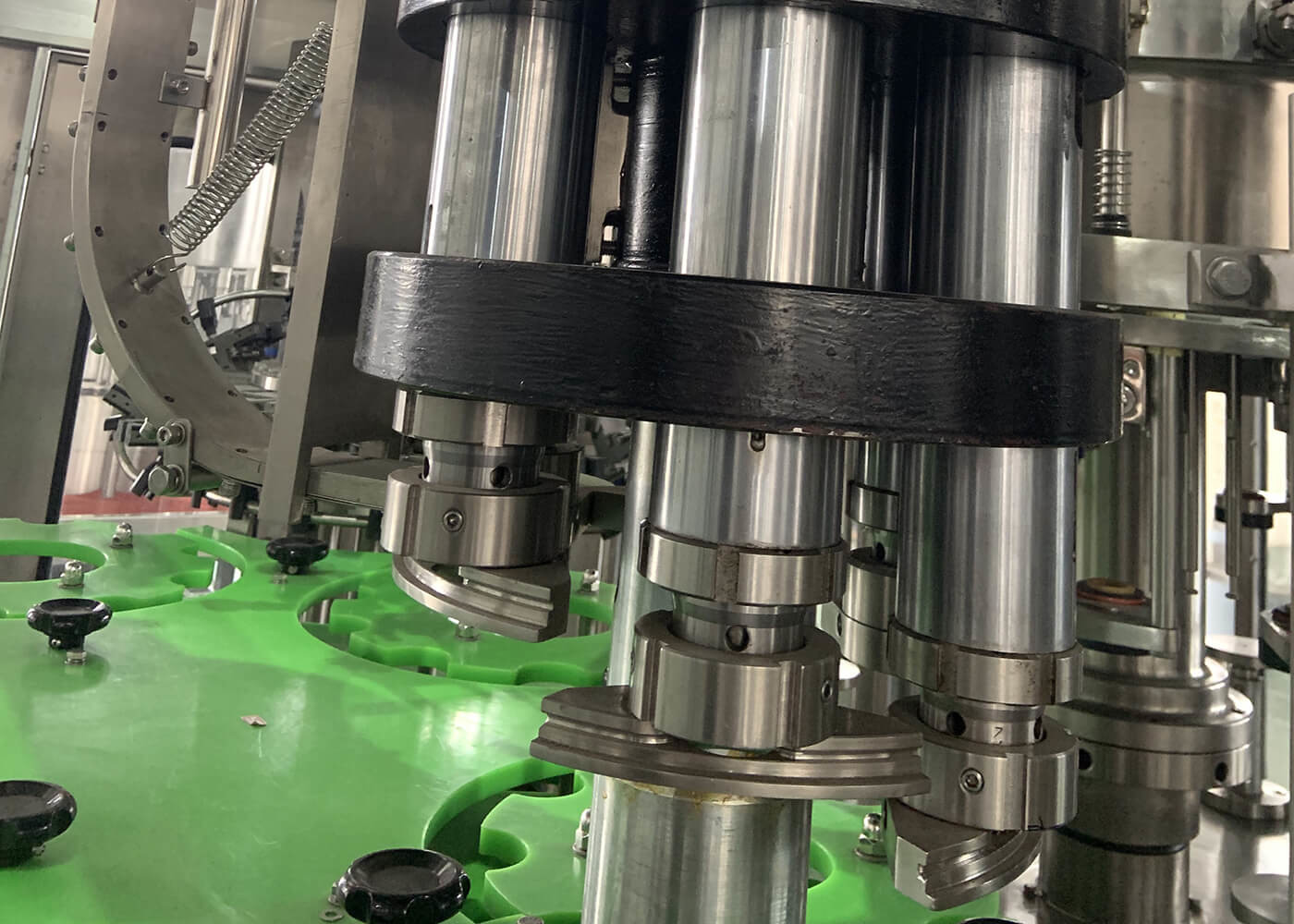

    Crown cap capping part:


    The bottle into the click wheel through the transition card bottleneck Capping Machine. Rotary Capping Machine knife stuck on the only bottleneck location, keeping the bottle upright and prevent rotation. Capping Machine Capping head to remain in the revolution and rotation, under the action of the cam to achieve grasping cap, capping, press cap, cap off action, complete the capping process. Management Capping Machine is located in the top cover, through drop-cap rail and cover plate connected Capping Machine allocated. Finished bottle through the bottle capping machine sent from the click wheel to the bottle conveyor chains, conveyor chains send out the triple play by the filling machine, into the next process.



    Beer bottling line Main configuration:


    1) Material of filling valve: Stainless steel SUS316L.
    2) Material of rotary tray and machine platform of rinser and filler: Stainless steel SUS304.
    3) Main motor: Simens
    4) Sliding bearing: Igus.
    5) Frequency inverter: Mitsubishi.
    6) Touch screen: Mitsubishi
    7) PLC: Mitsubishi.
    8) Pneumatic components: Airtac.

    Beer bottling line Parameter:



    Model Capacity Power Dimension Weight
    GF 18-18-6 6000BPH 1.5KW 2000X1600x2550 3000
    GF 24-24-8 9000BPH 3KW 2200x1820x2550 3500
    GF32-32-8 12000BPH 4 KW 2300x2030x2550 4000
    GF 40-40-10 15000BPH 5KW 2500x2200x2550 4500



    Full Automatic Glass Bottle Beer Washing Filling Capping Machine With Crown Cap Bottling Plant
