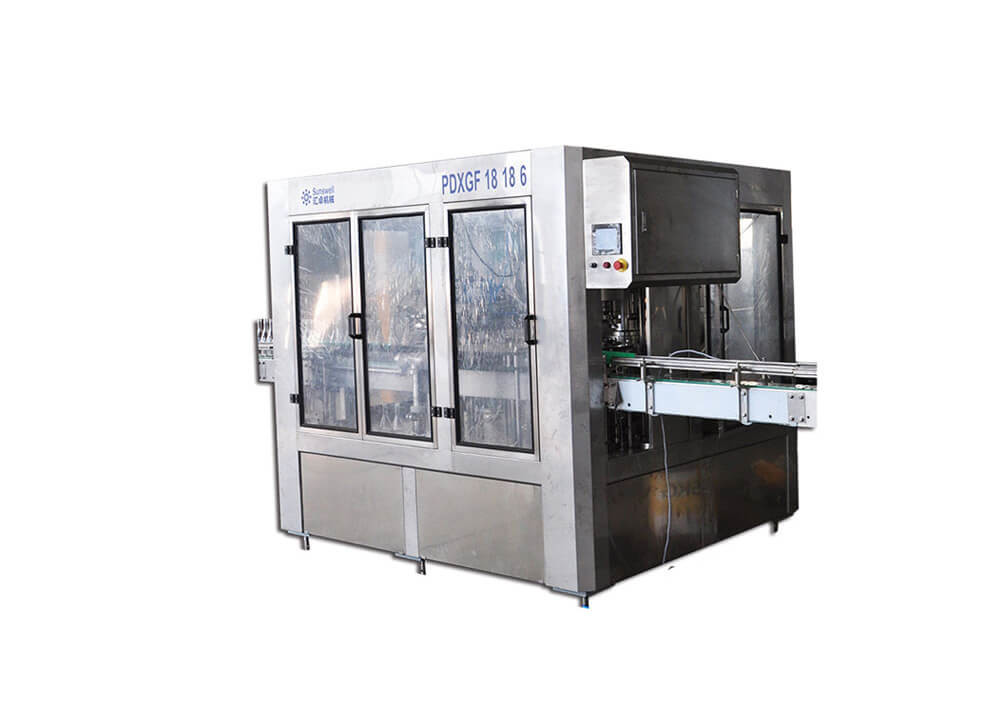

Glass Bottled Carbonated Beer Filling Machine Rinsing Capping 3 In 1 Packing Equipment

Glass Bottled Carbonated Beer Filling Machine Rinsing Capping 3 In 1 Packing Equipment

    • Glass Bottled Carbonated Beer Filling Machine Rinsing Capping 3 In 1 Packing Equipment
    • Glass Bottled Carbonated Beer Filling Machine Rinsing Capping 3 In 1 Packing Equipment
    • Glass Bottled Carbonated Beer Filling Machine Rinsing Capping 3 In 1 Packing Equipment
  • Glass Bottled Carbonated Beer Filling Machine Rinsing Capping 3 In 1 Packing Equipment

    Product Details:

    Place of Origin: Jiangsu, China
    Brand Name: Sunswell
    Certification: CE SGS
    Model Number: BDXGF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden case
    Delivery Time: 60 days after receiving down payment
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets/month
    Contact Now
    Detailed Product Description
    Voltage: 220V/380V Type: Filling Machine
    After-sales Service Provided: Engineers Available To Service Machinery Overseas Packaging Material: Wood
    Automatic Grade: Automatic Driven Type: Electric
    Material: Stainless Steel 304/316 Name: 3 In 1 Beer Filling Machine
    Function: Bottle Beer Washing Filling Capping Filling Material: Beer



    China Glass Bottled Carbonated Beer Rinsing Filling Capping 3-in-1 Packing Equipment for Bottling Plant



    Rinser:


    The new bottle is transported through the separation screw and starwheel by the clamp and turn over device; bottle neck is held up words, after aseptic water rinsing, the bottle neck goes up and transported to another process.

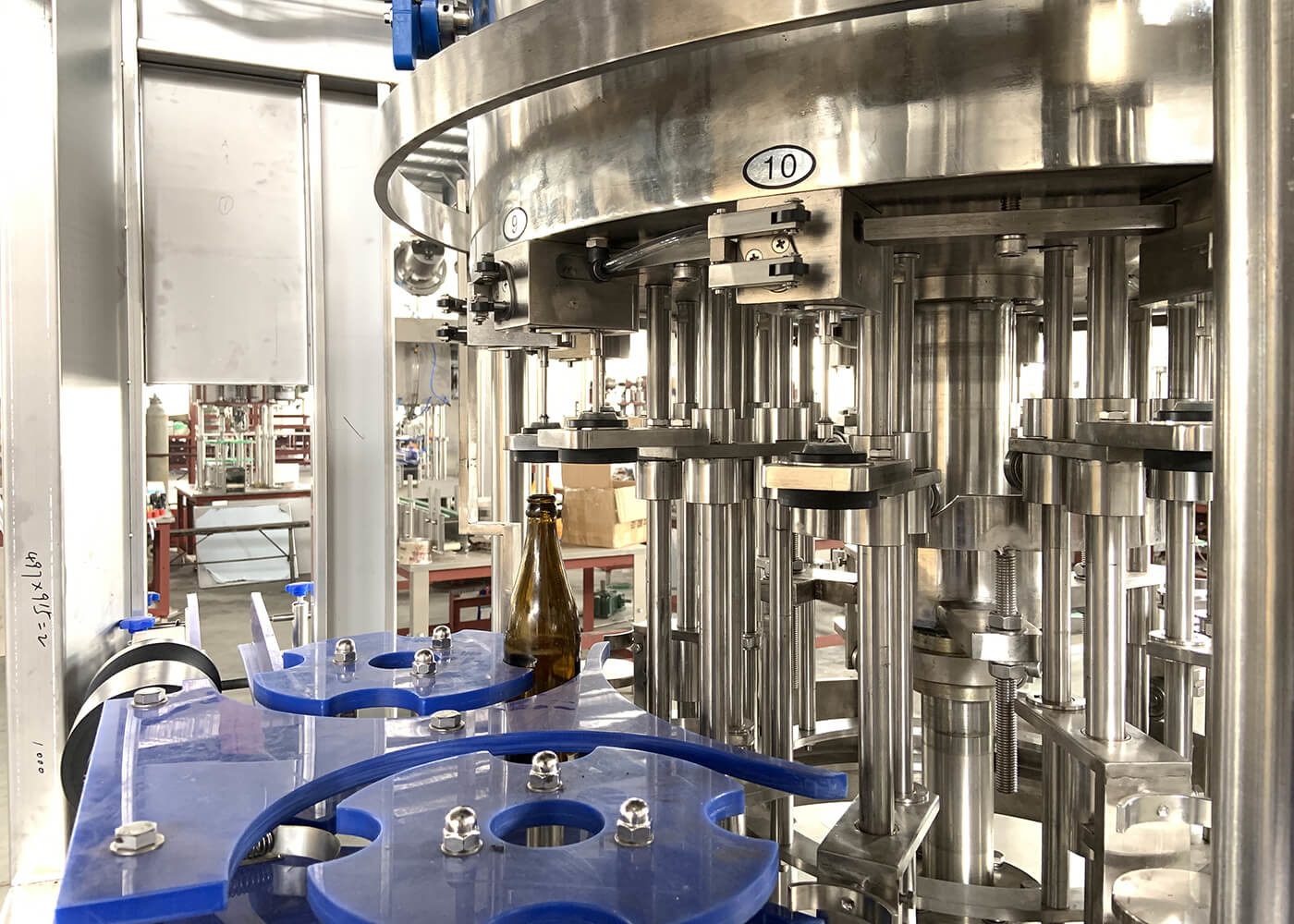

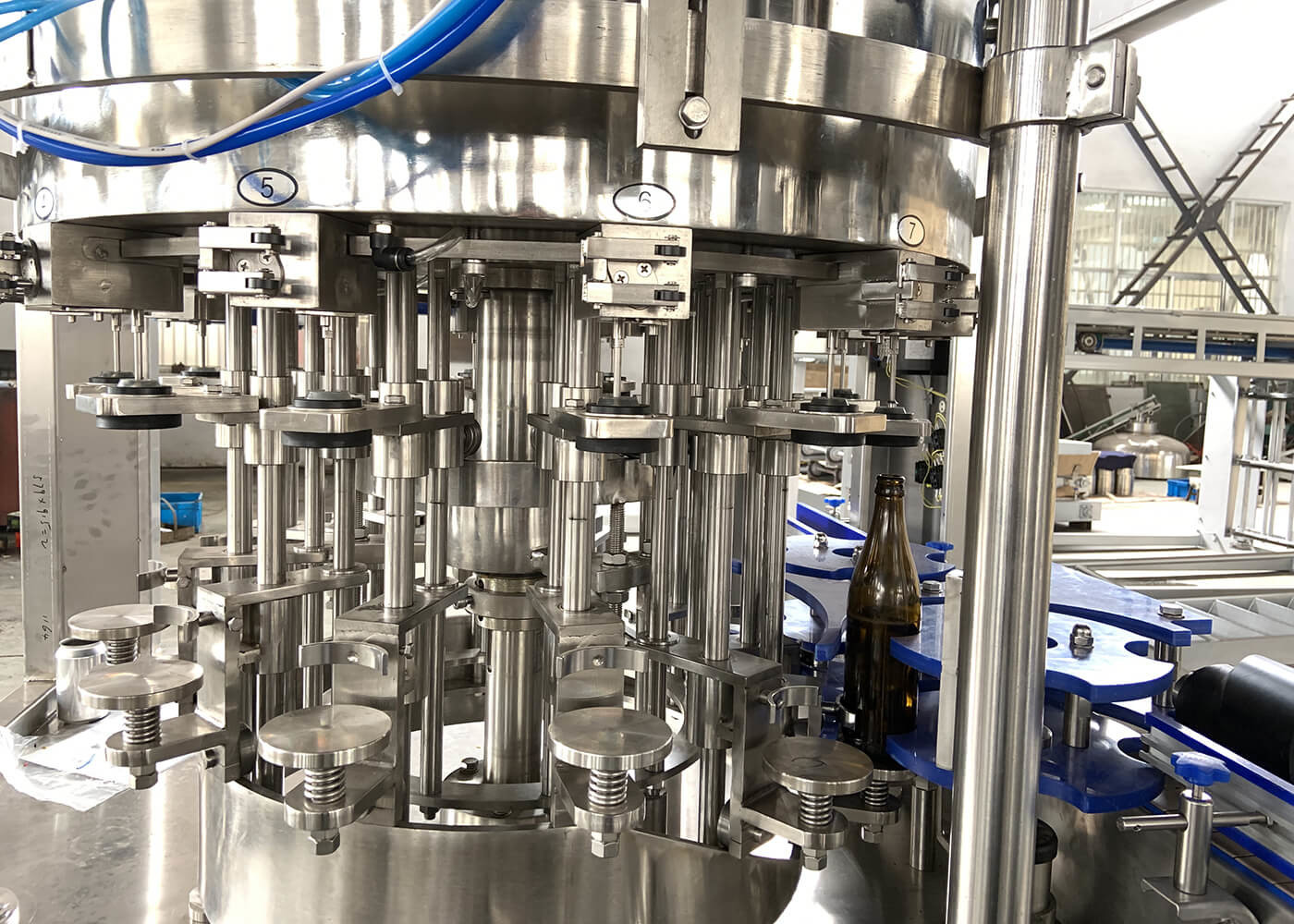

    Filler:


    A. Filling valve adopts double vacuum to avoid oxygen left in bottles and prolong beer shelf life, with isobaric mechanical valve, High speed and big flow, the high accuracy filling valve, filling speed fast, the liquid level is stable.
    B. Main drive adopt gear drive independent, high efficiency, small noise, long life, maintenance-free, transducer can control the main motor speed, the machine adopt Variable-frequency variable speed, whole operations area, motor base is stainless steel contain carbon steel.
    C. Guide bottle system, simple structure, according to bottle style ,can change
    D. The whole machine can be controlled automatically by PLC.
    E. Filling product liquid level height adopts liquid level probe control, liquid level steady, filling reliable.
    F. The machine important parts and electrical elements is import production.
    G. Filling product can be controlled automatically and have CIP washing connector.



    Capper:


    The bottle into the click wheel through the transition card bottleneck Capping Machine. Rotary Capping Machine knife stuck on the only bottleneck location, keeping the bottle upright and prevent rotation. Capping Machine Capping head to remain in the revolution and rotation, under the action of the cam to achieve grasping cap, capping, press cap, cap off action, complete the capping process. Management Capping Machine is located in the top cover, through drop-cap rail and cover plate connected Capping Machine allocated. Finished bottle through the bottle capping machine sent from the click wheel to the bottle conveyor chains, conveyor chains send out the triple play by the filling machine, into the next process.



    Beer bottling line Parameter:



    Model Capacity Power Dimension Weight
    GF 18-18-6 6000BPH 1.5KW 2000X1600x2550 3000
    GF 24-24-8 9000BPH 3KW 2200x1820x2550 3500
    GF 32-32-8 12000BPH 4 KW 2300x2030x2550 4000
      GF 40-40-10 15000BPH 5KW 2500x2200x2550 4500



    Glass Bottled Carbonated Beer Filling Machine Rinsing Capping 3 In 1 Packing Equipment
