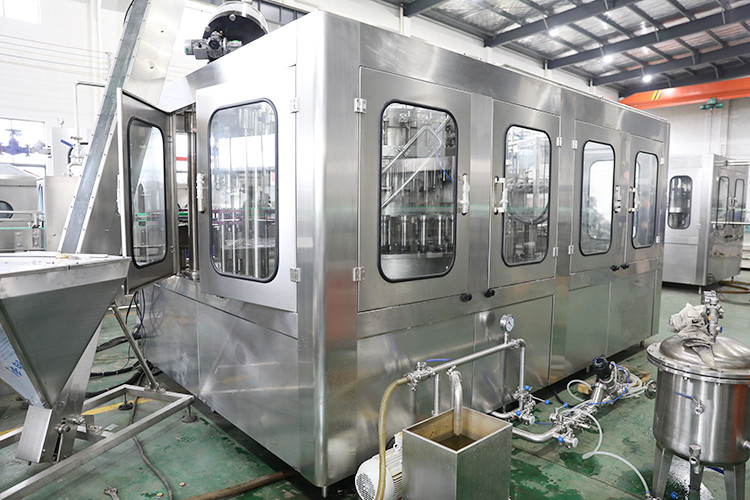

Alcoholic Drink Brewery Winery Beer Filling Machine Washing Capping Production Line

Alcoholic Drink Brewery Winery Beer Filling Machine Washing Capping Production Line

    • Alcoholic Drink Brewery Winery Beer Filling Machine Washing Capping Production Line
    • Alcoholic Drink Brewery Winery Beer Filling Machine Washing Capping Production Line
  • Alcoholic Drink Brewery Winery Beer Filling Machine Washing Capping Production Line

    Product Details:

    Place of Origin: China
    Brand Name: PET ALL
    Certification: CE&ISO
    Model Number: sunswell

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Wooden packing
    Delivery Time: 7 days
    Payment Terms: T/T, LC,WESTERN UNION
    Supply Ability: 100 sets per year
    Contact Now
    Detailed Product Description
    Voltage: 220V/380V Condition: New
    Packaging Type: Bottles Application: Beverage
    Packaging Material: Glass Automatic Grade: Automatic
    Function: Filling Machine Filling Material: Beer

    Automatic Glass Bottle alcoholic drink Brewery Winery Beer Washing Filling Capping Machine production line





    Sunswell Beer Bottling Machine adopts the advanced international technology .The design is scientific and reasonable ,appearance is beautiful ,operation and maintenance are convenient ,and it is with high degree of automatization. It is the good machine for choosing by the drinking filling factory.



    1.Structural Features



    1. Adopt compressed air drying system to blow the water droplets. The plastic buffering clippers holds the bottle body to convey and protect the glass bottles.
    2. Adopt bottle bottom holding and micro-negative-pressure filling type. The filling level is steady and speed stable, without leakage.
    3. Adopt alarm devices for bottle jam, bottle shortage, bottle damage, cap shortage, over loading etc. in several places. The device helps to ensure the quality of its production.
    4. Easy operation. For the bottles with same diameter but a little difference in height, the 3in1 monobloc do not need changing exchanging parts. It just needs to adjust height of drying/filling/capping valves, so that time is saved and maintenance more convenient.
    5. Independent electricity box makes sure every electrical appliance works smoothly.





    2. Main technical parameters



    Washing heads: 18 (diameter: Φ 640)
    Filling valve heads: 18 (diameter: Φ 640)
    Capping heads: 6 (diameter: Φ 240)
    Capacity: 3000 bottle per hour
    Applicable bottle: Bottle height 200~350mm;
    DiameterΦ 52~Φ 84mm
    Asepsisair consumption: 0.4m3/min(0.4~0.6Mpa)
    CO2 consumption: 18g/100L
    Water consumption: Vacuum pump 0.2m3/h; Blowing 0.3m3/h
    Operating voltageAC 380V
    Controling voltageDC 24V

    Power:
    Main motor 2.2 KW
    Hopper motor 0.37KW
    Vacuum motor 0.75 KW
    Spray pump 0.55Kw (buyer prepare)
    Electric Chain motor 0.75Kw (buyer prepare)
    Overall dimension: 2300× 1800× 2300(L× W× H)
    Weight: 3000 Kg





    3. Main equipments


    1 Touch Screen: Mitsubishi
    2 PLC controllerInverters: Mitsubishi
    3 Proximity switches, contactors, circuit breakers: Japan's Omron
    4 Cylinder, solenoid valve: Taiwan





    Model XGF 12/6 XGF 18/6 XGF 24/8 XGF 32/8
    Capacity 1000-1200 2000-3000 4000-5000 6000-8000
    Motor power 1.5 1.5 3.75 5.6
    Dimension 1700x1150x2300 1800x1350x2300 1900x1600x2500 2100x1850x2500
    Total weight 2000 2400 3000 3500



    Alcoholic Drink Brewery Winery Beer Filling Machine Washing Capping Production Line
