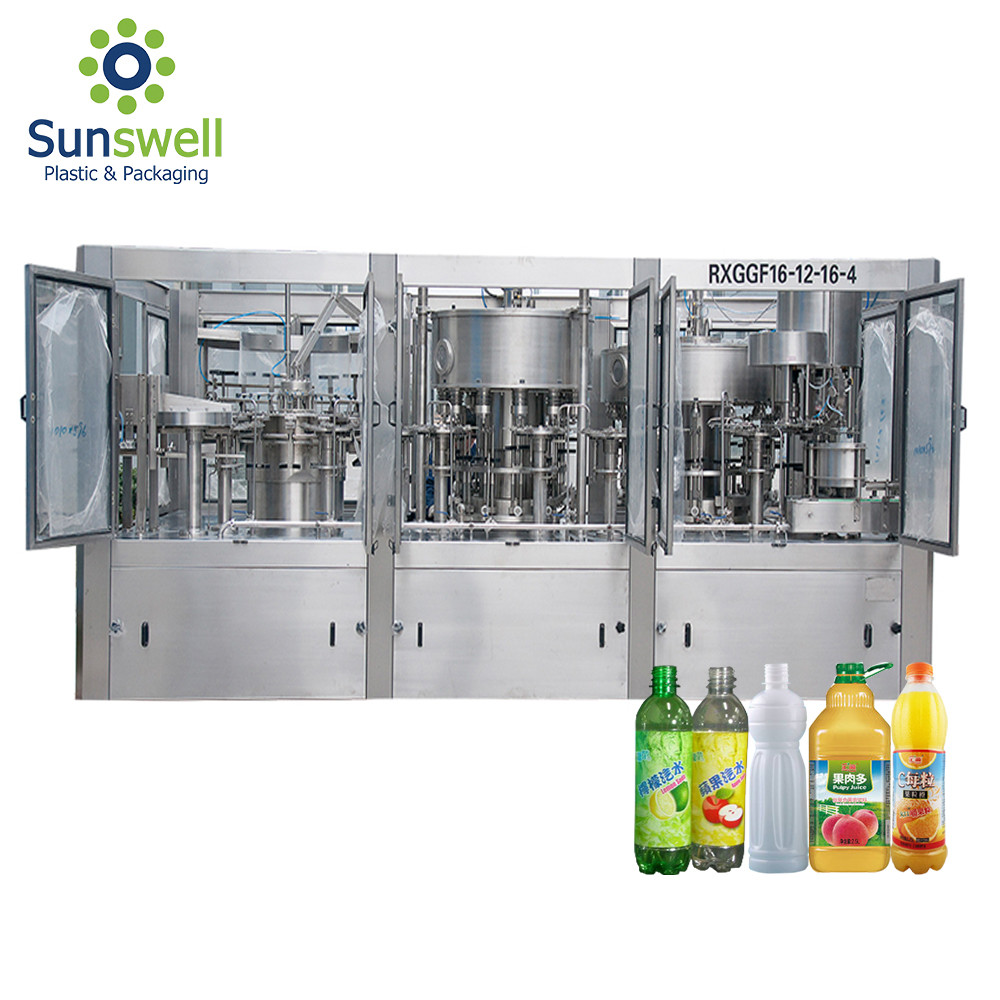

Advanced Technology Juice Filling Machine Rotary Washer Filler Capper 3 In 1 Monoblock

Advanced Technology Juice Filling Machine Rotary Washer Filler Capper 3 In 1 Monoblock

    • Advanced Technology Juice Filling Machine Rotary Washer Filler Capper 3 In 1 Monoblock
    • Advanced Technology Juice Filling Machine Rotary Washer Filler Capper 3 In 1 Monoblock
  • Advanced Technology Juice Filling Machine Rotary Washer Filler Capper 3 In 1 Monoblock

    Product Details:

    Place of Origin: China
    Brand Name: Sunswell
    Certification: CE,ISO,SGS
    Model Number: Depend on capacity

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD 15000 per unit
    Packaging Details: Standard export wooden case
    Delivery Time: 45 days
    Payment Terms: L/C, T/T
    Supply Ability: 100 units per year
    Contact Now
    Detailed Product Description
    Automatic Grade: Automatic Driven Type: Electric
    Voltage: 220V/380V Application: Beverage
    Function: Washing/filling/capping Type: Filling Machine
    Filling Material: Juice/Tea/Milk Etc. Material: Stainless Steel,SUS304/SUS 316L
    Capacity: 2000-30000bph Packaging Type: Bottles,Cans
    Warranty: 12 Months After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Installation
    High Light:

    automatic filling machine

    ,

    juice filling machines



    Advanced Technology Juice Filling Machine Rotary Washer Filler Capper 3 In 1 Monoblock



    Products Description:

    The machine is mainly used for washing/filling/capping PET bottle juice, tea drinks and all kinds of energy drink for hot filling. Only need to change a few spare parts, that can suitable for filling pure water and mineral water.

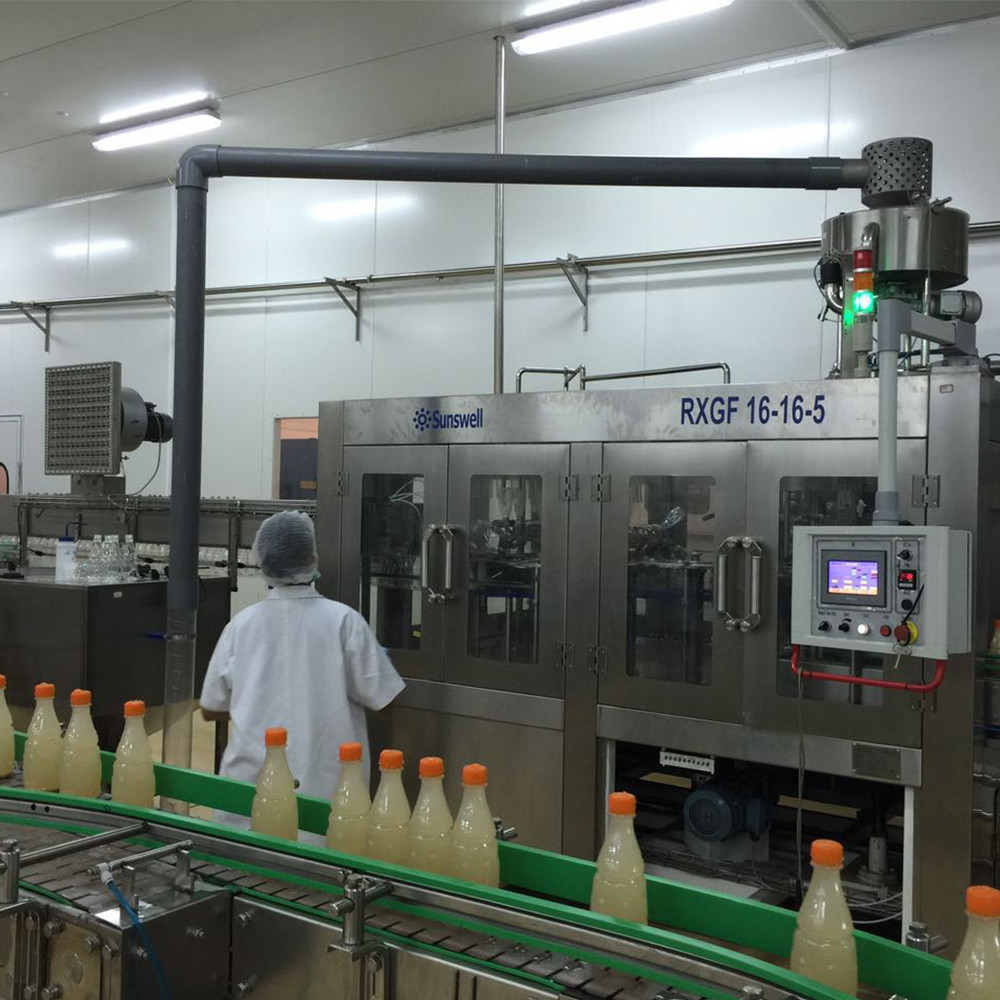

    Advanced Technology Juice Filling Machine Rotary Washer Filler Capper 3 In 1 Monoblock 0

    Application :

    Fruit juice, NFC juice,energy drinks, ice tea drinks, coffee beverage,pulp juice , flavored milk , sports beverage drink,ginger

    drink , flavored water drinks. Apple juice ,Orange juice, cherry juice, mango juice ,tomato juice, pineapple juice, guava
    juice,passion fruit drinks ,papaya juice.

    Advanced Technology Juice Filling Machine Rotary Washer Filler Capper 3 In 1 Monoblock 1

    Detailed Image: Equipment structure:

    1. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing
    pump.
    2. Filling system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.
    3. Capping system: Combined with capper, cap sorter and cap falling track.
    4. Driving system: Combined with main motor and gears.
    5. Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates.
    6. Electrical controlling system: this part is frequency inverted, PLC controlled and touch screen operated.



    ------------------------Bottle infeed----------------------------------Discharge Starwheel--------------------

    Advanced Technology Juice Filling Machine Rotary Washer Filler Capper 3 In 1 Monoblock 2Advanced Technology Juice Filling Machine Rotary Washer Filler Capper 3 In 1 Monoblock 3

    -----------------------------------Rinser---------------------------------------------------------------------Filler-----------------------

    Advanced Technology Juice Filling Machine Rotary Washer Filler Capper 3 In 1 Monoblock 4Advanced Technology Juice Filling Machine Rotary Washer Filler Capper 3 In 1 Monoblock 5

    --------------------------------Capper-----------------------------------------------------------------Capper-------------------------------

    Advanced Technology Juice Filling Machine Rotary Washer Filler Capper 3 In 1 Monoblock 6Advanced Technology Juice Filling Machine Rotary Washer Filler Capper 3 In 1 Monoblock 7

    Main components configuration:
    1. Material of filling valve: Stainless steel 316L available
    2. Material of rotary tray and machine platform of rinser and filler: Stainless steel 304.
    3. Main motor: ABB/SEW (Germany)
    4. Sliding bearing: Igus (Germany)
    5. Frequency inverter: MITSUBISHI (Japan)
    6. Touch screen: DIGITAL (Japan).
    7. PLC: MITSUBISH (Japan)
    8. Pneumatic components: FESTO (Germany)
    9. Seals: Busak+Shamban (USA)
    10. Photocell switch: BANER (USA).
    11. Proximity switch: TURCK (Germany).
