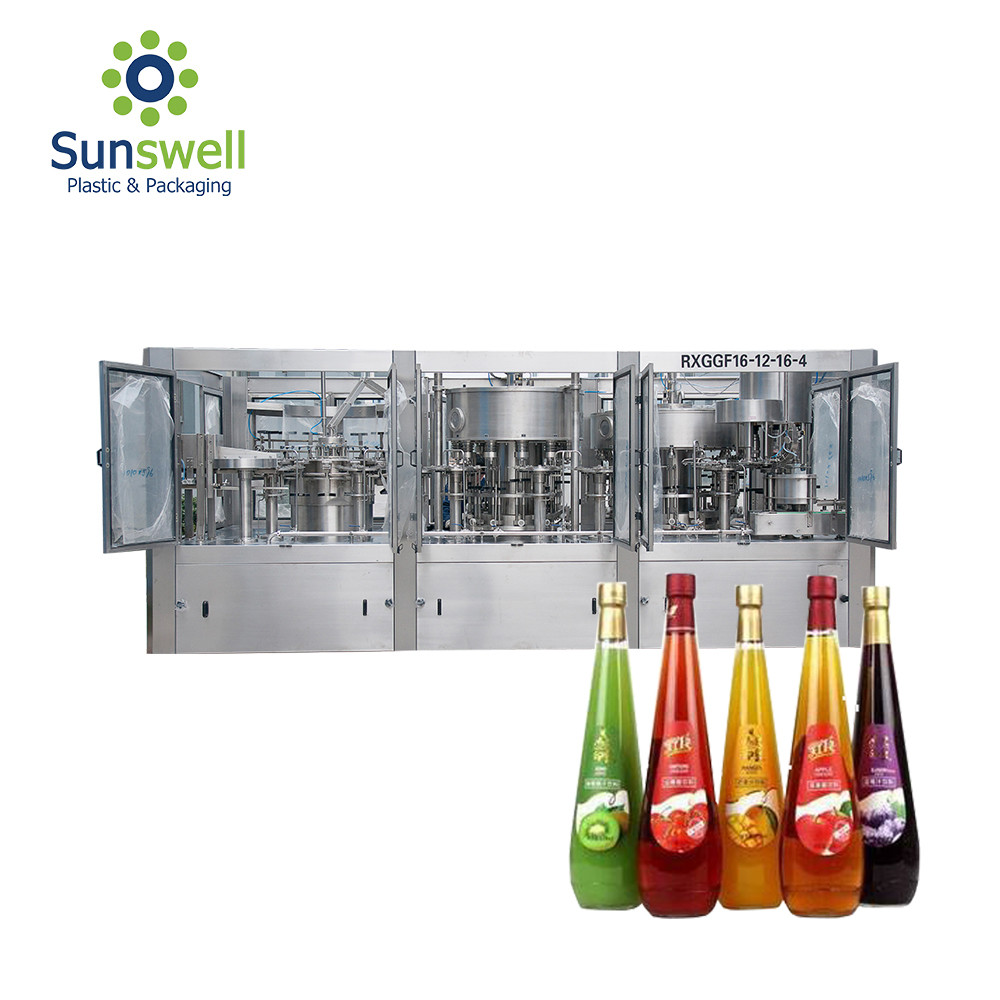

Sus Automatic Small Scale Juice Processing Machine Package Production Line

Sus Automatic Small Scale Juice Processing Machine Package Production Line

    • Sus Automatic Small Scale Juice Processing Machine Package Production Line
    • Sus Automatic Small Scale Juice Processing Machine Package Production Line
  • Sus Automatic Small Scale Juice Processing Machine Package Production Line

    Product Details:

    Place of Origin: China
    Brand Name: Sunswell
    Certification: CE,ISO,SGS
    Model Number: Depend on capacity

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD 15000 per unit
    Packaging Details: Standard export wooden case
    Delivery Time: 45 days
    Payment Terms: L/C, T/T
    Supply Ability: 100 units per year
    Contact Now
    Detailed Product Description
    Filling Material: Juice/Tea/Milk Etc. Function: Washing/filling/capping
    Material: Stainless Steel,SUS304/SUS 316L Packaging Type: Bottles,Cans
    Warranty: 12 Months After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Installation
    High Light:

    automatic filling machine

    ,

    juice filling machines



    Application :

    Fruit juice, NFC juice,energy drinks, ice tea drinks, coffee beverage,pulp juice , flavored milk , sports beverage drink,ginger

    drink , flavored water drinks. Apple juice ,Orange juice, cherry juice, mango juice ,tomato juice, pineapple juice, guava
    juice,passion fruit drinks ,papaya juice.

    Sus Automatic Small Scale Juice Processing Machine Package Production Line 0

    Products Description:

    The machine is mainly used for washing/filling/capping PET bottle juice, tea drinks and all kinds of energy drink for hot filling. Only need to change a few spare parts, that can suitable for filling pure water and mineral water.



    Machine frame:

    The machine frame is a welded structure of high quality carbon steel with the surface anti-rust treated and coated.

    The machine frame is wrapped with stainless steel sheet (SUS304) .

    Driving system of the 3-in-1 Unit is positioned under the machine table. One main motor provides driving power via gear transmission.

    The gear transmission system is an interleaved arrangement of steel gears and nylon gears.

    The output shaft of the main motor is equipped overload protection to secure machine safety..



    Main components configuration:
    1. Material of filling valve: Stainless steel 316L available
    2. Material of rotary tray and machine platform of rinser and filler: Stainless steel 304.
    3. Main motor: ABB/SEW (Germany)
    4. Sliding bearing: Igus (Germany)
    5. Frequency inverter: MITSUBISHI (Japan)
    6. Touch screen: DIGITAL (Japan).
    7. PLC: MITSUBISH (Japan)
    8. Pneumatic components: FESTO (Germany)
    9. Seals: Busak+Shamban (USA)
    10. Photocell switch: BANER (USA).
    11. Proximity switch: TURCK (Germany).

    Detailed Image: Equipment structure:

    1. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing
    pump.

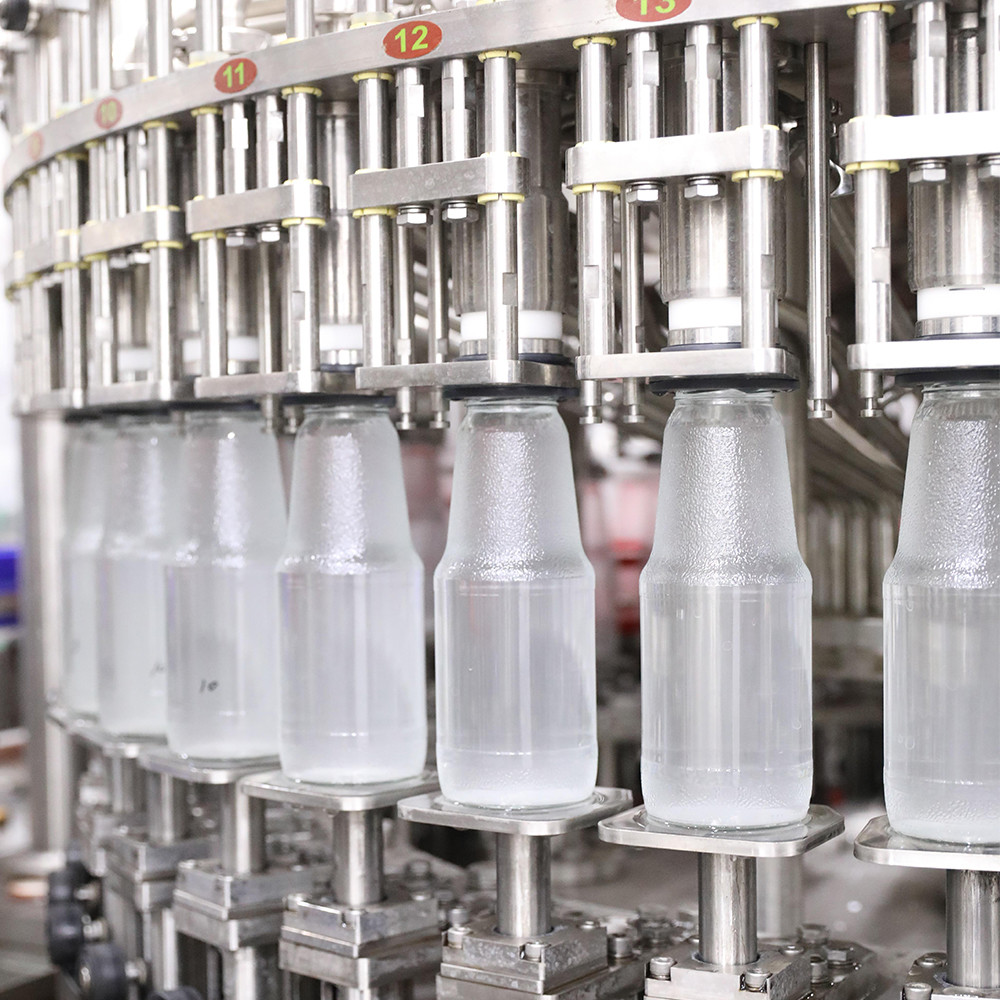

    2. Filling system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.
    3. Capping system: Combined with capper, cap sorter and cap falling track.
    4. Driving system: Combined with main motor and gears.
    5. Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates.
    6. Electrical controlling system: this part is frequency inverted, PLC controlled and touch screen operated.



    ------------------------Bottle infeed----------------------------------Discharge Starwheel--------------------

    Sus Automatic Small Scale Juice Processing Machine Package Production Line 1Sus Automatic Small Scale Juice Processing Machine Package Production Line 2

    -----------------------------------Rinser---------------------------------------------------------------------Filler-----------------------

    Sus Automatic Small Scale Juice Processing Machine Package Production Line 3Sus Automatic Small Scale Juice Processing Machine Package Production Line 4

    --------------------------------Capper-----------------------------------------------------------------Capper-------------------------------

    Sus Automatic Small Scale Juice Processing Machine Package Production Line 5Sus Automatic Small Scale Juice Processing Machine Package Production Line 6
