1. Rinsing empty bottle, filling, and capping functions are integrated in one system, fully automatic synchronized working.Bottle travels on neck to neck from in-feed till out-feed resulting scratch free movement of bottle.
2. Pressure or vacuum filling nozzles deliver fast, efficient, and accurate dispensing with minimal dripping and leakage.
3. No Bottle No Filling, no caps no capping, no caps auto stops.When bottle jam auto stop, machine accident auto stop.Open the window when machine running, machine auto paused.Heavy duty stainless steel filling pump & rinsing pump.Food grade 316L or 304stainless steel contact parts, smooth & fine Polish, no dead angles.
This rinsing filling capping machinery is specially designed for whiskey wine liquor vodka filling production line requires focus on maximum output and efficiency, with commitment to hygiene, beverage safety and cost optimization.
With over 10 years of experience in designing and implementing customized complete PET and glass bottle filling line solutions for alcoholic industry, sunswell can help you reach your production targets from bottle blowing, risning, filling, capping, corking ,labeling, packing, and palletizing up to and including inspection.

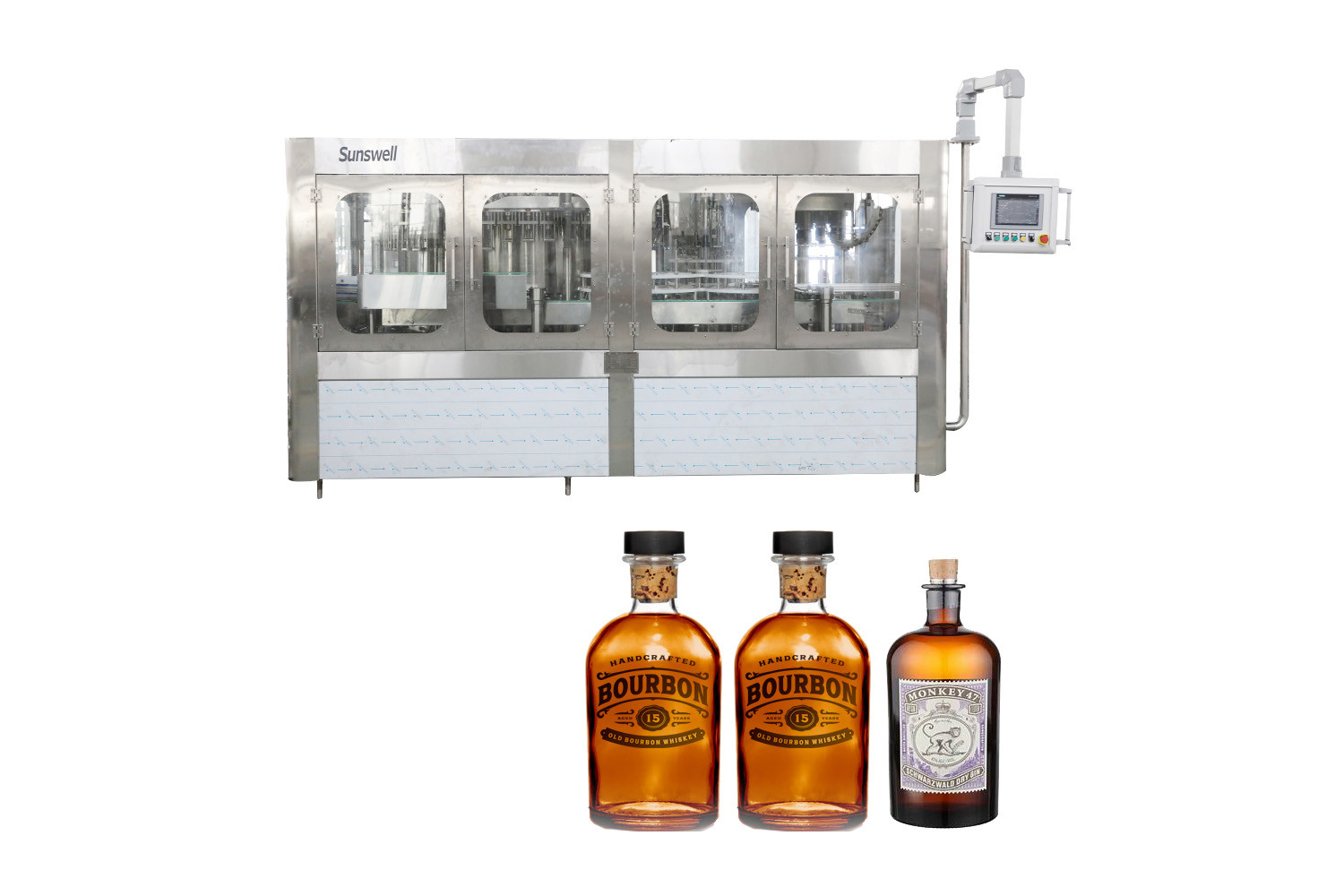

Alcoholic Filling Machine
The alcoholic drink filling machine is consisted of ringsing-filling-caping all together. XGF Alcoholic filling machine adpots the suspension design. It allows the machine to fill different type of the bottles. It is normally used as drinking water filling machine. However, it can also be used for fill PET bottle with flow meter or weight filling technology.
1. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing pump. 2. Filling system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder. 3. Capping system: Combined with capper, cap sorter and cap falling track. 4. Driving system: Combined with main motor and gears. 5. Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates. 6. Electrical controlling system: this part is frequency inverted, PLC controlled and touch screen operated.
Birdview of Alcoholic drink filling system
Alcoholic drink filling system filler
Birdview of Alcoholic drink filling system ropp capper
Alcoholic drink filling system croker
Alcoholic drink filling system liquid lever regulator
