Air Conveyor Monobloc Carbonated Filling Machine With CSD System

Basic Information

Place of Origin:	China
Brand Name:	Sunswell
Certification:	CE, ISO, SGS, UL
Model Number:	DCGF60-60-15

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Seaworthy Wooden Case
Delivery Time:	30 days
Payment Terms:	T/T, L/C
Supply Ability:	100 sets per year

Get Best Price Contact Now

Product Name:	Carbonated Filling Line	Filling Material:	Carbonated Water/beverage/juice
Suitable Bottle:	50-110	Driven Type::	Electric
After-sales Service Provided:	Engineers
Highlight:	monoblocc Carbonated Filling Machine , CSD system Carbonated Filling Machine , CSD carbonated beverage filling machine

PET Bottle Soft Drink Carbonated Filling Machine , Rotary Washing Filling Cappi

Product Description

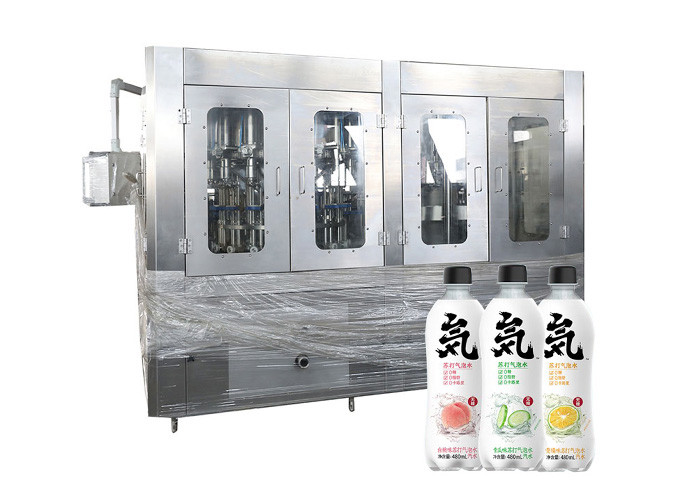

Soft drinks filler 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the
requirement of carbonated soft drinks and soda water, on the basis of introducing, digesting and absorbing advanced technology
from Germany and Italy.

We can also provide turnkey/complete Carbonated Soft Drinks Lines:

Blowing / Filling / Combi / Labelling / Container Treatment & Cleaning / Conveying Systems / Packing / Palletising

1. CSD system
2. Bottle blowing system make PET plastic bottles ( Semi automatic / Fully automatic )
3. Water treatment system purify water (Sand filter,carbon filter,RO/UF ,Ozone sterilizer,UV sterilizer and etc.)
4. Air conveyor for empty bottle loading
5. Rinser-filler-capper 3 in 1 monoblock
6. Cap loader
7. Code printer (Ink-jet printer/ laser-jet printer)
8. Labeling machine ( PVC sleelve labeling machine /OPP hot melt glue labeling machine/Self-adhesive labeling machine )
9. End packaging ( PE shrink wrapping machine / Carton packing machine )

Carbonated filling machine Main features:

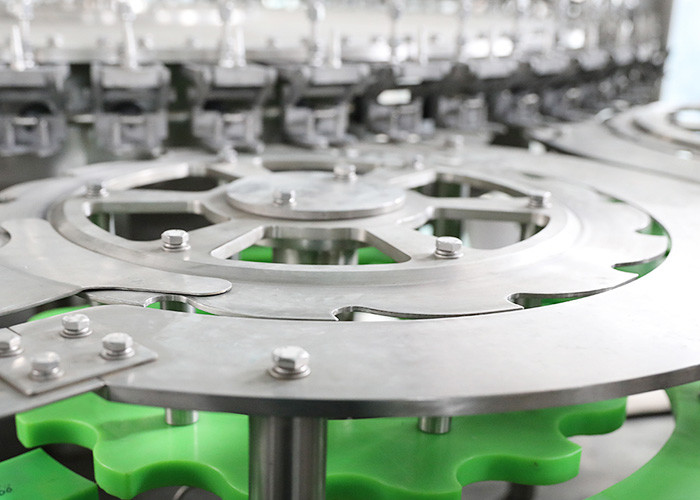

1) Direct connection between air conveyor and in-feeding starwheel to substitute
In-feeding screw and conveyor to ease the process of bottle-size-changing

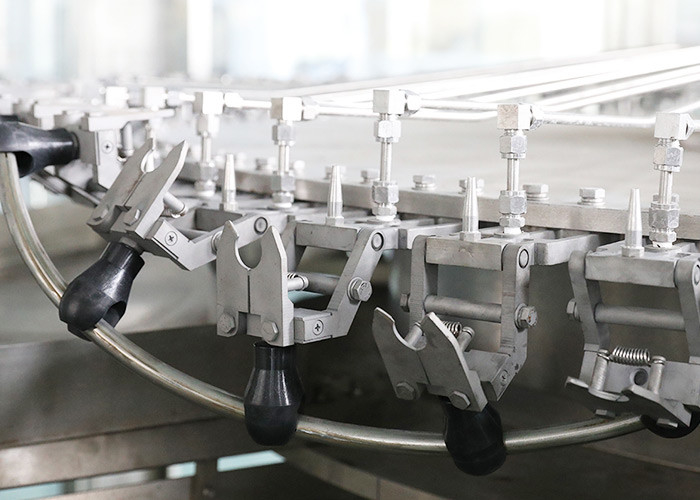

2) Neck-hanging technology is applied in bottle transportation. No contact to screw
Part of the bottle to prevent second pollution, without equipment height
Adjustment, suitable for wider scope of bottle sizes and quicker bottle changing

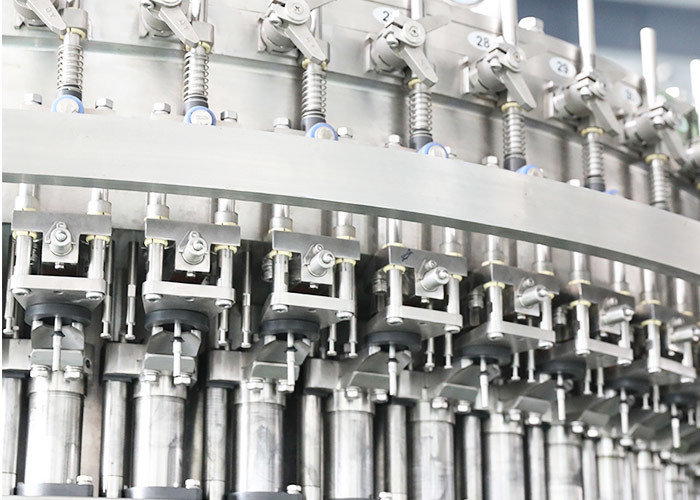

3) Filling machine valve-opening device is driven by cylinder, with accurate action, rapid flow,
High filling precision, nice liquid level. CIP system and controlling program are
Equipped

Filling line includes:
1, Water treatment
2, Blow molding machine
3, Bottle unscrambler
4, Air conveyor
5, Rinsing-filling-capping 3-in-1 monoblock
6, Mixer (Carbonater)
7, Bottle Warmer
8, Sleeve / OPP labeler
9, Air dryer, visual inspection, ink jet printer
10, Shrink wrapper / wrap-round case packer
11, Palletizer

Technical Parameters:
Number of Filling Valves	24, 32, 40, 50, 60, 72, 84
Filling Speed	5, 000-40, 000BPH (500ml)
Type of Bottles	PET Bottles of various shapes
Bottle Height	150-320(mm)
Bottle Diameter	φ 50-110(mm)
Filling Temperature	Ambient temperature
Filling Principle	Isobaric Filling
Filling Product	Carbonated soft drinks, Soda Water, Isotonic Drinks, etc.

Air Conveyor Monobloc Carbonated Filling Machine With CSD System 0

Air Conveyor Monobloc Carbonated Filling Machine With CSD System 1

Air Conveyor Monobloc Carbonated Filling Machine With CSD System 2
