Monoblock 3-In-1 Juice Filling Machine 15000BPH Automatic Pet Bottle For Fruit Basic Info.
Attribute (E. G.: Size):Value (E. G.: 12 Inches)
Production Capacity:15, 000bph (500ml)

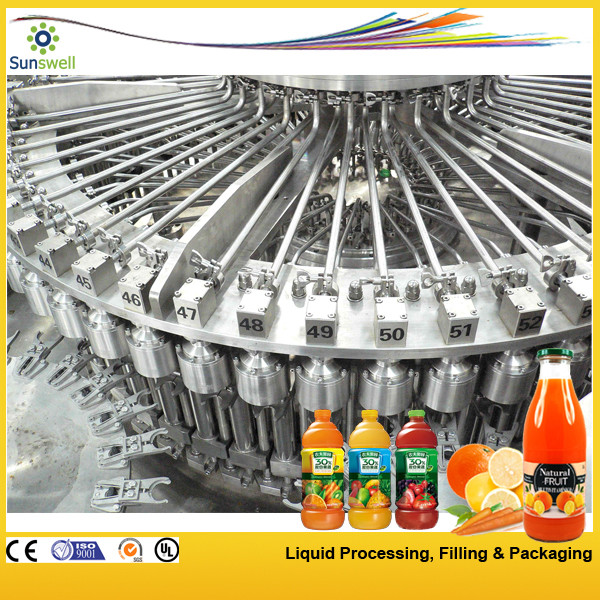

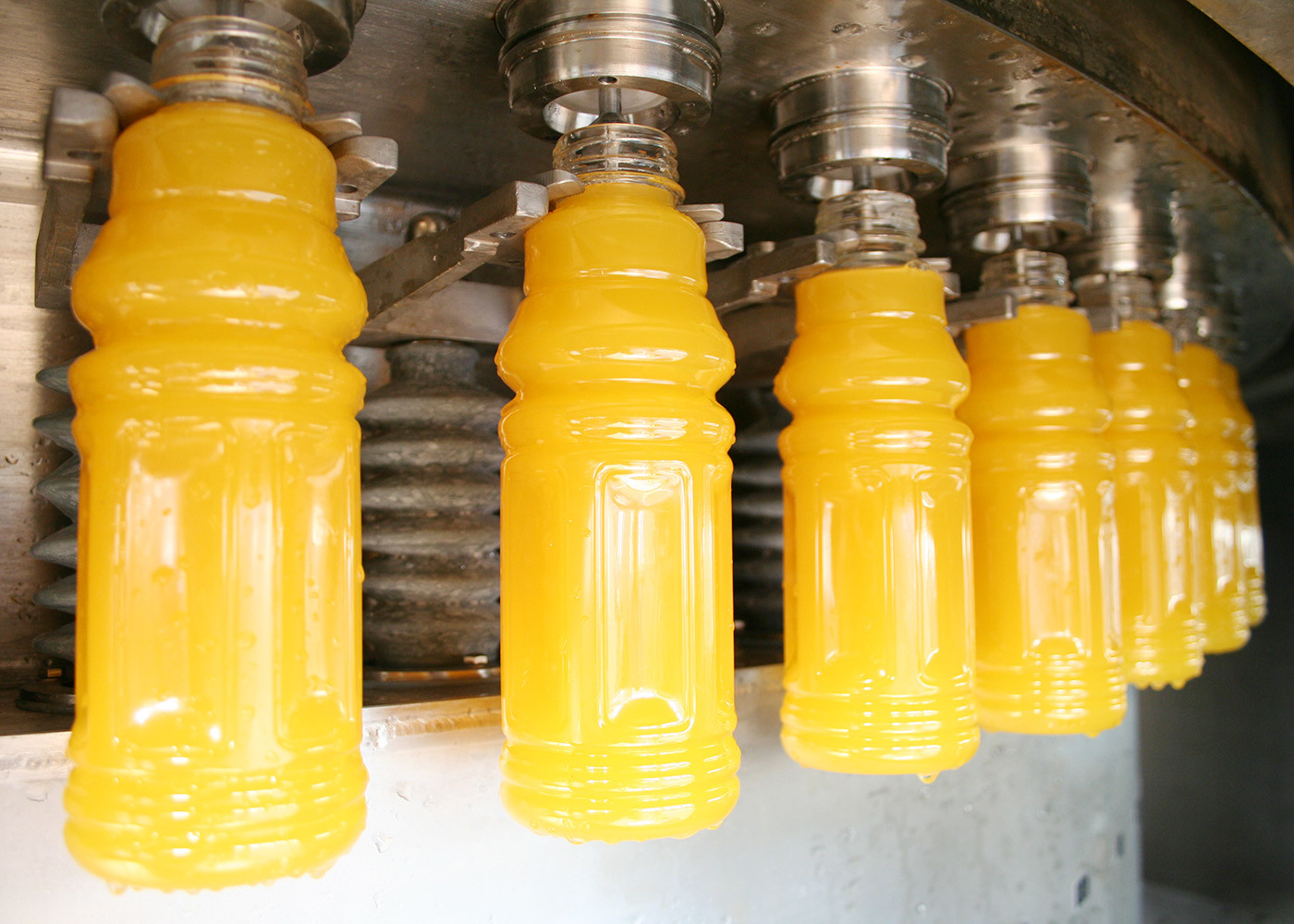

3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of non-carbonated energy drinks, juice, tea, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy. Main features Rinser Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° Along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high. Rinsing machine adopts Sunswell original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable. Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° Angle ensures to wash all side of the bottle, and can save the water. Filler The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ± 2mm. The filling valve material is SUS304 The filling system has liquid level automatic control. Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it start to fill. Bottle is conveying by the wheel in the filling part. The juice or other hot beverage can be backflow by return tank to control filling temperature. Capper Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. Our screw capping has following feature. Equipment structure Base Rotary rinser Rotary filler Rotary capper Bottle infeed and outfeed system Control Main configuration Touch screen: THINGET or Weinview PLC program controller: Mitsubishi or Omron Inverter: Mitsubishi or Omron Photoelectrical controller: Omron Proximity switch: Omron Other electrical components: Schneider Pneumatic component: Airtac Water pump: Nanfang Main motor: Siemens Bearing: Harbin Technical Parameters Working Position: Rinsing 40, filling 40, capping 10 Rated Capacity: 15, 000BPH (500ml) Bottle Size: Diameter 50-96mm; Height 165-310mm Air Supply Pressure: 0.7MPa Air Consumption: 0.8M3/min Rinsing Water Pressure: 0.2-0.25 MPa Consumption of Rinsing Water: 3T/hr Way of Filling: Gravity Filling Main Motor Power: 5.5KW Installed Power: 9KW Dimension: 4300× 2930× 2750 (L× W× H) Weight: 7800Kg
