Place of Origin: | China |
---|---|
Brand Name: | PET ALL |
Certification: | CE&ISO |
Model Number: | RXGF |
Minimum Order Quantity: | 1 |
Packaging Details: | Wooden packing |
Delivery Time: | 7 days |
Payment Terms: | T/T, LC,WESTERN UNION |
Supply Ability: | 100 sets per year |
Voltage: | 380V | Power: | 50HZ |
---|---|---|---|
Type: | Filling Machine | Condition: | New |
Application: | Beverage | Driven Type: | Electric |
High Light: | automatic filling machine,juice packaging machine |

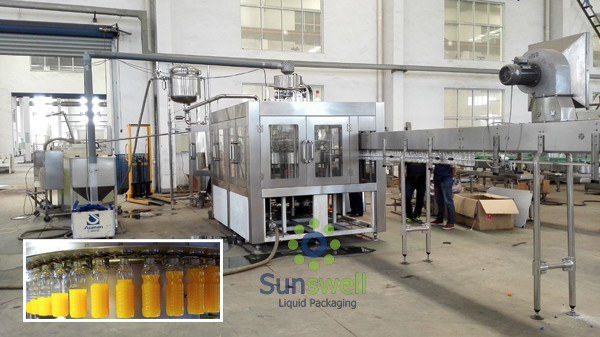

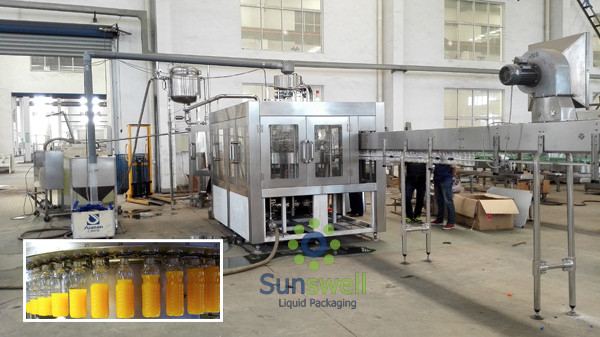

Liquid Cold Milk Tea Filling Machine Electric with 380V 50HZ
PET bottled automatic hot filling Juice Filling Machine for Apple, Orange Juice Plant Introduction:
Hot filling machine is the standard 3-in-1 monoblock. But to the special production condition, another sanitizer rinsing could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics( such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.
PET bottled automatic hot filling Juice Filling Machine for Apple, Orange Juice Plant Technical features:
1, Full filling is to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.
2, Reasonable structured storage hopper and material supply system keep the material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted.
3, The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.
4, Sanitary filling head system is of umbrella structure, high filling speed.
5, Perfect filling temperature control system.
6, Return tank system has the function of supplying the material automatically.
7, Perfect CIP system
PET bottled automatic hot filling Juice Filling Machine for Apple, Orange Juice Plant The complete line includes:
Water treatment system;
Beverage pretreatmentsystem;
Blow molding system;
Filling system;
Downstream packaging system: Labeling machine, packing machine, palletizing system, etc.
Technical Parameters: | |
Number of Filling Valves | 12,16,24, 32, 40, 50, 60, 72, |
Filling Speed | 2, 000-30, 000BPH (500ml) |
Type of Bottles | PET Bottles of various shapes |
Bottle Height | 150-320(mm) |
Bottle Diameter | φ 50-110(mm) |
Filling Temperature | Hot Filling |
Filling Principle | Gravity Filling |
Filling Product | Apple juice, orange juice, flavored milk, tea drinks, energy drinks, vitamin drinks and etc. |
