Place of Origin: | China |
---|---|
Brand Name: | PET ALL |
Certification: | CE&ISO |
Model Number: | CGF |
Minimum Order Quantity: | 1 |
Price: | US $ 8,000 - 80,000 / Set |
Packaging Details: | Wooden packing |
Delivery Time: | 7 days |
Payment Terms: | T/T, LC,WESTERN UNION |
Supply Ability: | 100 sets per year |
Type: | Filling Machine | Condition: | New |
---|---|---|---|
Application: | Hot Tea/juice | Filling Principle: | Gravity Filling |
Suitable Bottle Volume: | 330-2250ml | Filling Tolerance: | ±2% |
Highlight: | juice filling machines,juice packaging machine |

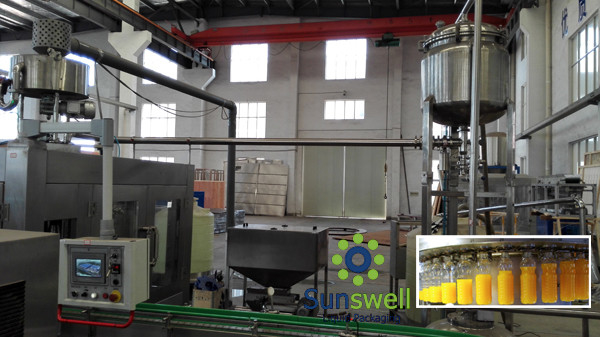

Juice Syrup Hot Filling Machine Juce Packing PET Bottles , 200ml - 2000ml
CE Reference No:OSE-14-0427/01
1.General Description
The machine is mainly used for washing/filling/capping PET bottle juice, tea drinks and all kinds of energy drink for hot filling. Only need to change a few spare parts, that can suitable for filling pure water and mineral water.
2.Deatails of each equipment
1) Bottle Infeed 2) Discharge Starwheel
3) Rinser 4) Filler
5) Capper 6) Filling Machine
3.Technical parameter
Model | CGF12125 | CGF18186 | CGF24248 | CGF323210 | CGF404012 | CGF505012 | CGF606015 | CGF808020 |
washing, filling and capping heads | 12-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-12 | 60-60-15 | 80-80-20 |
Production capacity (600ml)(B/H) |
2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 | 25000-30000 | 35000-40000 |
suitable bottle specification (mm) |
φ=50-110=170 330-2250ml | |||||||
Washing pressure (kg/cm 2 ) |
2-3 | |||||||
Motor power (kw) |
Main motor 2.2kw |
Main motor 2.2kw |
Main motor 3kw |
Main motor 5.5kw |
Main motor 7.5kw |
Main motor 11kw |
Main motor 15kw |
Main motor 19kw |
Overall dimensions (mm) | 2400×1650 ×2500 |
2600×1920 ×2550 |
3100×2300 ×2800 |
3800×2800 ×2900 |
4600×2800 ×2900 |
5450×3300 ×2900 |
6500×4500 ×2900 |
7680×6640 ×2850 |
Weight (kg) |
2500 | 3500 | 4500 | 6500 | 8500 | 9800 | 12800 | 150 |
4.Our Services
We are a manufacture. we have been certificated by the famous cercification authority.
we have been in beverage packing more than 10 years.
we can help you to start a new company in beverage making.
we make all of our customers be satisfied with the machine and our service.
we will install the machine for you ,and train your employees to use the machine well.
we will provide one year warranty with free spare parts.
(1) The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
3.If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
(2) Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
2. We can offer some professional suggestion when you begin this project, such as draw the factory layout for you,analyze the source water report.
(3) After-sales service
1.We will provide the bill of load on time to make sure you can get the machine quickly.
2.When you finish the Preparation conditions ,our engineer will go to your factory to install the machine ,and give you the operating manual ,and train your employee until they can operate the machine well.
3. We ask feedback from our customer and offer help when the production line have been used for some time!
4.We provide one year warranty with spare parts free.
